Sony HCD-DZ500F - 2 General

6
HCD-DZ500F
SECTION 2
GENERAL
This section is extracted
from instruction manual.
For more information, refer to the pages indicated in parentheses.

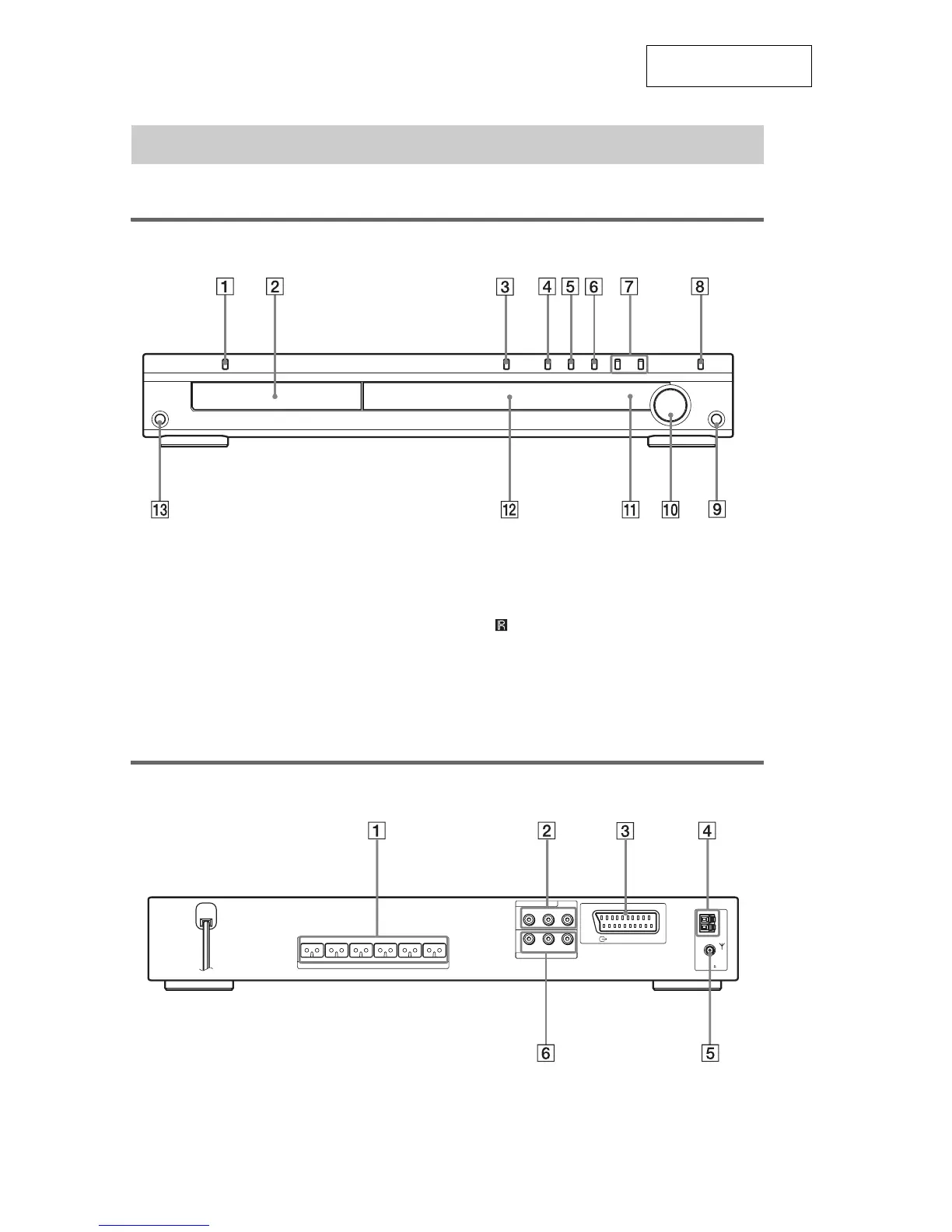

Front panel
A "/1 (on/standby) (30, 34, 75)
B Disc tray (34)
C A (open/close) (34, 75)
D H (play) (34)
E X (pause) (34)
F x (stop) (34, 75)
G ./> (34)
H FUNCTION (34)
I PHONES jack (34)
J VOLUME (34)
K (remote sensor) (13)
L Front panel display (94)
M AUDIO IN jack
Index to Parts and Controls
Rear panel
A SPEAKER jacks (15)
B COMPONENT VIDEO OUT jacks (24)
C EURO AV T OUTPUT (TO TV) jacks
(24)
D AM terminal (23)
E FM 75Ω COAXIAL jack (23)
F SAT VIDEO/AUDIO IN jacks (26, 28)
SPEAKER
COAXIAL
FM
75
Y
RAUDIO IN VIDEO INL
P B /C B P R /C R
DVD ONLY
SAT
COMPONENT VIDEO OUT
EURO AV
OUTPUT(TO TV)
AM
FRONT R FRONT L SURR R SURR L CENTER WOOFER
