5
HCD-DZ500F
• SERVICE POSITION (DMB10 BOARD)
When servicing side B of the DMB10 board
Remove the DMB10 board from bracket.
(Refer to DISASSEMBLY 3-6. (page 11)).

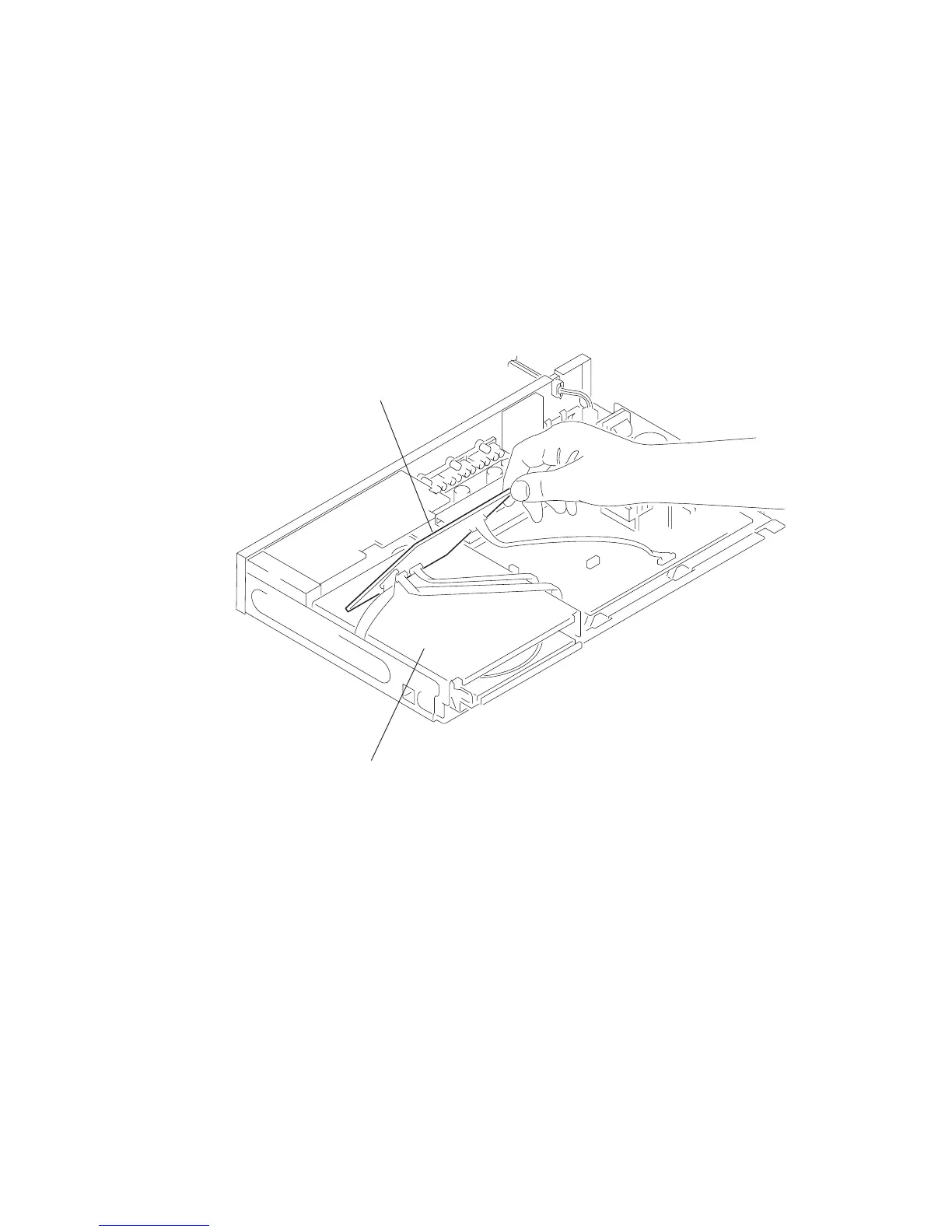

Set the DMB10 board facing the side B upward as shown.
Connect the cable and make the repair work.
DMB10 board (side B)
DMB bracket
To Next Page
