Sony HCD-DZ500F - 6-3. CHASSIS SECTION

63
HCD-DZ500F
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-077-331-01 +BV3 (3-CR)
103 3-077-331-21 +BV3 (3-CR)
✩ 104 A-1108-644-A DMB10 BOARD, COMPLETE
105 4-217-350-11 STOPPER, CORD
0 106 1-828-528-11 CORD, POWER
107 A-1121-242-A MAIN BOARD, COMPLETE (EXCEPT RU)
107 A-1121-387-A MAIN BOARD, COMPLETE (RU)
108 4-254-954-01 SHEET (DMB), RADIATION
109 4-244-969-01 FOOT
110 1-830-464-11 WIRE (FLAT TYPE) (23 CORE)
* 111 3-233-819-01 BRACKET (PWB)
112 1-830-549-11 WIRE (FLAT TYPE) (5 CORE)
113 1-830-545-11 WIRE (FLAT TYPE) (11 CORE)
114 1-830-548-11 WIRE (FLAT TYPE) (13 CORE)
115 1-830-547-11 WIRE (FLAT TYPE) (7 CORE)
116 1-830-546-11 WIRE (FLAT TYPE) (11 CORE)
117 2-597-972-01 SHEET, RADIATION
118 2-597-972-11 SHEET, RADIATION
0 F901 1-532-506-33 FUSE (T6.3AL/250V)
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3

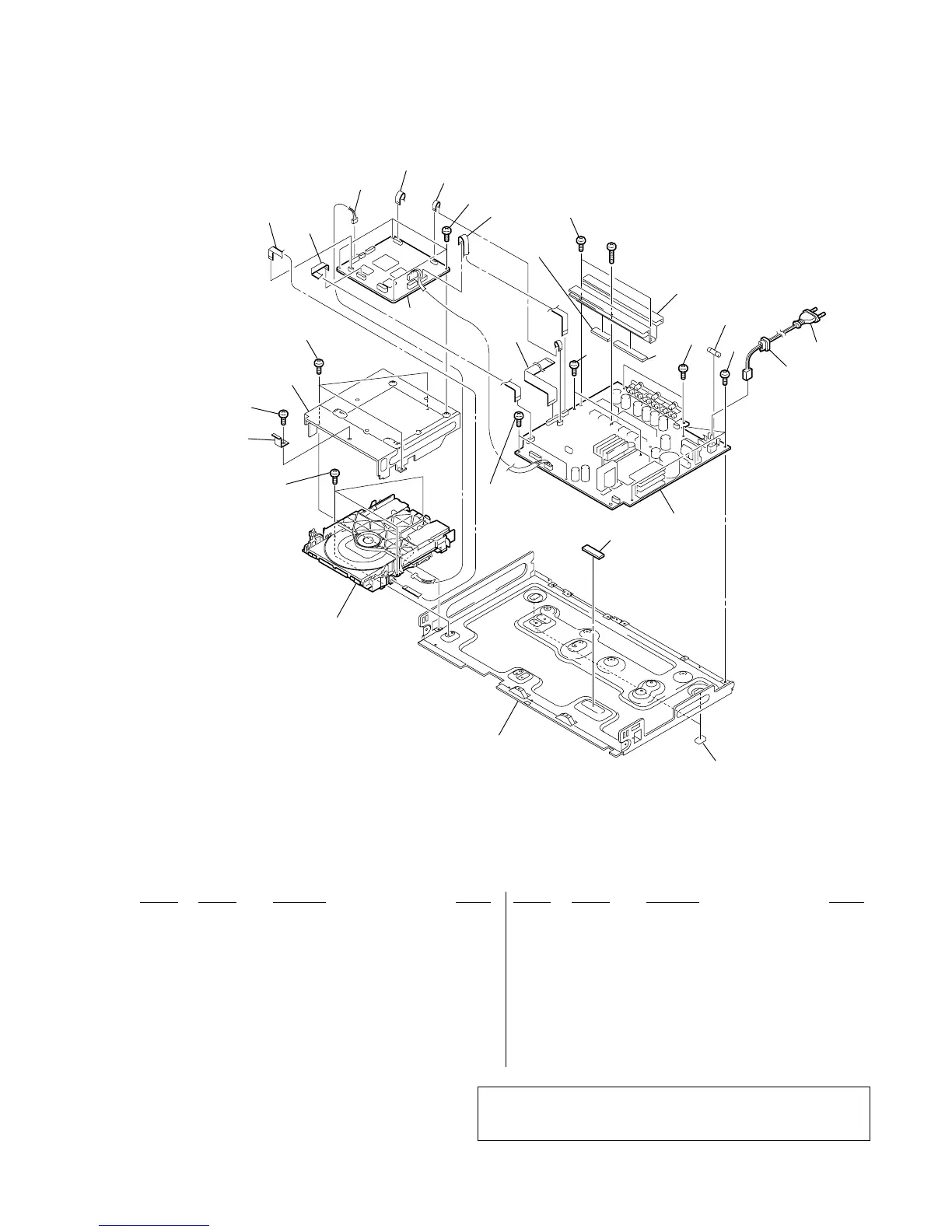

6-3. CHASSIS SECTION
101
101
101
111
103
110
104
112
113
114
115
116
103
101
103
118
103
103
105
107
109
108
106
not supplied
not supplied
not
supplied
not
supplied
F901
#3
DVD mechanism
deck section
117
Ver. 1.2
✩ New part of EEP ROM (IC103) on the DMB10 board cannot be used.
Therefore, if the mounted DMB10 board (A-1108-644-A) is replaced,
exchange new EEP ROM (IC103) with that used before the replacement.
