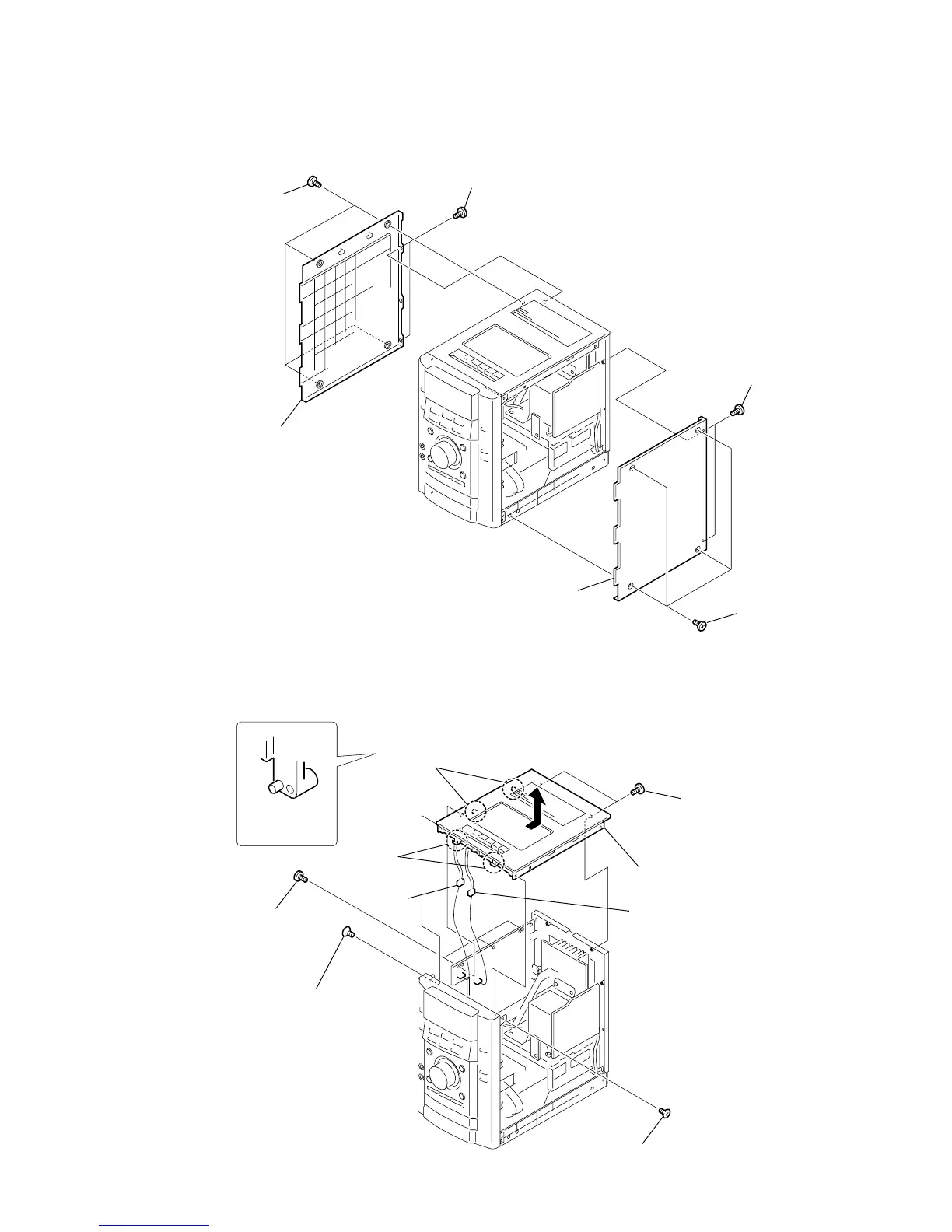

3-2. SIDE PANEL (L) AND SIDE PANEL (R)
3 side panel (R)
6 side panel (L)
5 two screws
(BV3 × 10 )
2 two screws
(BV3 × 10 )
1 four screw
s
(TP3 × 12 )
4 four screws
(TP3 × 12 )
3-3. TOP SECTION
4 two screws
(BV3 × 10 )
9 Remove the top section
in the direction of the arrow.
7 connector
(CNP502)
8 connector
(CNP501)
5 two
claws
6 two
dowels
1 screw
(KTP3 × 10 )
2 screw
(KTP3 × 10 )
3 three screws
(BV3 × 10 )
