HCD-EC50

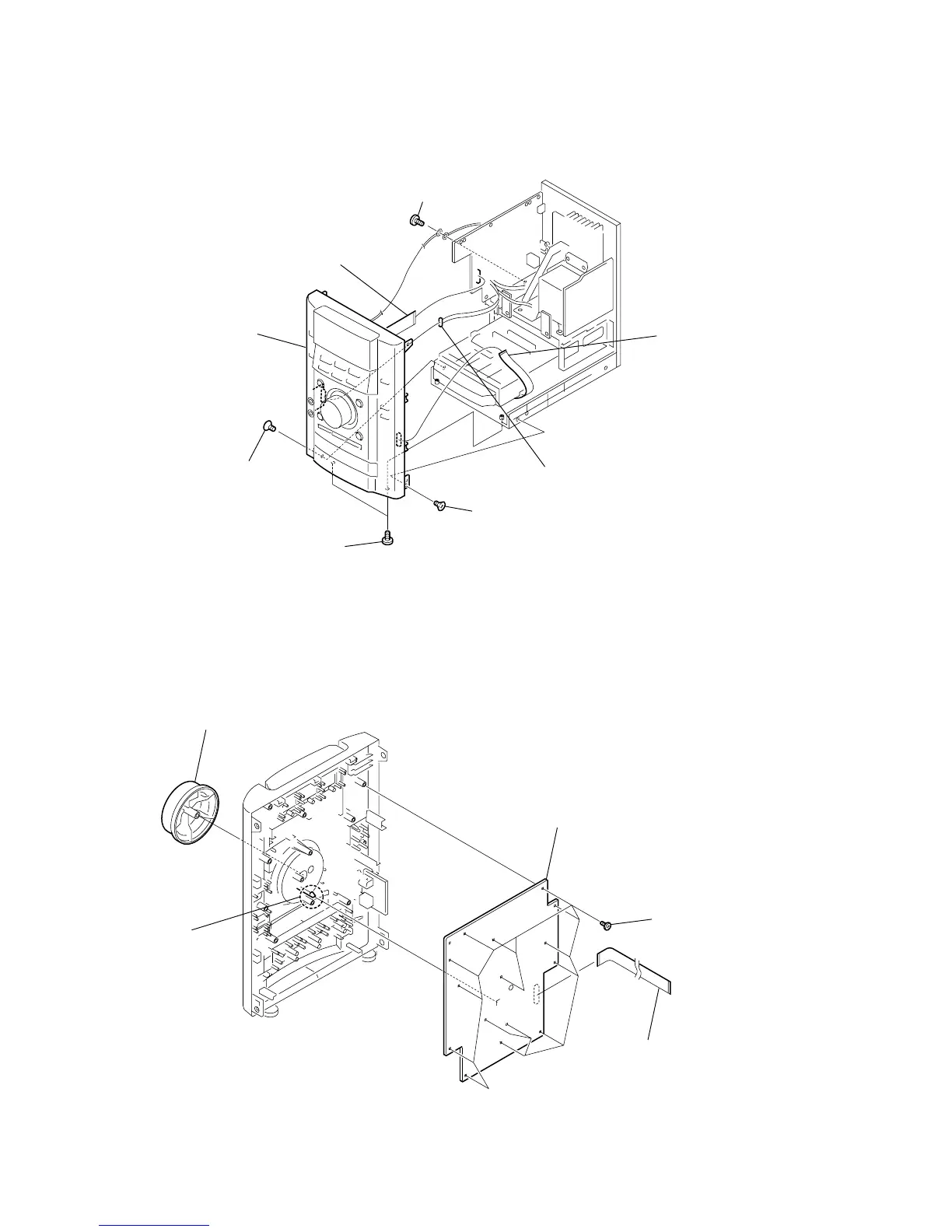

3-4. FRONT PANEL SECTION
5 screw
(KTP3 × 10 )
7 two screws
(BV3 × 10 )
4 screw
(BV3 × 10 )
6 screw
(KTP3 × 10 )
8 front panel section
2 wire (flat type)
27core (CNS111)
3 wire (flat type)
13core (CNS671
)
1 connector
(CNP171)
3-5. PANEL BOARD
5 PANEL board
3 knob (VOL)
4 claw
2 wire (flat type)
27core (CN5701)
1 fifteen screws
(BVTP2.6 × 8 )
