Sony HCD-ECL5 - 2-8. POWER BOARD

HCD-ECL5
11

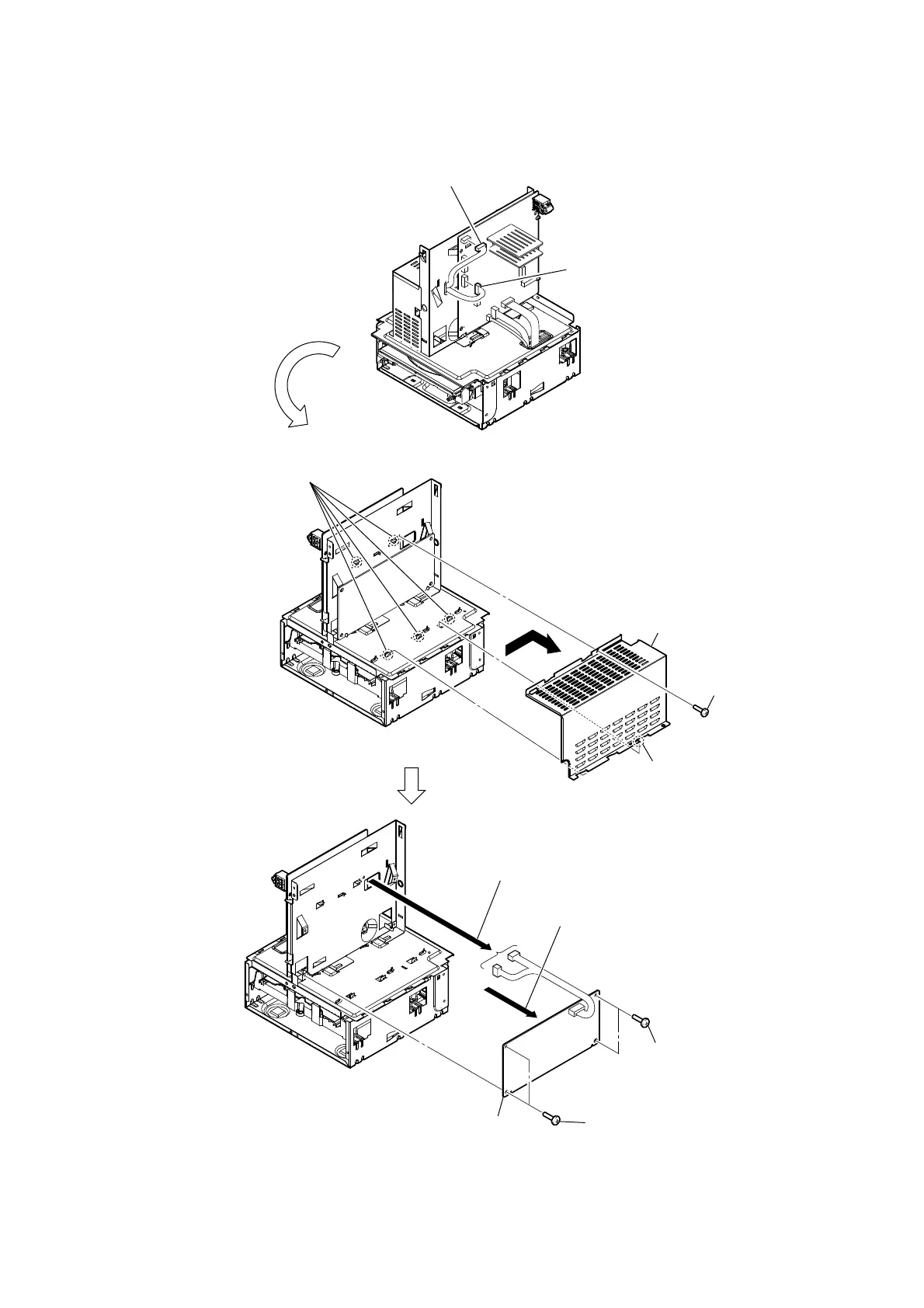

2-8. POWER BOARD
– Rear view –
2 connector
(XP20)
0 power board
9 Draw out the
wires.
8 Remove the power board
in the direction of an arrow.
7 two screws
(silver 3 u 8)
7 two screws
(silver 3 u 8)
1 connector
(XP1)
6 shield cover
5
– Rear view –
4 five claws
4 claw
3 screw
(3 u 6)
