HCD-ECL5
12

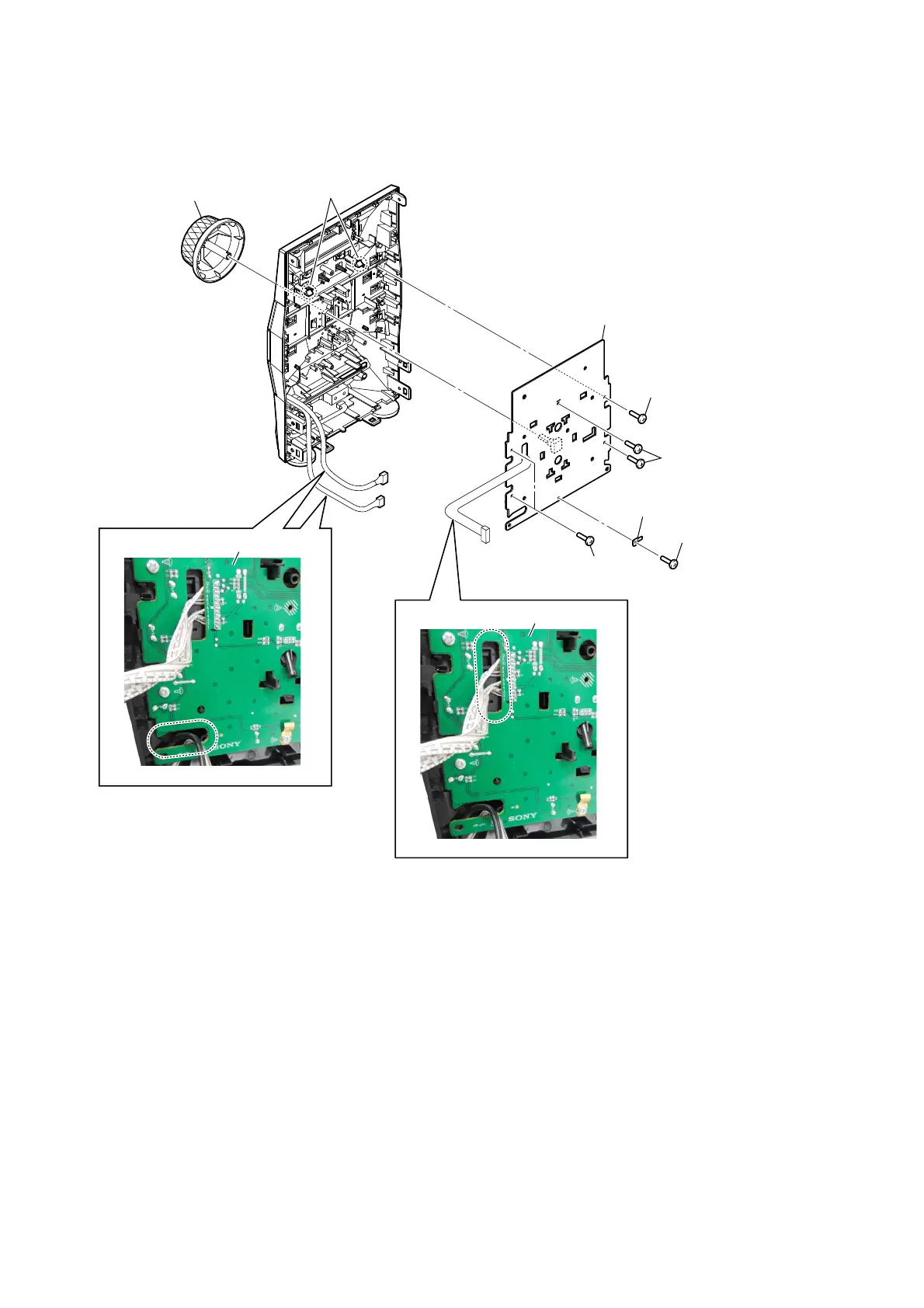

2-9. FRONT BOARD
4 two claws
– Front panel block rear view –
FRONT board
Wire setting
– Front panel block rear view –
FRONT board
Wire setting
– Front panel block rear view –
2 two screws
(silver 3 u 8)
2 two screws
(silver 3 u 8)
3 ground plate
5 FRONT board
1
VOL knob
(black)
2 screw
(silver 3 u 8)
2 screw
(silver 3 u 8)
