Sony HCD-ECL5 - EXPLODED VIEWS; 6-1. COVER SECTION

32
HCD-ECL5
SECTION 6
EXPLODED VIEWS
1 4-475-809-01 RIGHT SIDE COVER
2 4-475-808-01 LEFT SIDE COVER
3 4-475-935-01 REAR SCREW (BLACK 3X8)
4 X-2588-127-1 TOP COVER ASSY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model

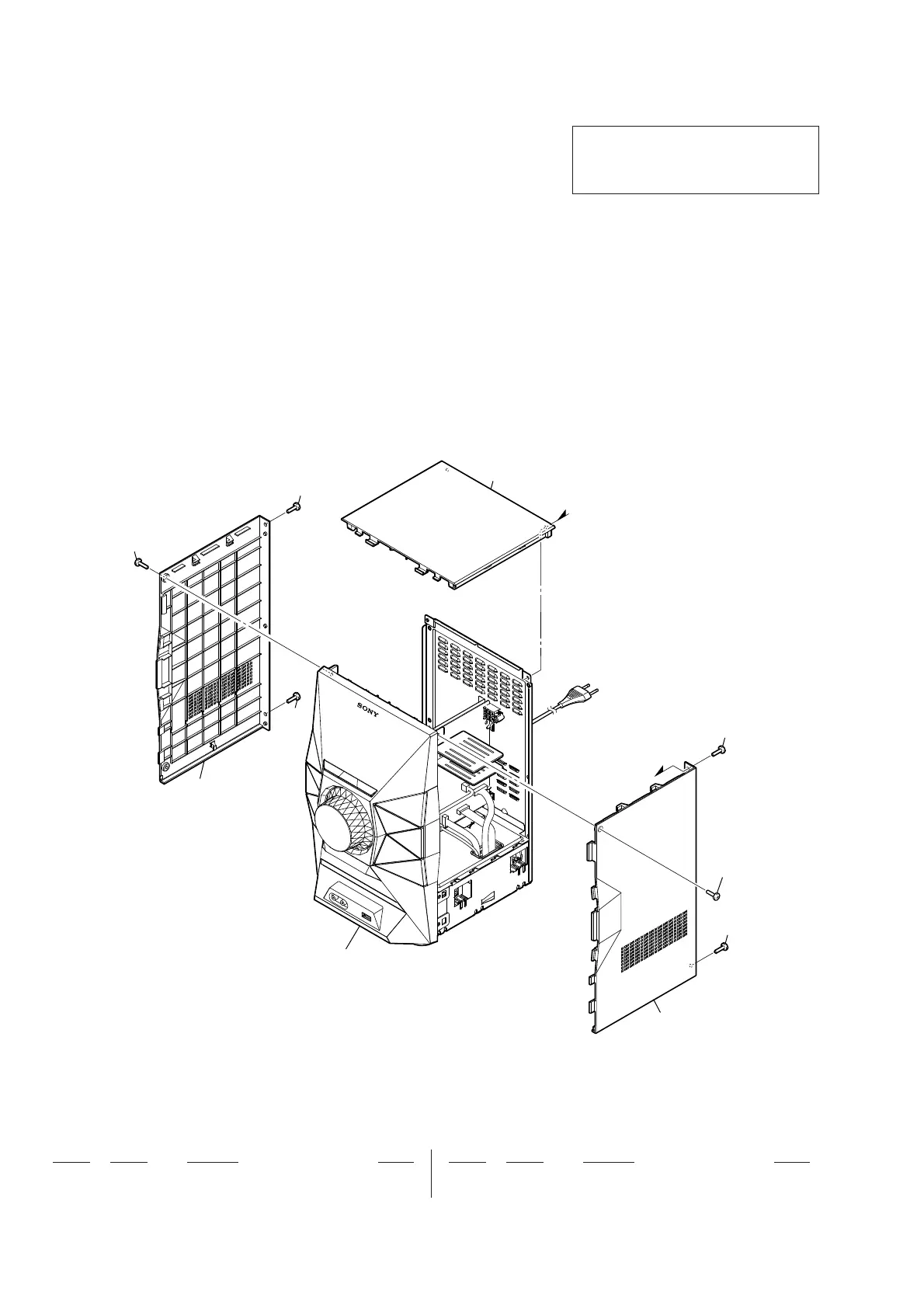

6-1. COVER SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
rear panel section
3
4
3
2
3
3
1
3
3
A
A
