HCD-ECL5
5

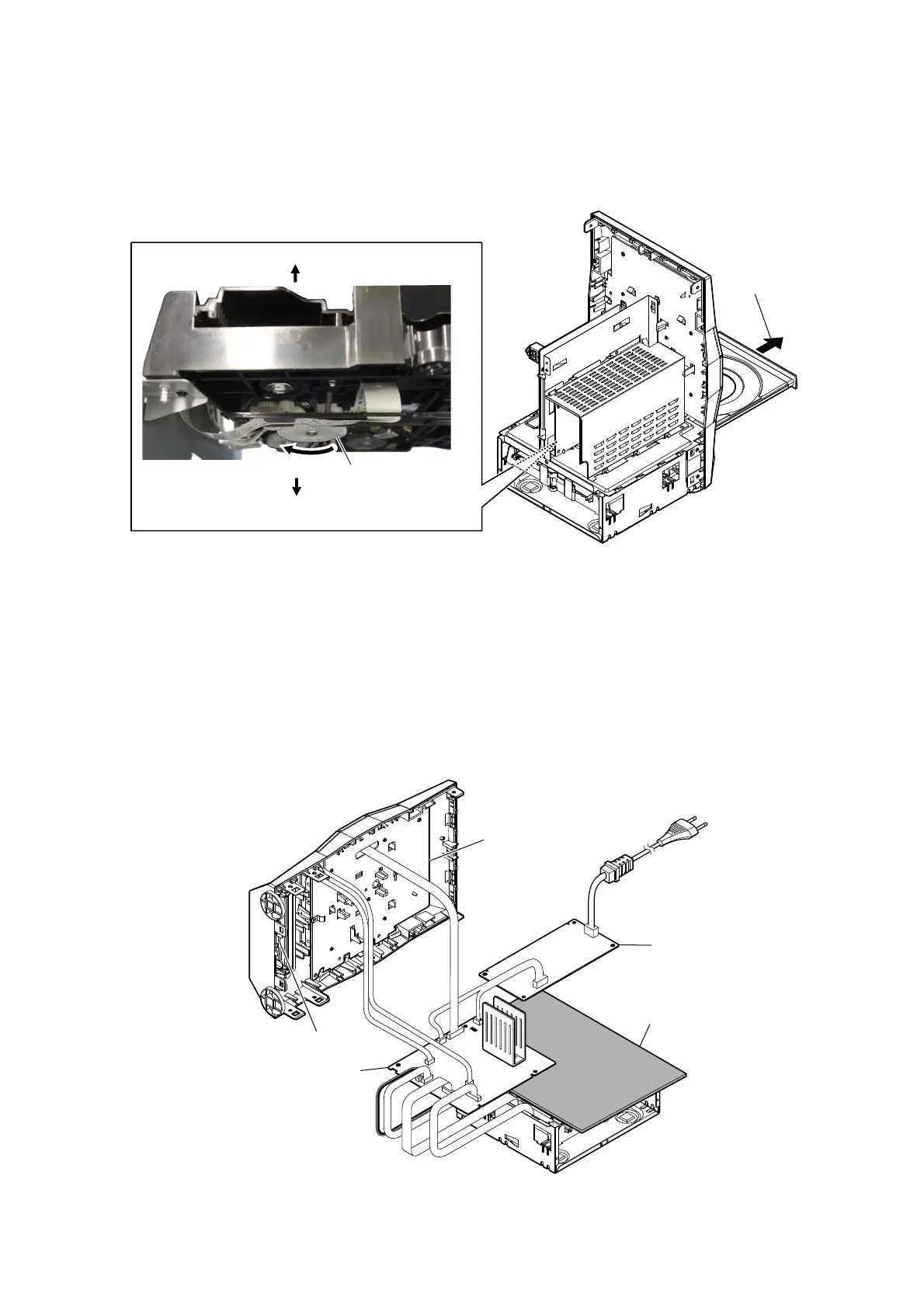

HOW TO EJECT THE DISC WHEN POWER SWITCH TURN OFF
SERVICE POSITION
– Rear view –
2 Turn the traverse gear in
the direction of an arrow.
bottom side
top side
– Rear view –
1 Refer to “SECTION 2. DISASSEMBLY” (page 6), remove the side cover,
the top cover assy and the rear panel block from the unit.
3 Pull out the disc tray.
MAIN board
FRONT board
POWER boar
USB board
insulating sheet
