Sony HCD-EH10 - Disassembly Procedures; Disassembly Flow and Procedures

HCD-EH10
6
Note: Follow the disassembly procedure in the numerical order given.
3-2. REAR CABINET SECTION
• This set can be disassembled in the order shown below.

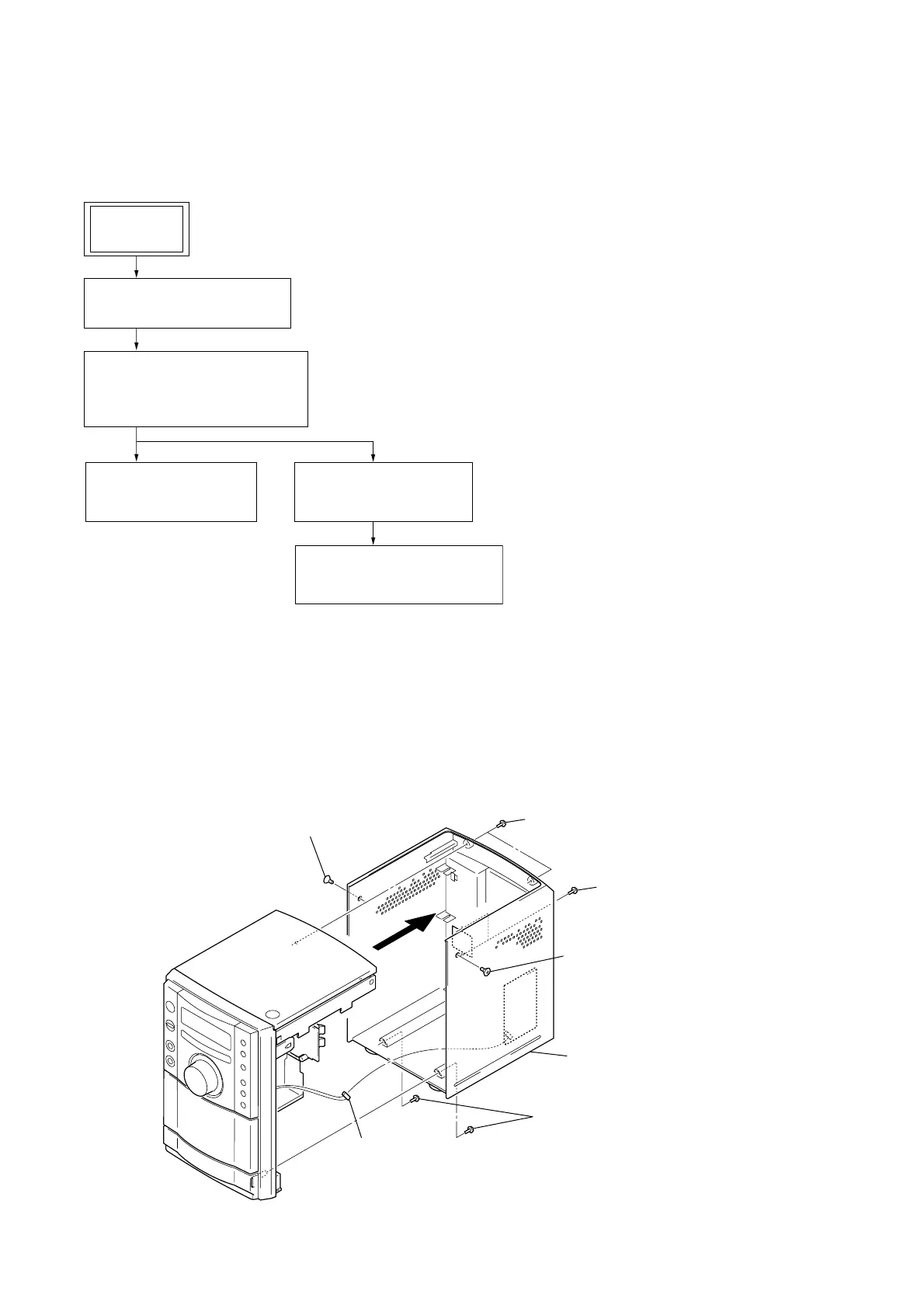

3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
3-2. REAR CABINET SECTION
(Page 6)
3-3. FRONT CABINET SECTION,
TOP CABINET SECTION AND
MAIN BOARD
(Page 7)
3-5. BASE UNIT SECTION
(BU-K8BD83S-WOD)
(Page 8)
3-6. OPTICAL PICK-UP BLOCK
(KSM-213CDP)
(Page 8)
3-4. MECHANICAL DECK
(H-21SB)
(Page 7)
SET
2 screw
(KTP3 × 8)
3
2 screw
(KTP3
× 8)
1 two screws
(BVTP3
× 10)
1 two screws
(BVTP3 × 10)
1 two screws
(BVTP3 × 10)
4 connector
(W002)
5 rear cabinet sectio
n
