Sony HCD-EH10 - Base Unit and Optical Pick-up Removal

HCD-EH10
8

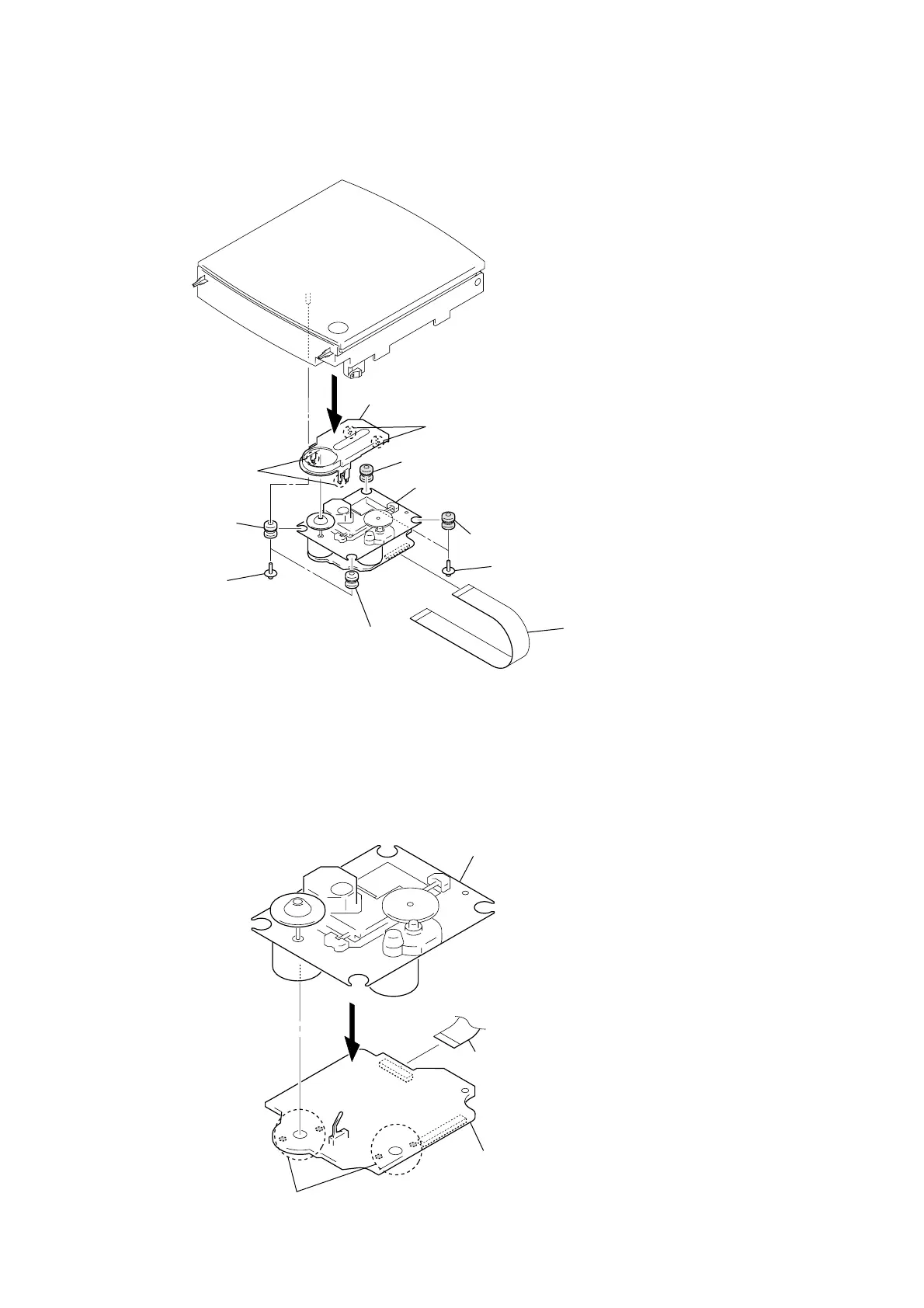

3-5. BASE UNIT SECTION (BU-K8BD83S-WOD)
3-6. OPTICAL PICK-UP BLOCK (KSM-213CDP)
2 two screws
(PWH B2.6)
4 vibration proof rubber (red)
8 base unit sction
(BU-K8BD83S-WOD)
7 CD cover
6 two claws
6 two claws
4 vibration proof rubber (red)
5 vibration proof rubber
(green)
5 vibration proof rubber
(green)
3
2 two screws
(PWH B2.6)
1 flexible flat (23 core) cable (FFC151)
(CN102)
2 Remove four solders.
1 flexible flat (16 core) cabl
e
(CN301)
3 CD board
4 optical pick-up block
(KSM-213CDP)
