HCD-EX6/EX6T/EX8/EX8T/EX9/EX9T
20

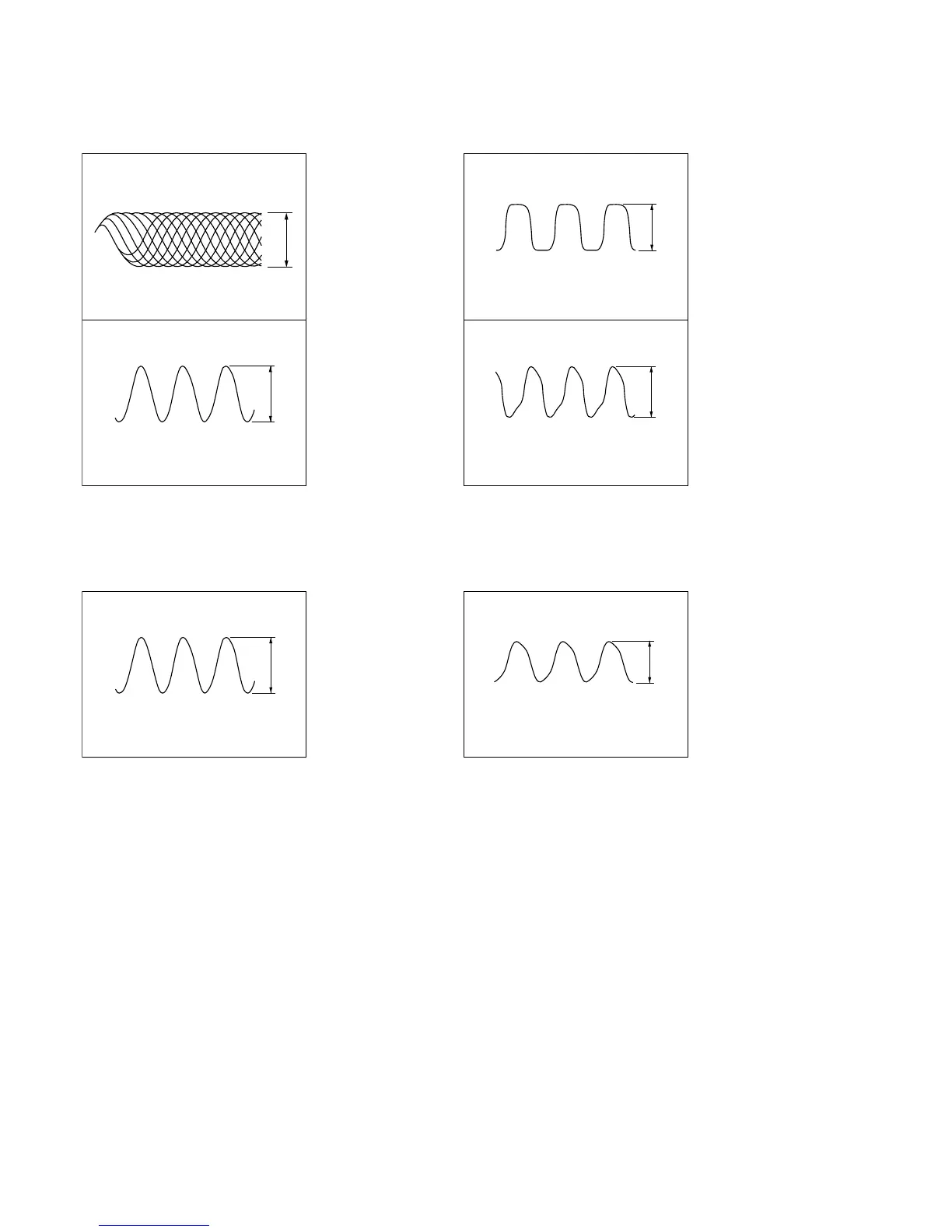

• Waveforms
– BD74 Board –
– USB Board – – MAIN-AMP Board –
– PANEL Board –
16.934 MHz
200 mV/DIV, 500 nsec/DIV
1 V/DIV, 20 nsec/DIV
1 IC101 2 (RFOUT)
(CD play mode)
2 IC101 us (XOUT)
0.7 to 1.5 Vp-p
2.8 Vp-p
1 V/DIV, 20 nsec/DIV
1 IC901 7 (CF2)
12 MHz
2.8 Vp-p
200 mV/DIV, 5 Psec/DIV
1 IC801 qh (CLK IN)
32.768 kHz
0.15 Vp-p
6 MHz
32.768 kHz
1 V/DIV, 10 Psec/DIV
1 V/DIV, 100 nsec/DIV
1 IC301 qf (X1A)
2 IC301 os (X1)
2.8 Vp-p
3.2 Vp-p
