Sony HCD-EX6 - 7-3. Top Panel Components (HCD-EX6 T;EX8 T;EX9 T)

48
HCD-EX6/EX6T/EX8/EX8T/EX9/EX9T
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 1-797-575-11 DECK, MECHANICAL (CS-21SC-901TP)
101 A-1527-851-A TCM-J1 (tape mechanism deck)
102 4-951-620-01 SCREW (2.6X8), +BVTP
103 2-688-621-01 BELT (R/F) (for CS-21SC-901TP)
103 3-214-817-01 BELT (FR) (for TCM-J1)
104 2-670-389-01 BELT (1) (for TCM-J1)
104 2-688-622-01 BELT (MAIN) (for CS-21SC-901TP)
105 1-832-814-21 CABLE, FLEXIBLE FLAT (9 CORE)
106 A-1748-774-A DECK BOARD, COMPLETE
107 3-701-748-00 CLAMP
108 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
109 2-649-132-21 BUTTON (CASS)
110 2-649-131-21 BOX, CASSETTE
111 2-649-152-02 SPRING (CASS)
112 3-917-753-41 CUSHION (SP)
113 2-649-128-71 PANEL, TOP
114 3-047-468-01 DAMPER
115 3-921-725-01 SCREW (2.6X10), +PWH
#4 7-685-850-04 SCREW +BVTT 2X3 (S)
#5 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3

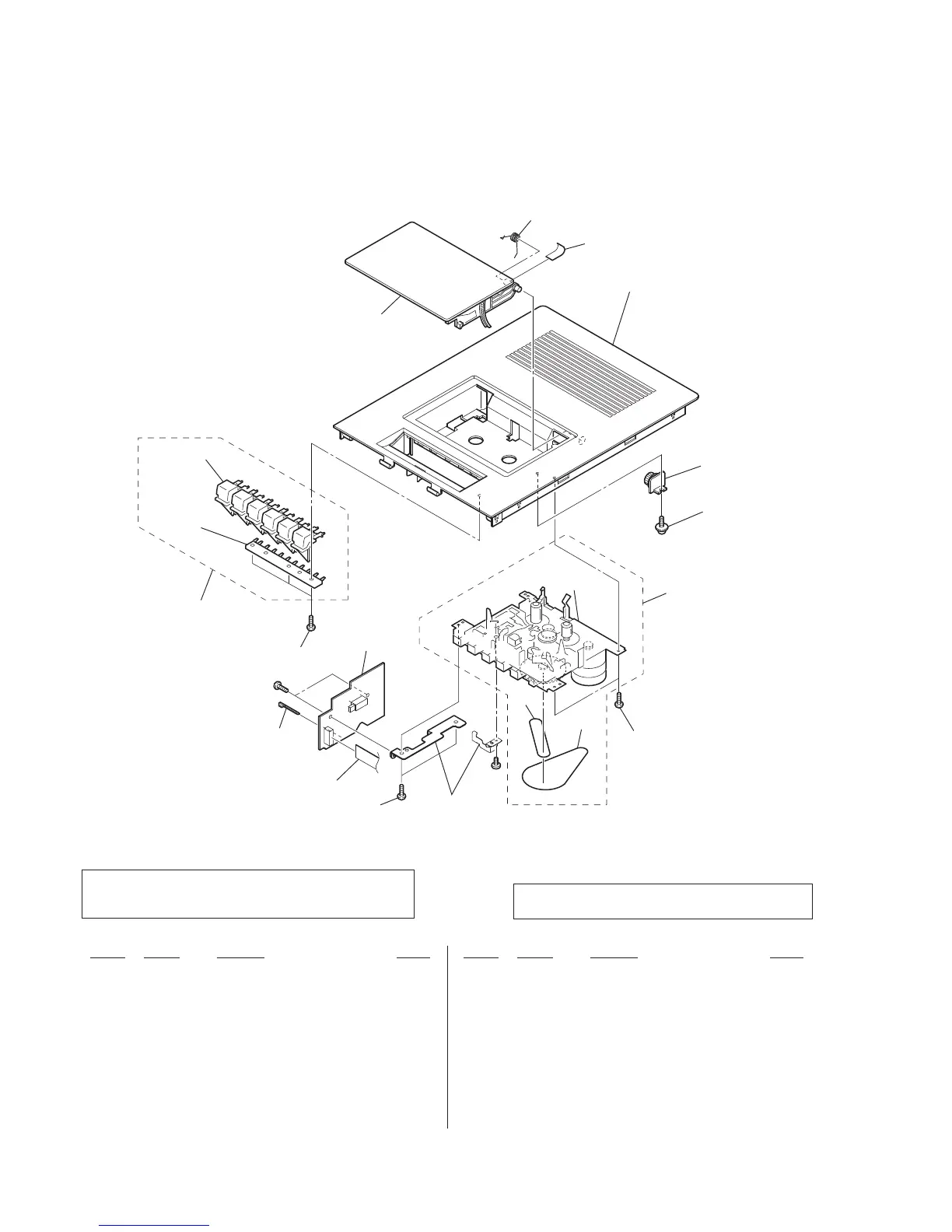

7-3. TOP PANEL SECTION
(HCD-EX6T/EX8T/EX9T)
not supplied
not supplied
not supplied
not supplied
#5
#4
110
111
112
113
114
115
101
102
102
104
103
107
108
106
109
105
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
Note: When you exchange Ref. No. 101, 103 or 104, Please refer to
“HOW TO DISTINGUISH TAPE MECHANISM DECK” of
the service note (page 5).
