Sony HCD-EX6 - 2-5. Main Board Access

HCD-EX6/EX6T/EX8/EX8T/EX9/EX9T
9

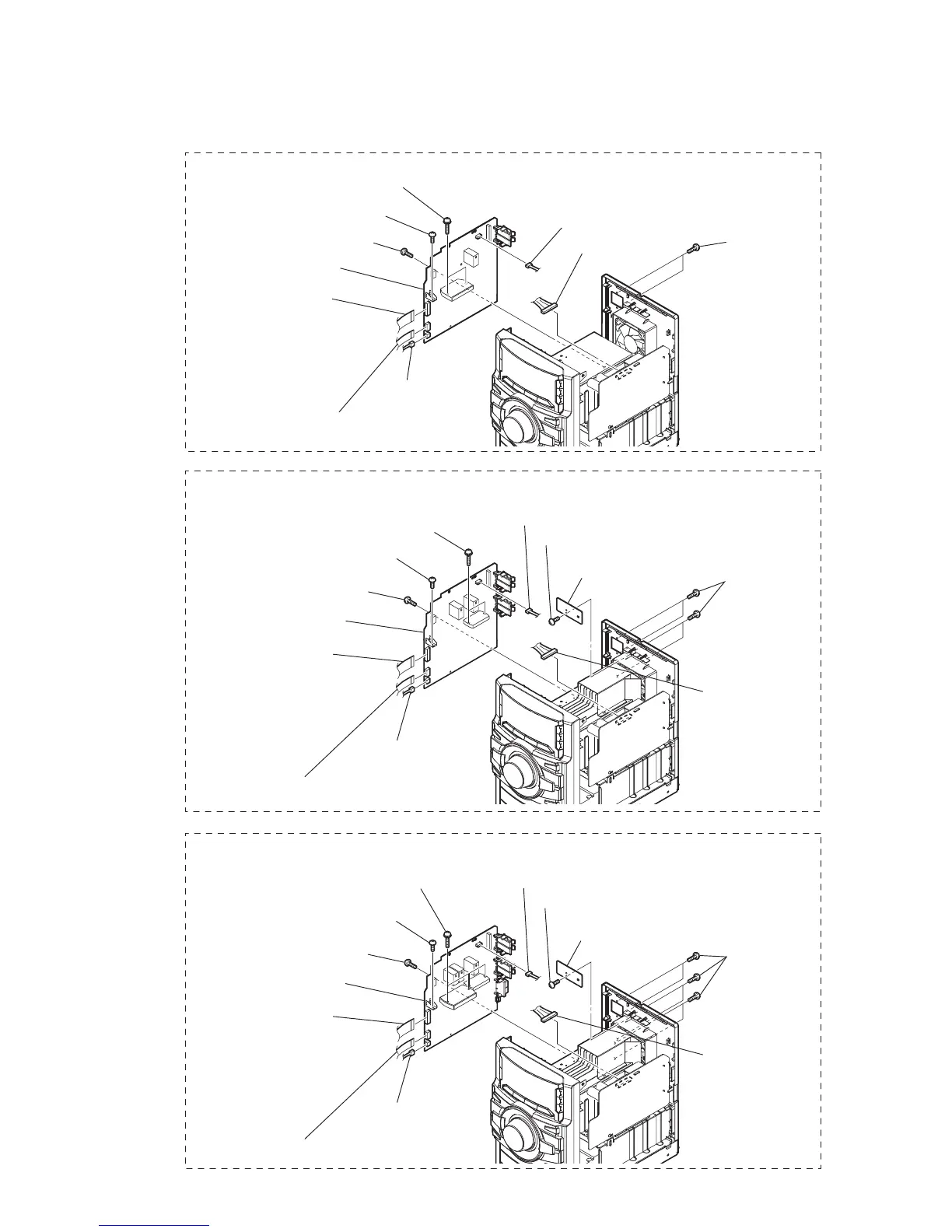

2-5. MAIN BOARD
6 two screws
(+BVTP 3 u10)
7 screw
(+BVTP 3 u10)
9 screw
(+BVTP 3 u10)
8 two screws
(transistor)
1 CN012 (10P)
2 CN701 (3P)
5 CN609 (3P)
3 wire (flat type) (19 core)
(CN603) (EX6)
wire (flat type) (21 core)
(CN602) (EX6T)
4 wire (flat type) (9 core)
(CN604)
q; MAIN board
EX6/EX6T
8 four screws
(+BVTP 3 u10)
9 screw
(+BVTP 3 u10)
qa screw
(+BVTP 3 u10)
1 screw
(+BVTP 3 u10)
2 HOLD board
0 two screws
(transistor)
3 CN012 (10P)
4 CN701 (3P)
7 CN609 (3P)
qs MAIN board
5 wire (flat type) (19 core)
(CN603) (EX8)
wire (flat type) (21 core)
(CN602) (EX8T)
6 wire (flat type) (9 core)
(CN604)
EX8/EX8T
3 CN010 (13P)
1 screw
(+BVTP 3 u10)
2 HOLD board
4 CN701 (3P)
8 six screws
(+BVTP 3 u10)
7 CN609 (3P)
5 wire (flat type) (19 core)
(CN603) (EX9)
wire (flat type) (21 core)
(CN602) (EX9T)
6 wire (flat type) (9 core)
(CN604)
9 screw
(+BVTP 3 u10)
qa screw
(+BVTP 3 u10)
0 four screws
(transistor)
qs MAIN board
EX9/EX9T
