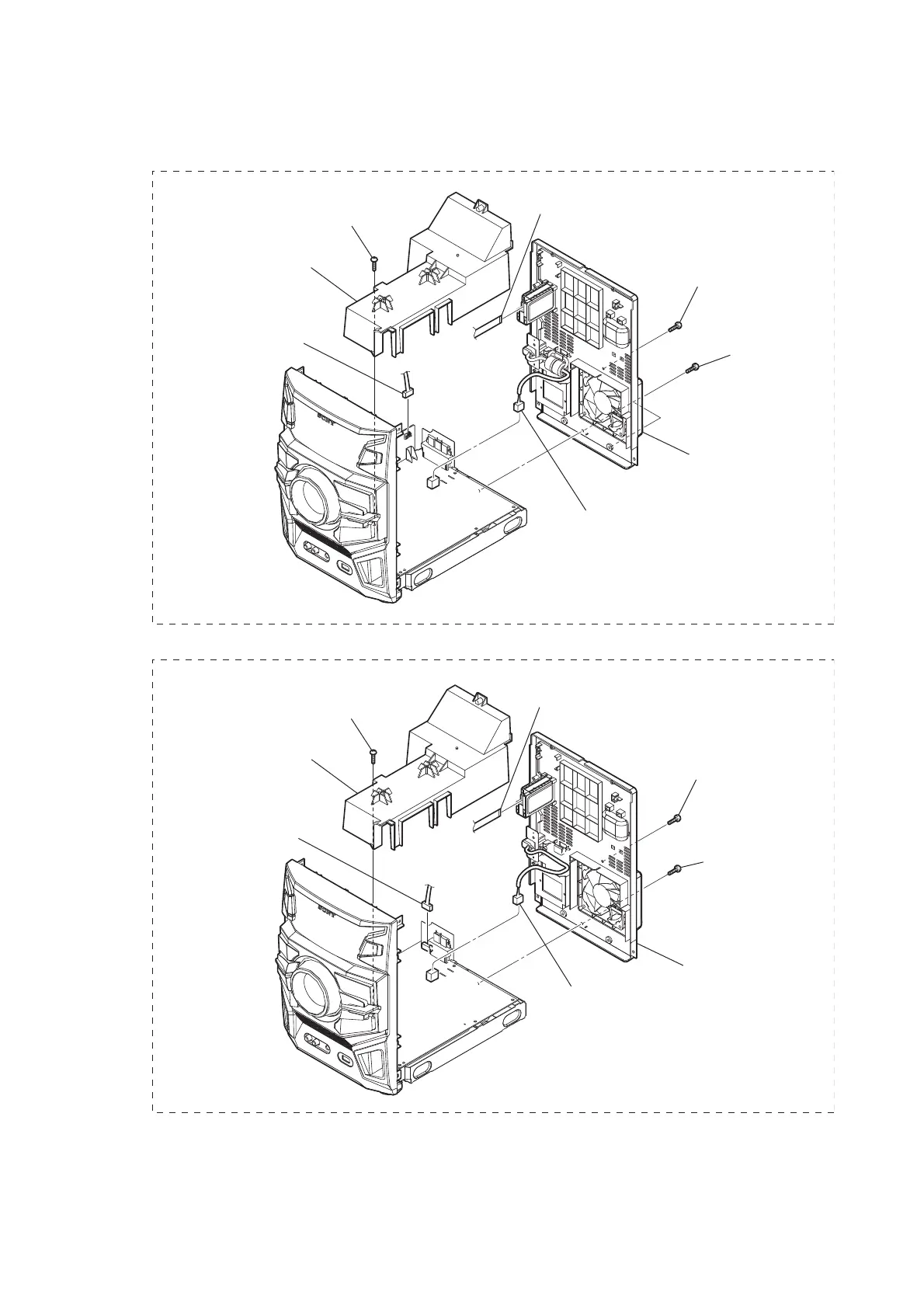

2-5. BACK PANEL SECTION
7 two screws
(+BVTP 3 u10)
3 screw
(+BVTP 3 u10)
2 screw
(+BVTP 3 u10)
5 CN701 (3P) (EX700)
CN702 (6P) (EX900)
6 CN901 (2P)
EX700/EX900
4 cover (power-PWB)
8 back panel section
1 wire (flat type) (7 core)
(CN501)
EX600
5 CN700 (3P)
6 CN901 (2P)
7 screw
(+BVTP 3 u10)
8 back panel section
1 wire (flat type) (7 core)
(CN501)
3 screw
(+BVTP 3 u10)
2 screw
(+BVTP 3 u10)
4 cover (power-PWB)
