Sony HCD-EX600 - AMP SMPS Board

HCD-EX600/EX700/EX900
12

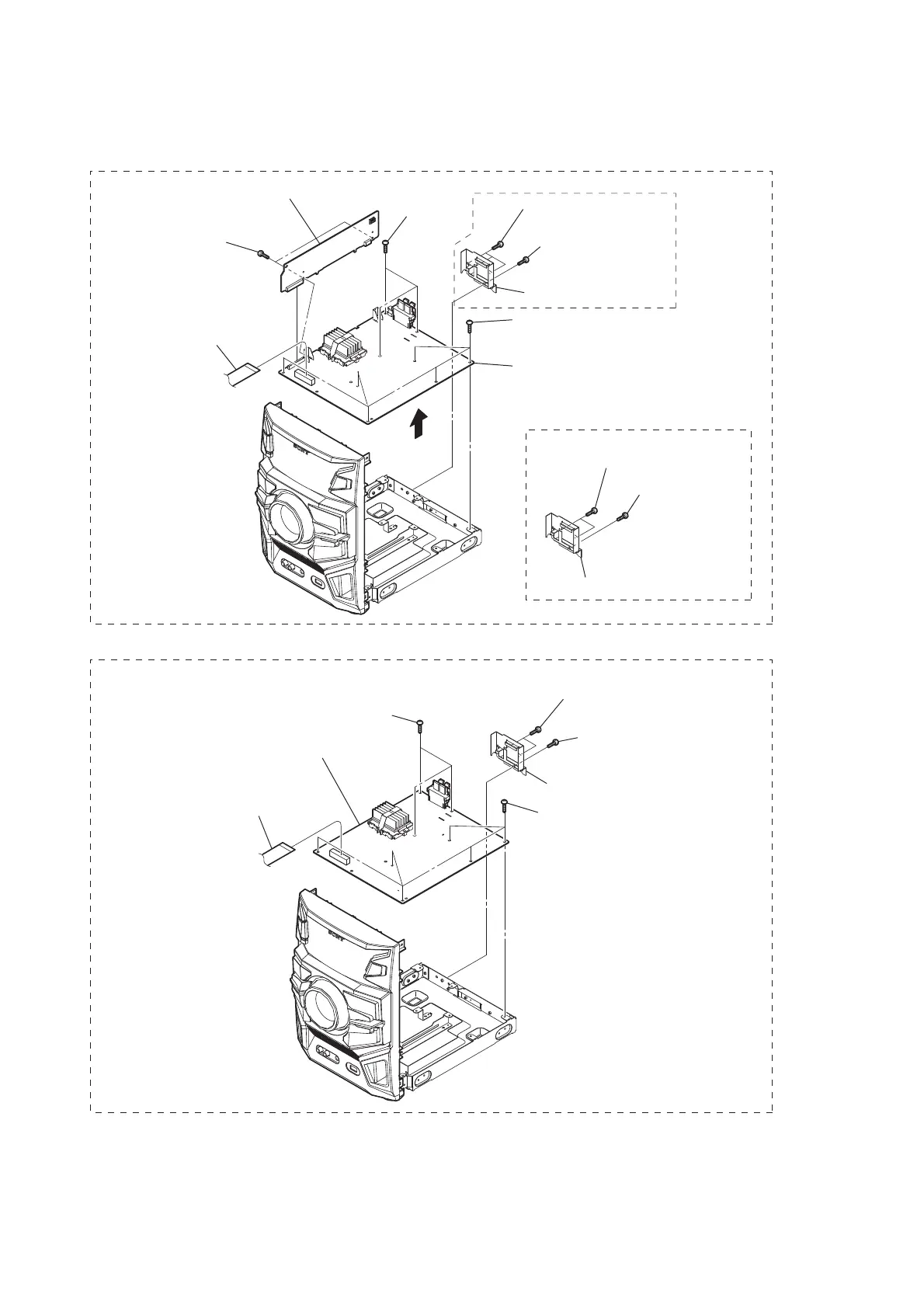

2-6. AMP SMPS BOARD
EX700/EX900
EX700
EX900
EX600
5 six screws
(+BVTP 3 u10)
7
4 bracket (SP08)
9 REGULATOR board
0 AMP SMPS board
3 three screws
(+BVTP 3 u10)
6 three screws
(+BVTP 3 u10)
6 three screws
(+BVTP 3 u10)
8 two screws
(+BVTP 3 u10)
2 screw
(+BVTP 3 u10)
1 wire (flat type) (21 core)
(CN600) (EX700)
wire (flat type) (23 core)
(CN600) (EX900)
1 wire (flat type) (21 core)
(CN600)
3 two screws
(+BVTP 3 u10)
2 screw
(+BVTP 3 u10)
4 bracket (SP08)
5 six screws
(+BVTP 3 u10)
7 AMP SMPS board
3 two screws
(+BVTP 3 u10)
2 screw
(+BVTP 3 u10)
4 bracket (SP08)
