Sony HCD-EX600 - Chassis Section

54
HCD-EX600/EX700/EX900
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-1800-478-A AMP SMPS BOARD, COMPLETE (EX900)
151 A-1800-480-A AMP SMPS BOARD, COMPLETE (EX700)
151 A-1800-482-A AMP SMPS BOARD, COMPLETE (EX600)
152 A-1822-265-A EFX-MODULE BOARD, COMPLETE (EX900)
152 A-1822-266-A EFX-MODULE BOARD, COMPLETE (EX700)
152 A-1822-267-A EFX-MODULE BOARD, COMPLETE (EX600)
153 4-264-672-01 CUSHION (FOOT)
#1 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3

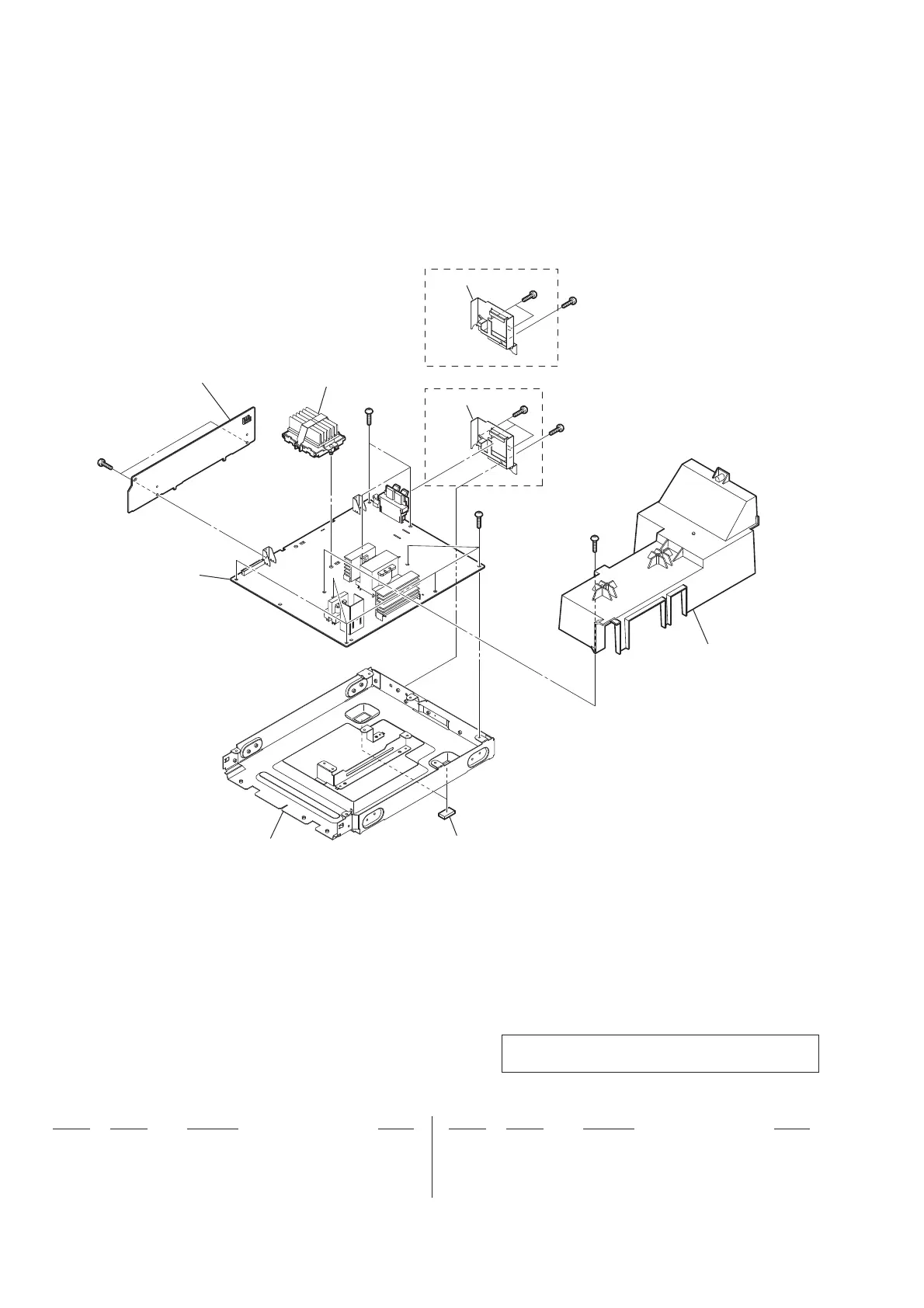

6-4. CHASSIS SECTION
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
151
152
153
not supplied
EX900
not supplied
not supplied
(REGULATOR board)
(EX700/EX900)
not supplied
#1
#1
#1
#1
#1
#1
EX600/EX700
not supplied
#1
#1
