Sony HCD-EX770 - BD BOARD IC121 CXD2650 R (DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, EFM;ACIRC ENCODER;DECODER, SHOCK PROOF MEMORY CONTROLLER, ATRAC ENCODER;DECODER, 2 M BIT D-RAM)

– 39 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 X-4946-296-1 HOLDER (BU) ASSY
252 4-982-447-01 SPRING (BU), COMPRESSION
253 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
* 254 1-663-324-11 RELAY BOARD
255 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)
256 4-977-955-01 GEAR (SL-B)
257 4-917-583-21 BRACKET, YOKE
258 4-977-953-01 GEAR (SL-A)
259 4-977-954-01 PULLEY (SL)
260 4-977-942-01 BELT (SL) (1.4)
261 X-4946-491-1 CAM ASSY, BU
* 262 1-452-879-11 MAGNET
263 X-4947-846-4 CHASSIS (CDM) ASSY (NEW)
* 264 1-663-321-11 LOADING BOARD
265 4-951-620-41 SCREW (2.6), +BVTP
M801 A-4660-926-A MOTOR (CDM) ASSY (SPINDLE)
S851 1-473-335-11 ENCODER, ROTARY

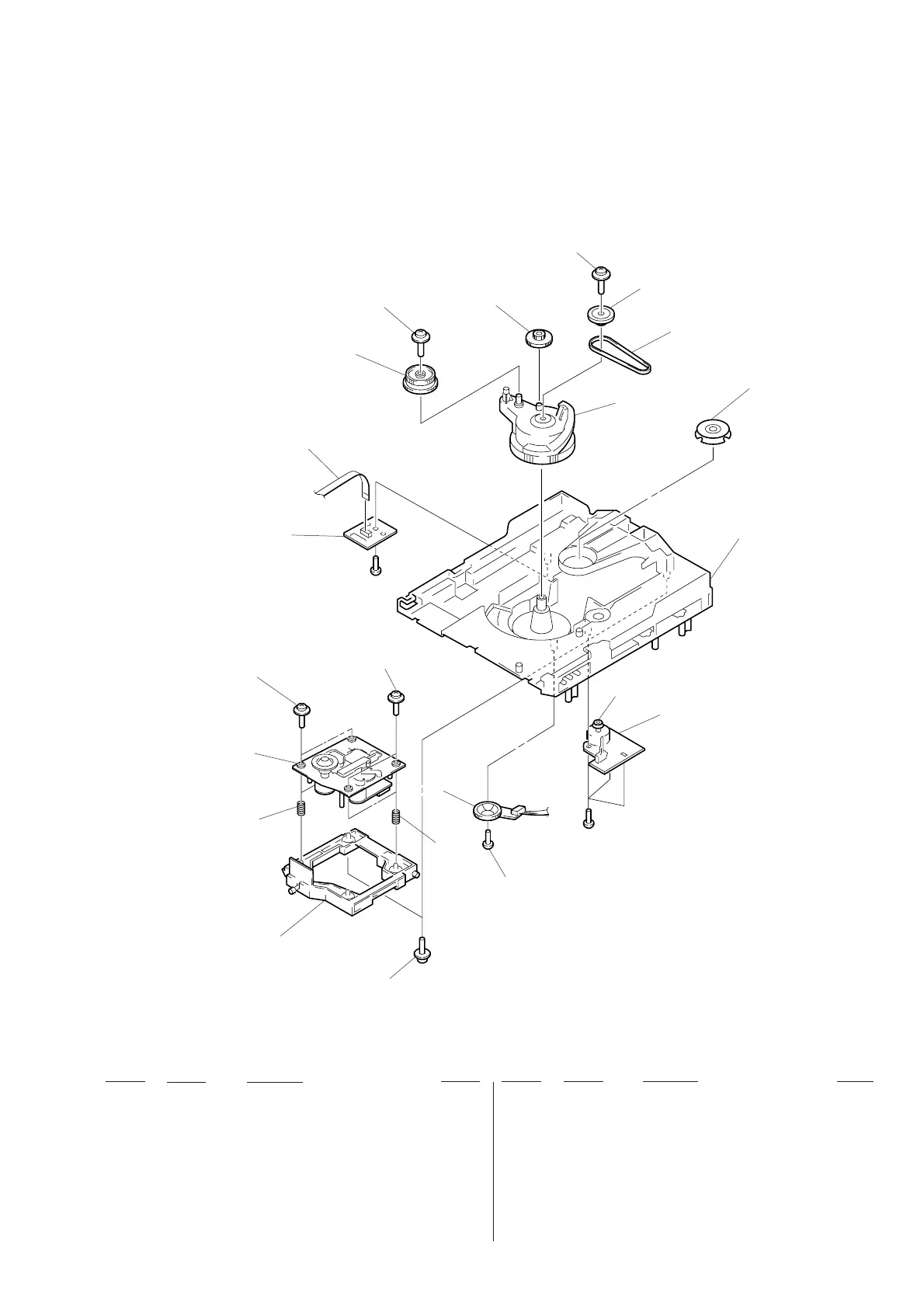

(4) CD MECHANISM DECK SECTION-2
(CDM38A-5BD19)
#1
S851
259
260
262
255
257
261
#1
263
252
251
257
254
265
258
257
256
252
264
M801
253
253
BU-5BD19
