Sony HCD-EX770 - Page 74

– 40 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 4-951-620-01 SCREW (2.6X8), +BVTP
* 302 A-4673-402-A BD BOARD, COMPLETE
303 4-951-940-01 INSULATOR (BU)
304 4-917-565-01 SHAFT, SLED
! 305 8-848-367-11 OPTICAL PICK-UP KSS-213B/K-N
306 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
307 4-917-567-01 GEAR (M)
308 4-917-564-01 GEAR (P), FLATNESS
M101 X-4917-523-4 BASE (OUTSERT) ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)

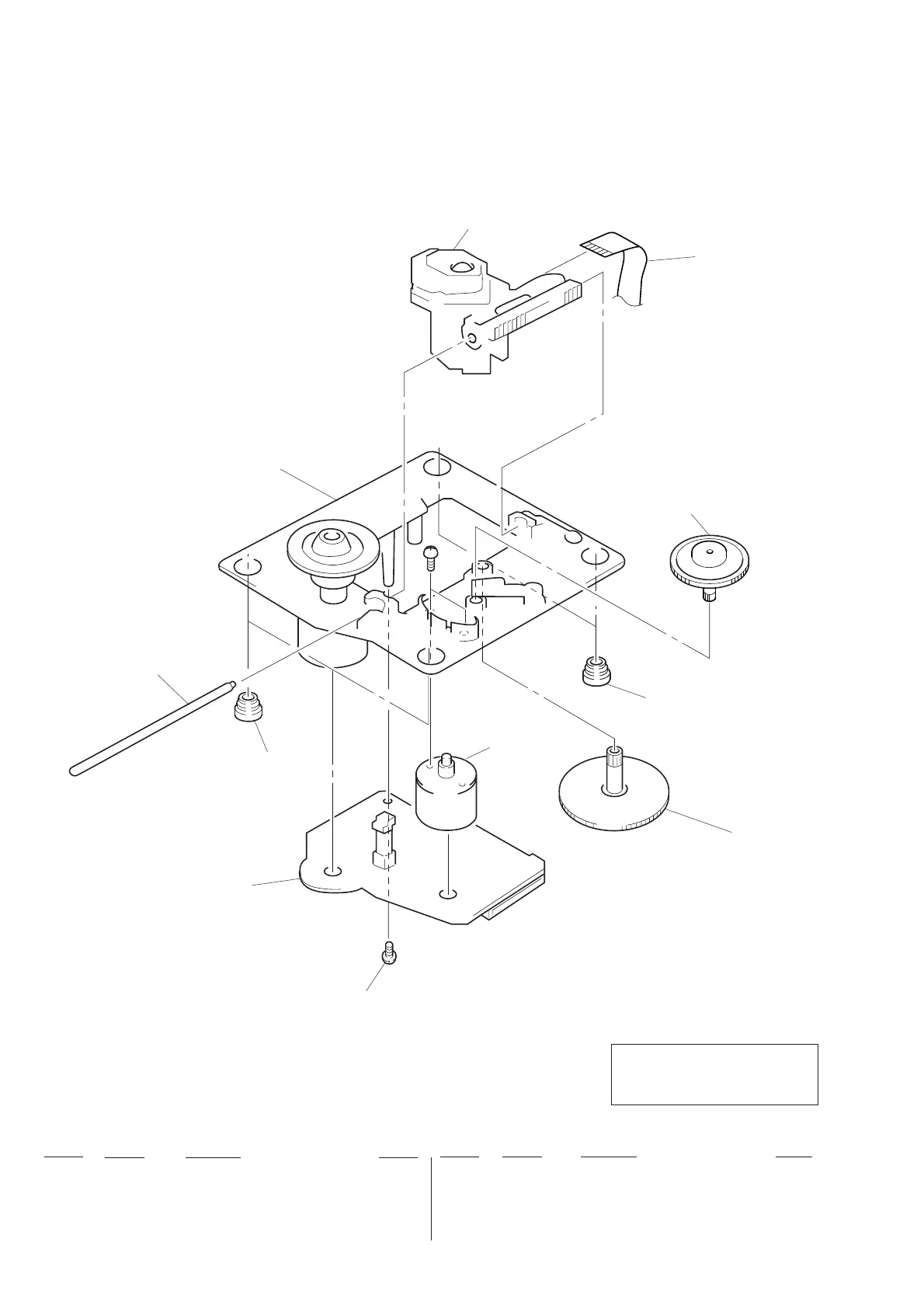

(5) BASE UNIT SECTION
(BU-5BD19)
306
M102
308
303
307
303
305
304
M101
301
302
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.
#5
