5
HCD-FR1/FR8/FR9

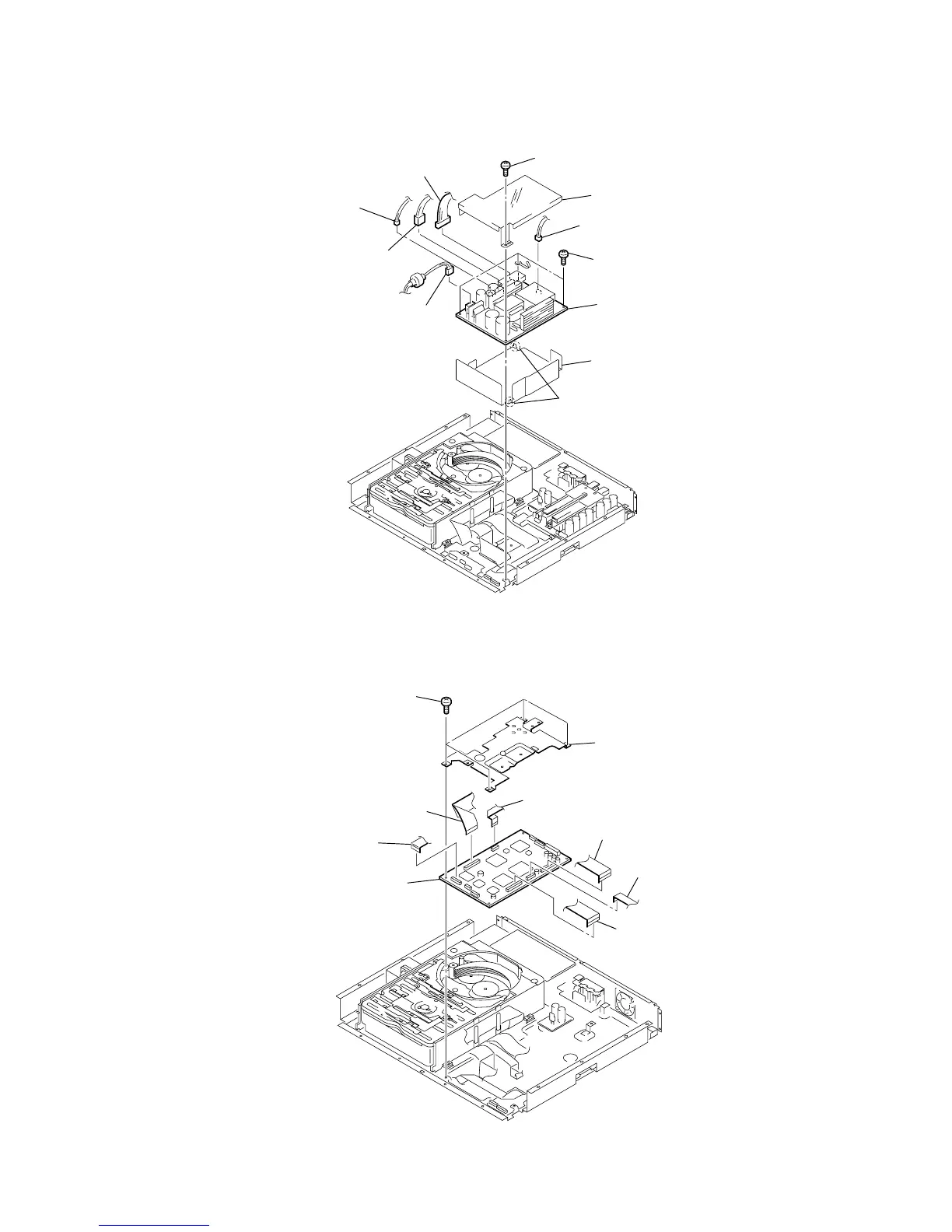

1-6. SWITCHING REGULATOR
1-7. DMB08 BOARD
1 screw
(+BV3)
3 three screws
(+BV3)
2 power sheet (top)
q; power sheet
qa switching regulator
4 connector
(2p) (CN7)
5 connector
(12p) (CN8)
6 connector
(4p) (CN4)
8 connector
(2p) (CN3)
7 connector
(2p)
9 Remove the two solderings.
2 wire (flat type)
(29 core) (CN401)
3 wire (flat type)
(29 core) (CN002)
5 wire (flat type)
(11 core) (CN010)
6 wire (flat type)
(28 core) (CN006)
7 wire (flat type)
(17 core) (CN005)
8 wire (flat type)
(15 core) (CN003
)
9 DMB08 board
4 bracket (DMB)
1 four screws
(+BV3)
