7
HCD-FR1/FR8/FR9

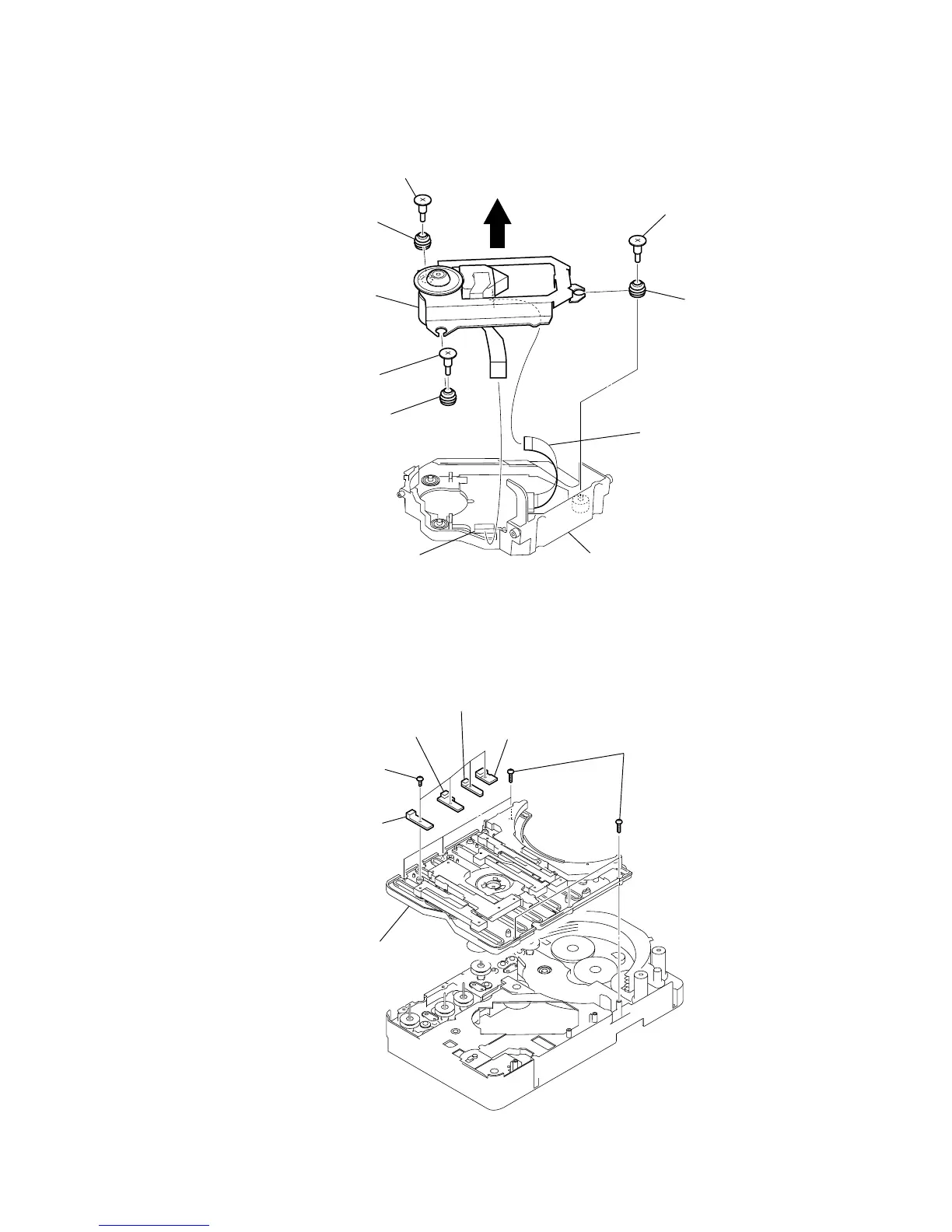

1-10. PICK-UP UNIT (DBU-1)
1-11. SW BOARD, BRACKET (TOP) ASSY
holder (DBU1)
6 flexible board
8 insulator
7 insulator
9 insulator
5 connector
(CN003)
2 step screw (M
)
1 step screw (M)
0 pick-up unit (DBU-1)
4
3 step screw (M)
6 six screws
(BVTP2.6 × 8)
5 SW (4) board
4 SW (3) board
3 SW (2) board
2 SW (1) board
7 bracket (top) assy
1 four screws
(BTP2.6 × 6)
