12
HCD-FR1/FR8/FR9
SECTION 2
ASSEMBLY
• This is can be assemble according to the following sequence.

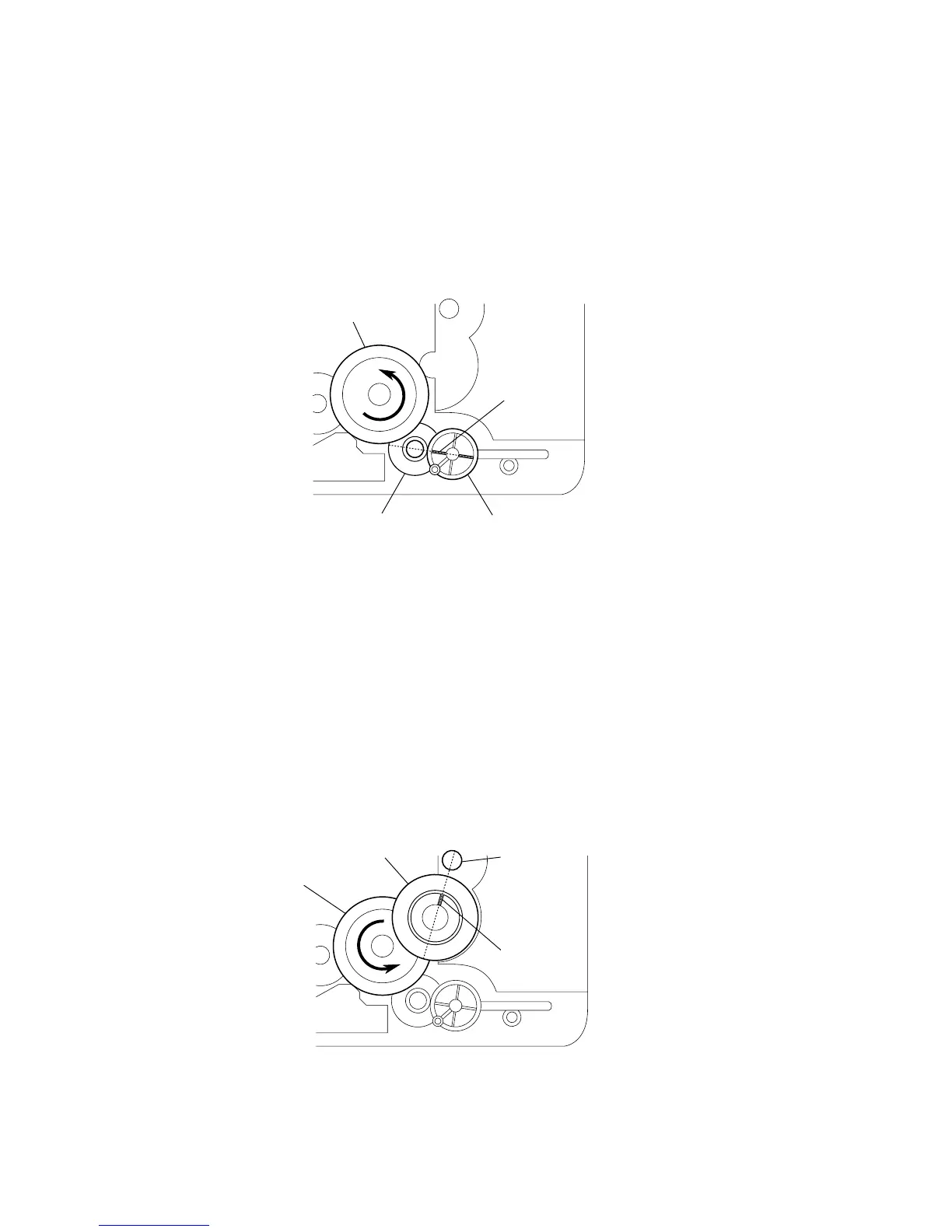

2-1. HOW TO INSTALL THE CAM (EJECT LOCK)
2-2. HOW TO INSTALL THE CAM (GEAR)
mark
cam (BU U/D)
cam (eject lock)
– bottom view • front –
gear (eject lock)
1
Rotate the cam (BU U/D) fully in the direction of arrow.
2
Engage the gear (eject lock) and the gear of the cam (eject lock)
aligning the mark with the center of the gear (eject lock).
boss
cam (gear)
mark
cam (BU U/D)
– bottom view • front –
1
Check that the cam (BU U/D) can not be rotated in the direction of arrow.
2
Align the mark on the cam (gear) with the boss as shown in the figure
and install the cam (gear).
To Next Page
