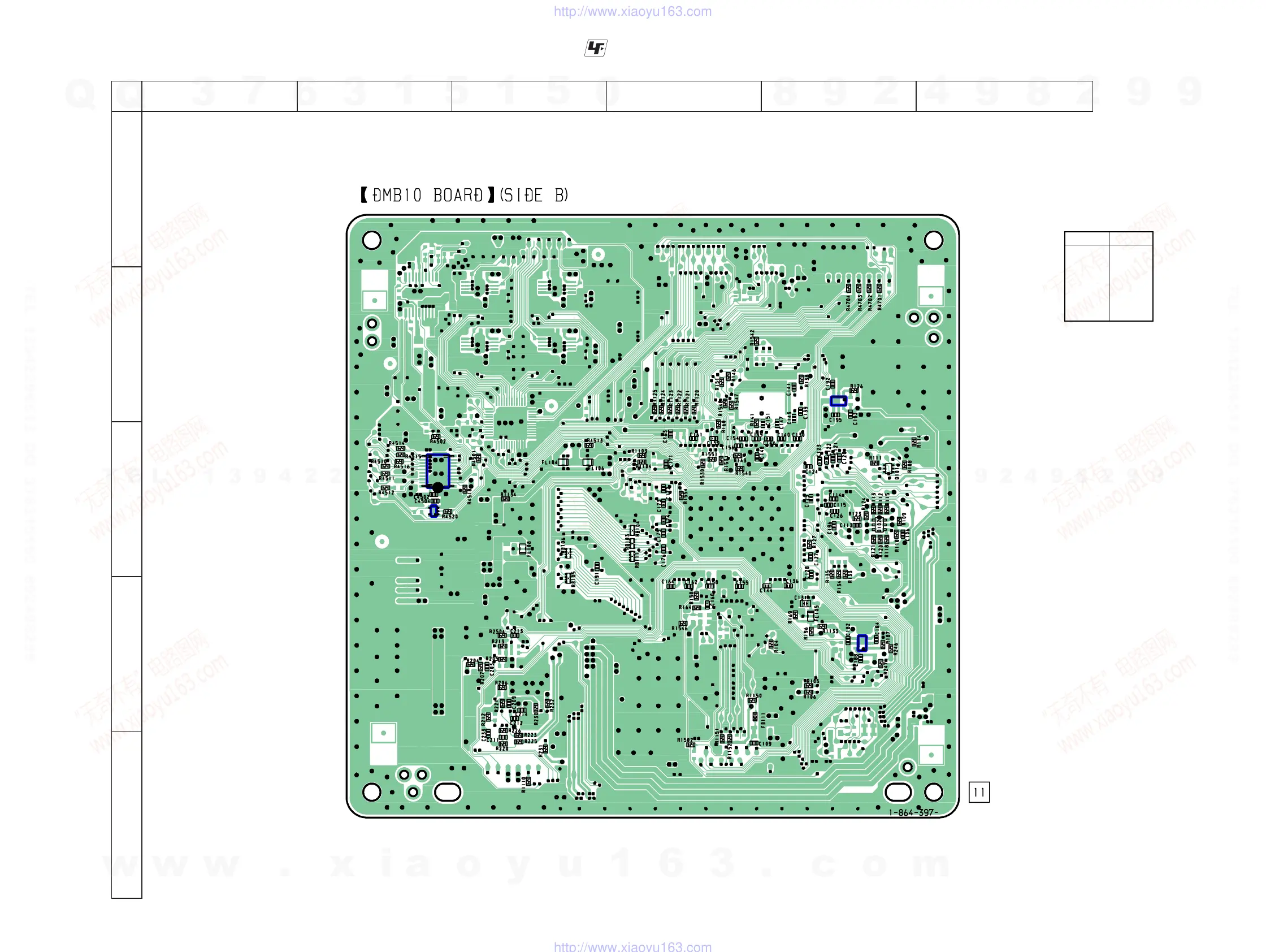

6-5. PRINTED WIRING BOARD – DMB10 SECTION (SIDE B) –
IC4501
IC4502
IC107
IC105
1
3
5
4
1
3
5
4
S
S
E
E
1
3
4
5
12
A
B
C
D
E
3456
• Semiconductor
Location
Ref. No. Location
IC105 D-5
IC107 B-5
IC4501 C-2
IC4502 C-2
Q101 C-5
Q102 C-5
• See page 26 for Circuit Boards Location. :Uses unleaded solder.
