Sony HCD-FX888K - Front Panel Assy; I;O Board, DC Fan

9
HCD-FX888K

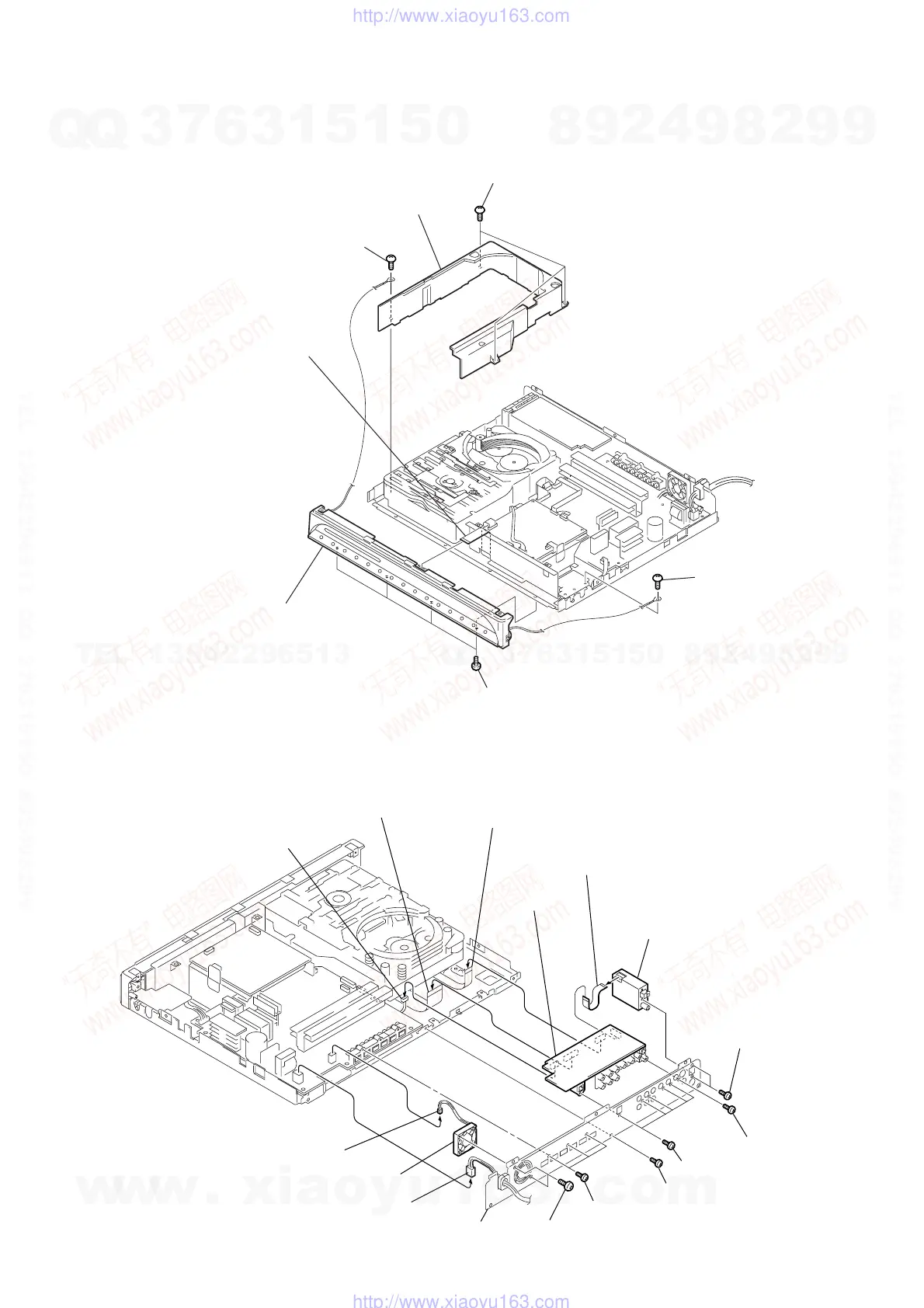

3-4. I/O BOARD, DC FAN
3-3. FRONT PANEL ASSY
7 front panel assy
3 MD cover
6 four screws
(+BVTP 3
× 8)
2 three screws
(+BVTP 3
× 8)
1 screw
(+BVTP 3
× 8)
5 screw
(+BVTP 3
× 8)
4 wire (flat type)
19p(CN801)
2 connector
(CN300)
5 connector
(CNP602)
1 connector
(CN901)
9 DC fan
qg tuner
qd I/O board
back panel
7 wire (flat type)
13p(CN201)
qs wire (flat type)
11p(CN101)
6 wire (flat type)
23p(CN601)
qa screw (+BVTP 3 × 8)
0 five screws (+BVTP 3 × 8)
3 three screws (+BVTP 3 × 8)
4 screw (+BVTP 3 × 8)
qf two screws (+BVTP 3 × 8)
8 two screws (+BVTT 4 × 8)
