Sony HCD-FX888K - Printed Wiring Boards - LED;MIC Section

5353
HCD-FX888K
HCD-FX888K

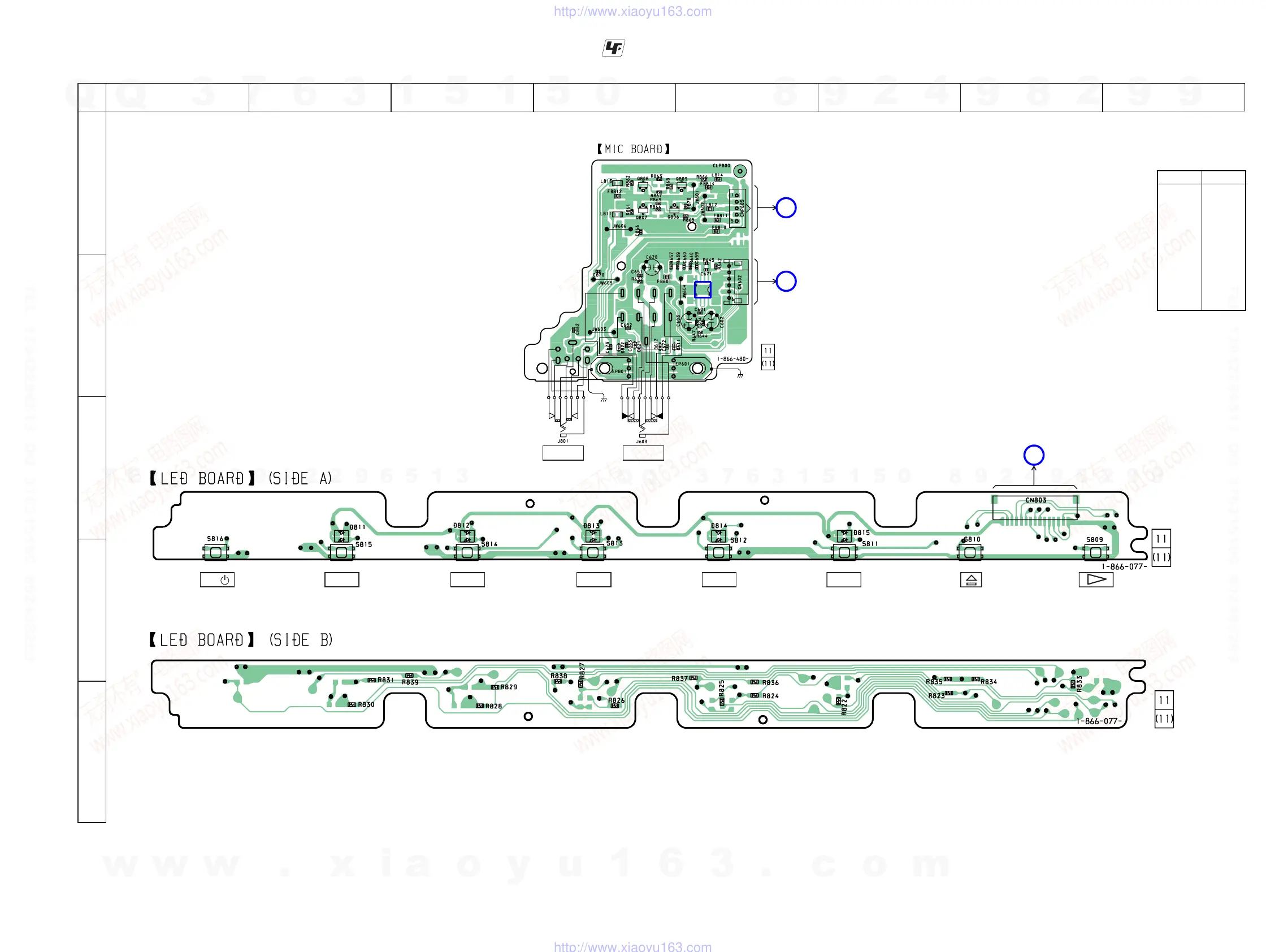

6-22. PRINTED WIRING BOARDS – LED/MIC SECTION –
• Semiconductor
Location
Ref. No. Location
D811 D-2
D812 D-3
D813 D-4
D814 D-5
D815 D-6
IC604 B-5
Q806 A-4
Q807 A-4
Q808 A-4
Q809 A-5
• See page 26 for Circuit Boards Location. :Uses unleaded solder.
DISC1 DISC2
PHONES MIC
DISC3 DISC4 DISC5
J
FL BOARD
CN802
(Page 51)
1
15
I /
K
IC604
I/O
BOARD
CN602
(Page 56)
(CHASSIS)
H
MAIN
BOARD
CN309
(Page 42)
(CHASSIS)
12
A
B
C
D
E
34567
8
