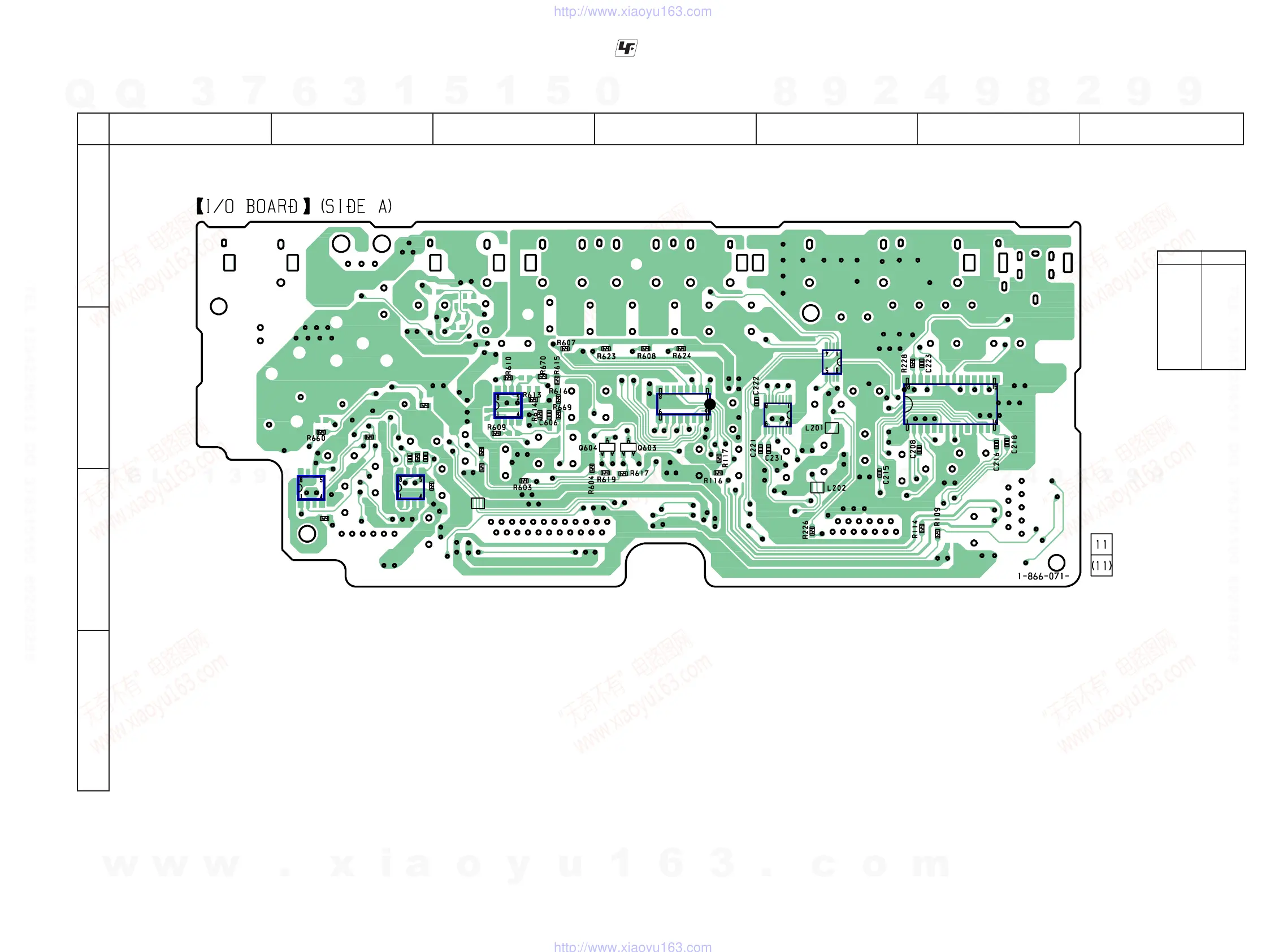

6-24. PRINTED WIRING BOARD – I/O SECTION (SIDE A) –
• See page 26 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
IC201 B-6
IC203 B-5
IC204 B-5
IC601 B-4
IC602 B-3
IC606 C-2
IC607 C-2
Q603 B-4
Q604 B-4
IC602
IC601
IC204
IC203
IC201
IC606
E
E
R657
R621
R634
C655
R640
C654
R636
L603
R641
R642
IC607
12
A
B
C
D
