SS-RSX80/RSX100
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks

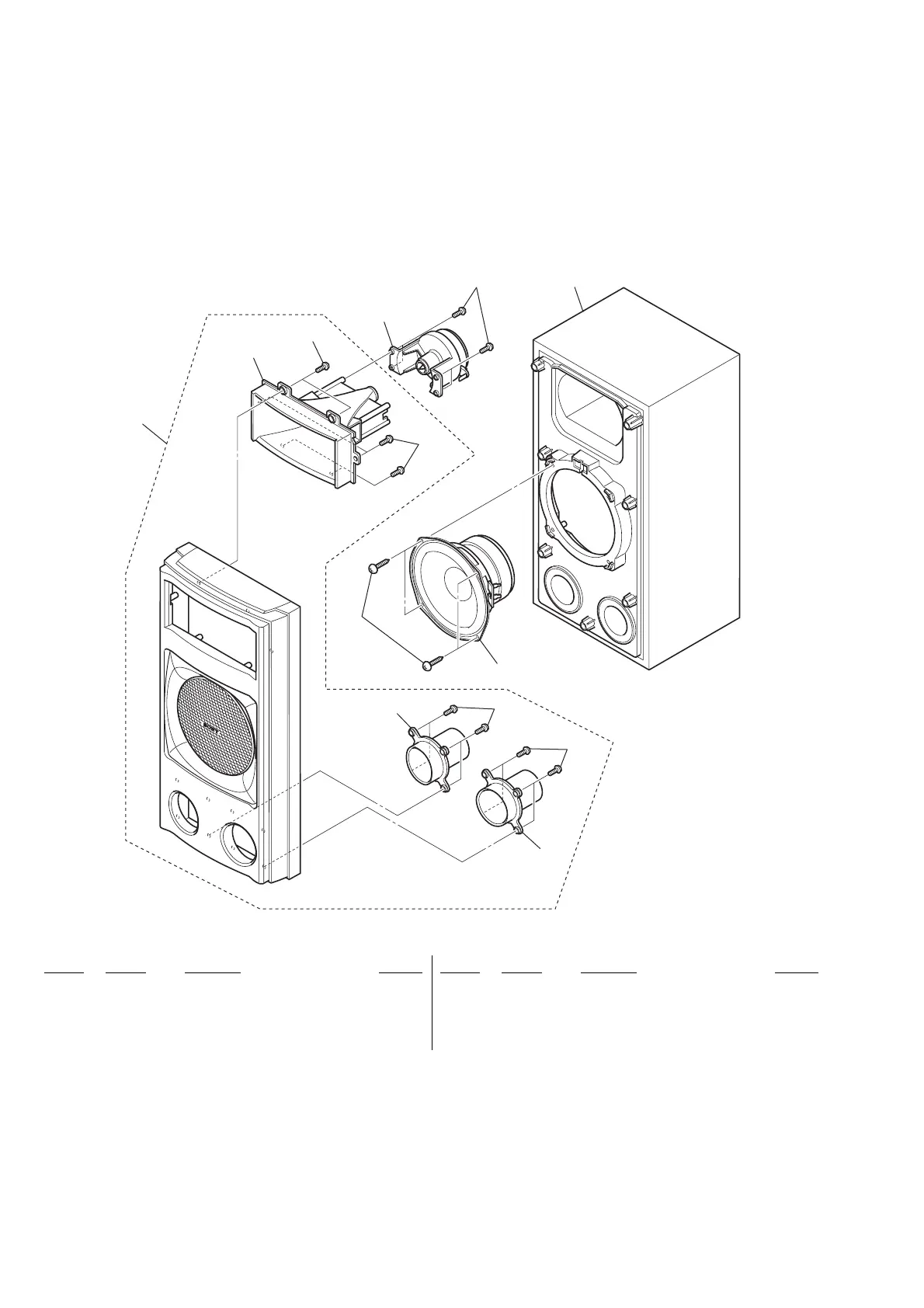

EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
4
1
2
3
3
3
3
3
5
6
7
7
not supplied
1. SS-RSX80
1 A-1087-246-A FRONT PANEL ASSY
2 2-515-212-01 HORN
3 4-874-614-71 SCREW
4 1-826-111-11 LOUDSPEAKER (2.5cm)
5 4-874-614-21 SCREW (1) (3.5X14), TAPPING
6 1-826-136-11 LOUDSPEAKER (13cm)
7 2-515-300-01 DUCT
