Sony HCD-GR3 - 7-2. Front Panel Section 1 Exploded View

— 60 —

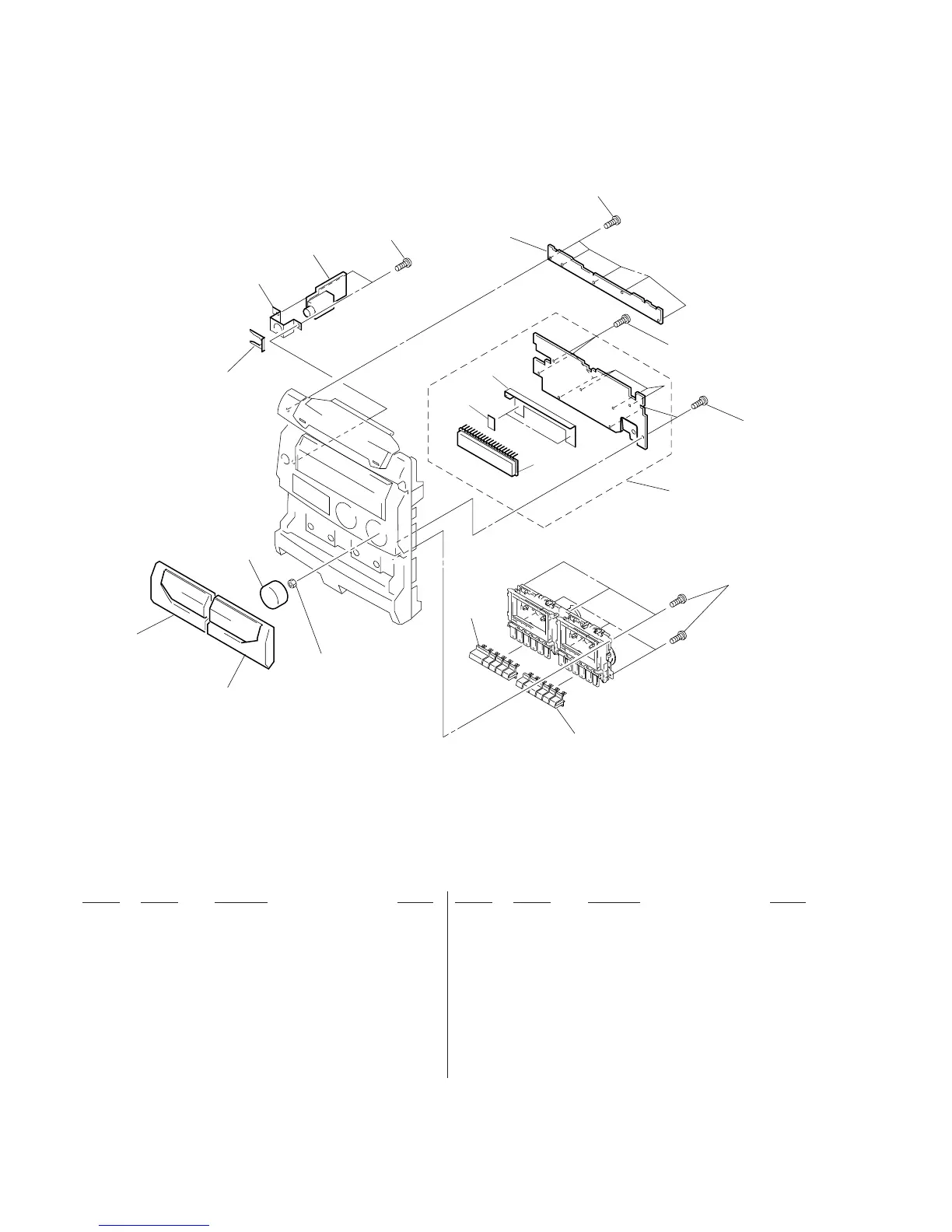

7-2. FRONT PANEL SECTION 1
Supplied with J501
52
Supplied with
S550
59
60
56
58
FL501
62
61
56
57
56
55
54
56
56
53
51
Ref. No. Part No. Description Remark
51 X-4948-140-1 LID (A) ASSY, CASSETTE (SILVER)
51 X-4948-247-1 LID (A) ASSY, CASSETTE (BLACK)
52 X-4948-141-1 LID (B) ASSY, CASSETTE (SILVER)
52 X-4948-248-1 LID (B) ASSY, CASSETTE (BLACK)
53 4-991-934-01 KNOB (VOL)(BLACK)
53 4-991-934-11 KNOB (VOL)(SILVER)
* 54 4-978-830-01 BRACKET, HP
* 55 1-664-647-11 HP BOARD
56 4-951-620-01 SCREW (2.6X8), +BVTP
* 57 1-664-648-11 CD SW BOARD
Ref. No. Part No. Description Remark
* 58 A-4392-601-A PANEL BOARD, COMPLETE (EXCEPT SAF)
* 58 A-4398-500-A PANEL BOARD, COMPLETE (SAF)
59 4-978-826-01 BUTTON (MD-A)(BLACK)
59 4-978-826-21 BUTTON (MD-A)(SILVER)
60 4-978-827-01 BUTTON (MD-A)(BLACK)
60 4-978-827-21 BUTTON (MD-B)(SILVER)
* 61 4-978-168-01 HOLDER, FL TUBE
* 62 4-932-810-11 CUSHION (FL)
FL501 1-517-660-11 INDICATOR TUBE, FLUORESCENT
