Sony HCD-GR3 - SECTION 7 EXPLODED VIEWS (Continued); 7-10. TC Mechanism Section 3 Exploded View

— 68 —

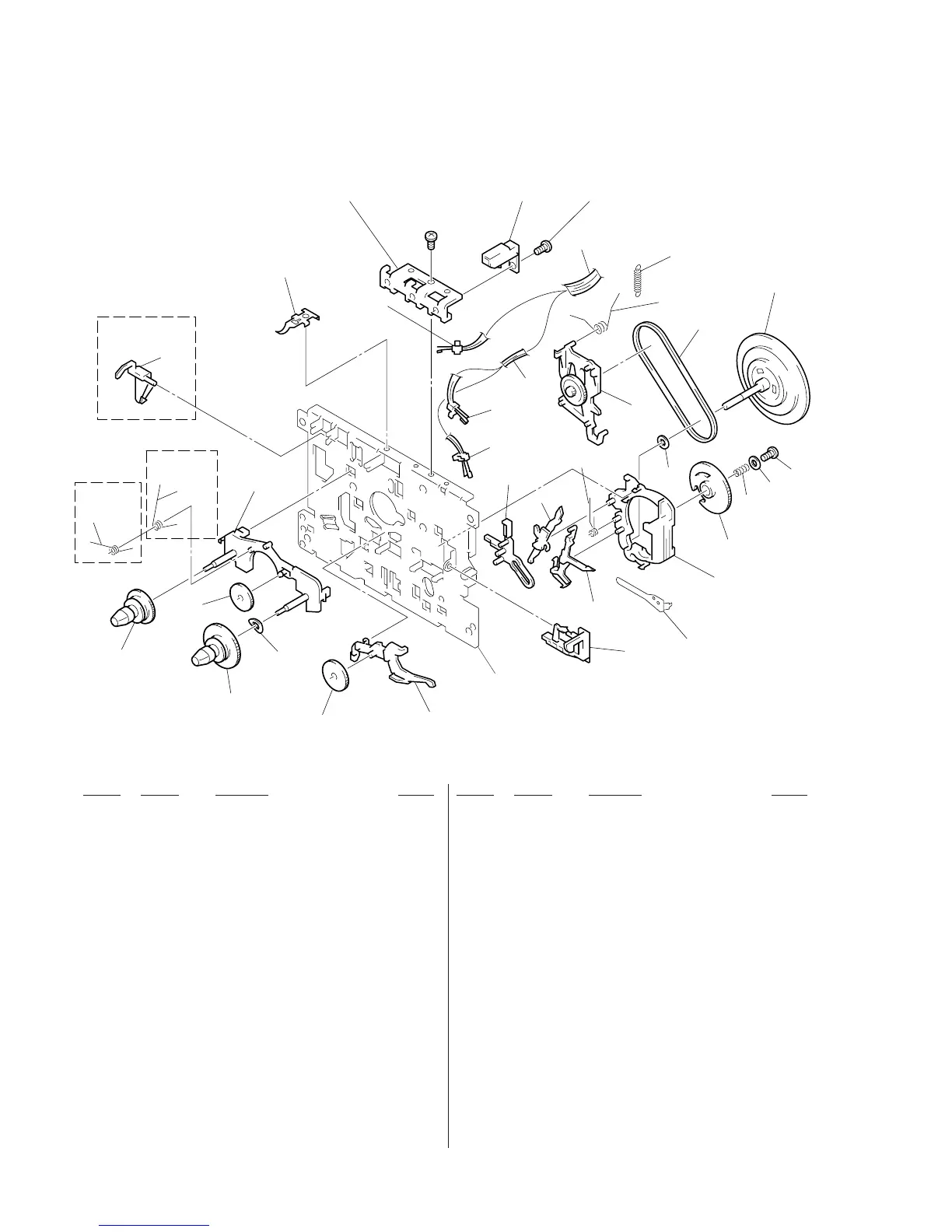

7-10. TC MECHANISM SECTION 3 (TCM-YSW47C24)
Ref. No. Part No. Description Remark
501 X-3363-611-1 REEL, S
502 3-362-962-01 REEL ASSY, T
503 3-372-120-01 SPRING
504 3-918-735-01 SPRING
505 3-932-553-01 PLATE SPRING BT
506 3-362-965-01 IDLER, FF
507 3-362-961-01 SPINDLE (BASE)
508 3-362-960-01 PULLEY, IDLER
509 3-362-959-01 ARM, IDLER
* 510 3-362-941-01 CHASSIS
511 3-362-968-01 LEVER, EJECT
512 3-362-966-01 INTER LOCK
513 3-918-744-01 SPRING, CASSETTE
514 1-762-610-11 SWITCH, PLATE
515 1-762-613-11 SWITCH, WIRE LEAF
516 1-762-612-11 SWITCH, WIRE LEAF
517 3-362-971-01 SPRING
518 3-362-970-01 SPRING
519 3-918-734-01 BELT
520 3-369-921-01 FW ASSY
Ref. No. Part No. Description Remark
521 3-362-969-01 IDLER ASSY, PF
522 3-918-736-01 WASHER
523 X-3363-315-1 GEAR, CAM
524 3-369-962-01 SPRING, COMPRESSION
525 3-369-961-01 WASHER
526 3-366-352-01 SCREW
527 3-362-973-01 AS (BASE)
528 3-362-978-01 SPRING, PLATE
529 3-362-977-01 SPRING
530 3-362-976-01 LEVER, CONTROL
531 3-362-975-01 LEVER, SENSOR
532 3-387-697-01 SENSOR
533 3-918-741-01 SCREW
S1 1-571-556-11 SWITCH, LEAF (MOTOR)(DECK A)
S2 1-571-745-11 SWITCH, LEAF (PLAY)(DECK A)
S3 1-762-611-11 SWITCH, LEAF (TYPE 2)(DECK A)
S4 1-571-556-11 SWITCH, LEAF (MOTOR)(DECK B)
S5 1-571-745-11 SWITCH, LEAF (PLAY)(DECK B)
S6 1-762-611-11 SWITCH, LEAF (TYPE 2)(DECK B)
S7 1-571-556-11 SWITCH, LEAF (REC)(DECK B)
520
519
518
517
533
S3 (DECK A)
S6 (DECK B)
#8
514
513
DECK B
512
S7 (DECK B)
S2 (DECK A)
S5 (DECK B)
S1 (DECK A)
S4 (DECK B)
532
530
525
524
523
501
DECK B
DECK A
503
504
507
516
521
529
515
522
526
527
528
511
510
531
505
502
506
509
508
