SECTION 3
DISASSEMBLY
1 Remove the connectors.
(Main board: CN301, CN302, CN303, CN304, CN305, CN306, CN701)
Note: Follow the disassembly procedure in the numerical order given.

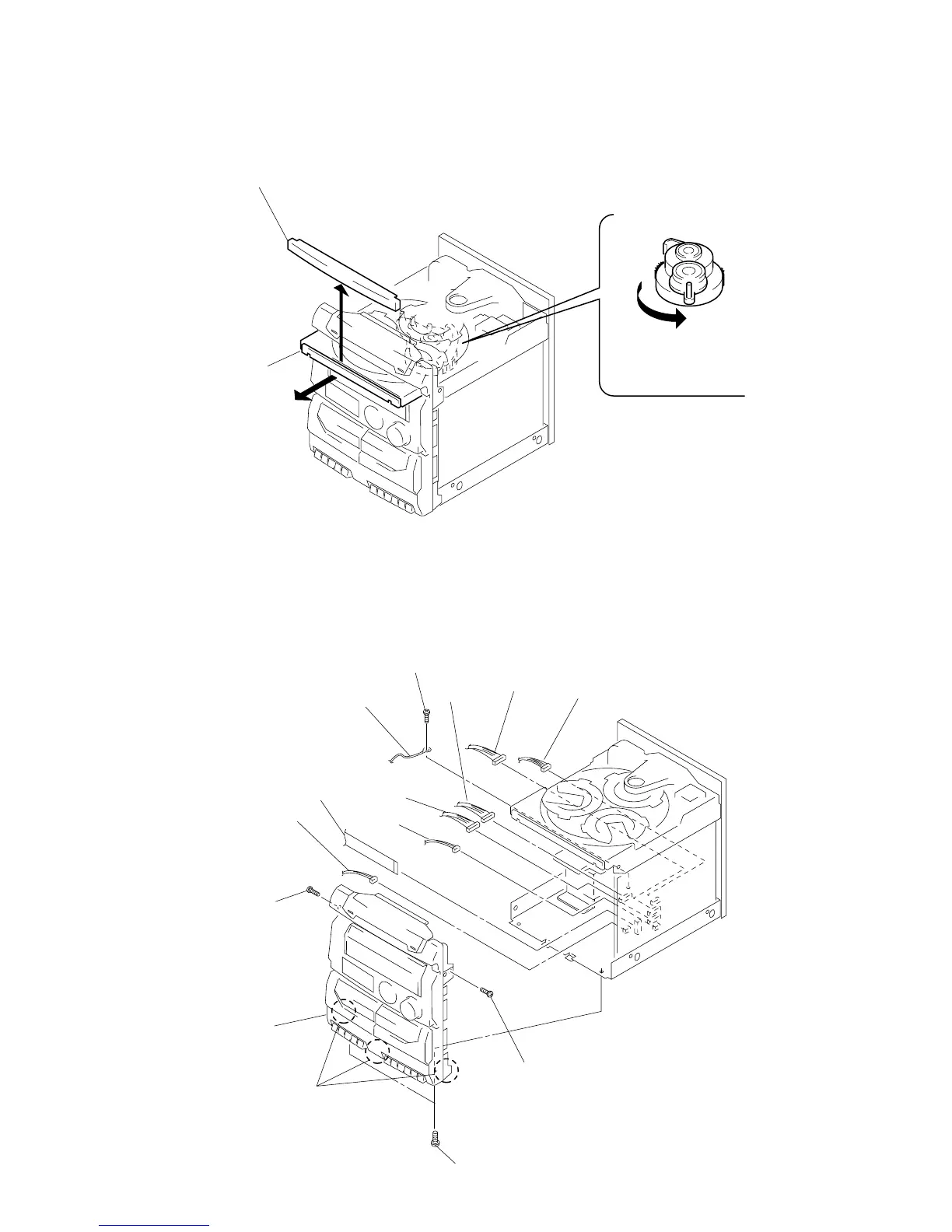

3-1. LOADING PANEL
3 Loading panel
2 Pull-out the disc tray.
1 Turn the cam to the
direction of arrow.
3-2. FRONT PANEL
CN301
CN305
CN302
CN306
6 Screw
(BVTP3x8)
CN303
CN701
CN304
8 Front panel
assembly
4 Two screws
(+BVTP3x8)
2 Screw
(BVTP3x8)
3 Screw
(BVTP3x8)
5 claws
7 Wire
