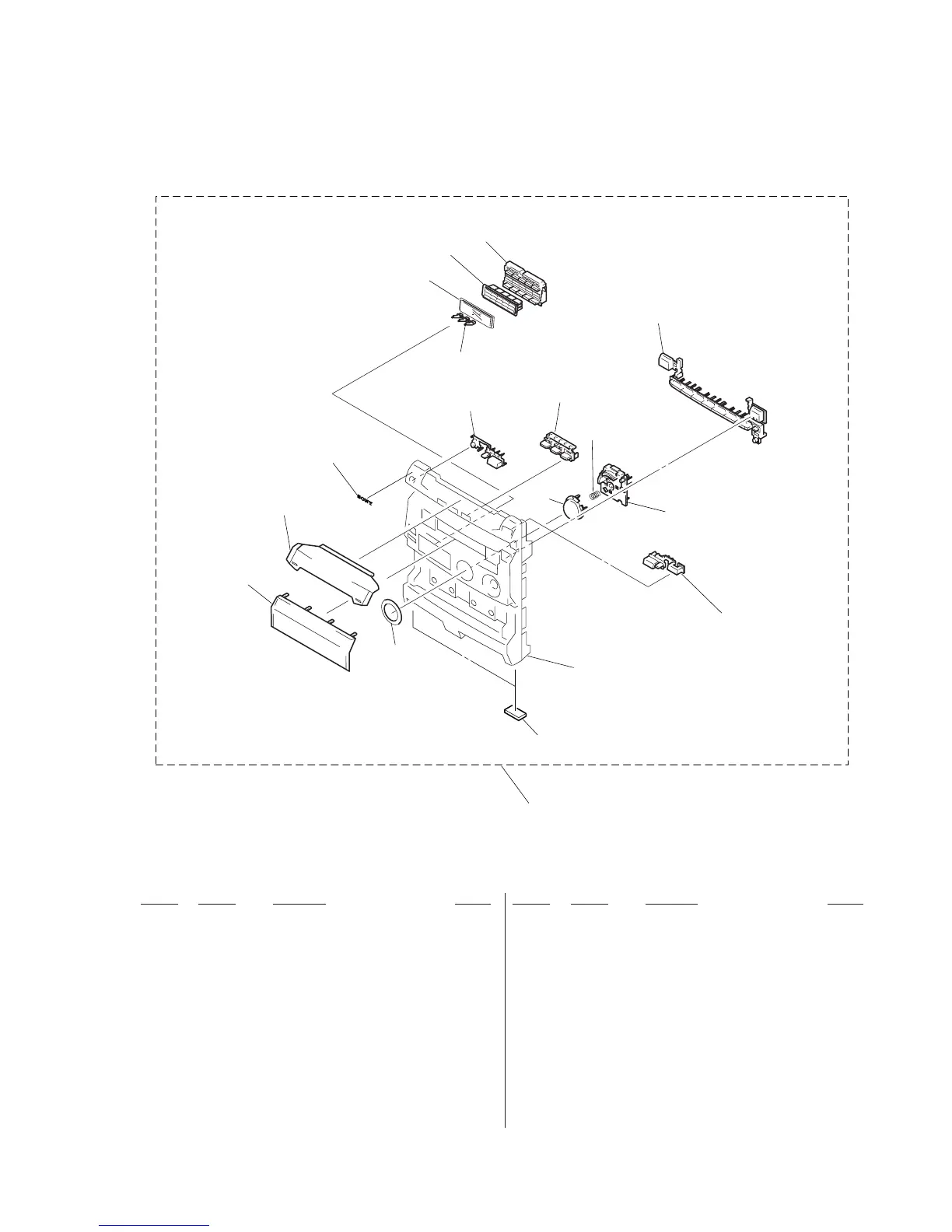

Sony HCD-GR3 - 7-3. Front Panel Section 2 Exploded View

— 61 —
Ref. No. Part No. Description Remark
101 4-978-716-01 WINDOW (FL)
102 4-978-715-01 WINDOW (3-CD)
103 4-962-708-11 EMBLEM (4-A), SONY
104 4-930-336-61 FOOT (FELT)
105 4-978-723-01 BUTTON (POWER)(BLACK)
105 4-989-282-01 BUTTON (POWER)(SILVER)
106 X-4946-703-1 BUTTON (3-CD) ASSY
107 X-4946-716-1 BUTTON (ENTER/NEXT) ASSY (BLACK)
107 X-4948-252-1 BUTTON (ENTER/NEXT) ASSY (SILVER)
108 X-4946-698-1 BUTTON (CD-PLAY) ASSY (BLACK)
108 X-4948-251-1 BUTTON (CD-PLAY) ASSY (SILVER)
109 X-4948-139-1 BUTTON (T/B) ASSY (BLACK)
Ref. No. Part No. Description Remark
109 X-4948-246-1 BUTTON (T/B) ASSY (SILVER)
110 4-978-739-01 INDICATOR (CLIP)
111 4-978-742-01 HOLDER (MULTI), LED
112 X-4948-138-1 PANEL ASSY, FRONT (BLACK)
112 X-4948-242-1 PANEL ASSY, FRONT (SILVER)
113 4-978-824-21 BUTTON (MULTI)(SILVER)
113 4-978-824-01 BUTTON (MULTI)(BLACK)
114 4-989-402-11 PLATE (MULTI), ORNAMENTAL (SILVER)
114 4-989-402-01 PLATE (MULTI), ORNAMENTAL (BLACK)
115 4-978-828-01 KNOB, CURSOR
116 4-978-858-01 PLATE, CURSOL ORNAMENTAL
117 4-958-595-01 SPRING, COMPRESSION
7-3. FRONT PANEL SECTION 2
114
110
105
106
117
108
103
116
not supplied
113
111
109
115
107
101
102
104
112
