Sony HCD-GR3 - 7-6. CD Mechanism Section 2 Exploded View

— 64 —

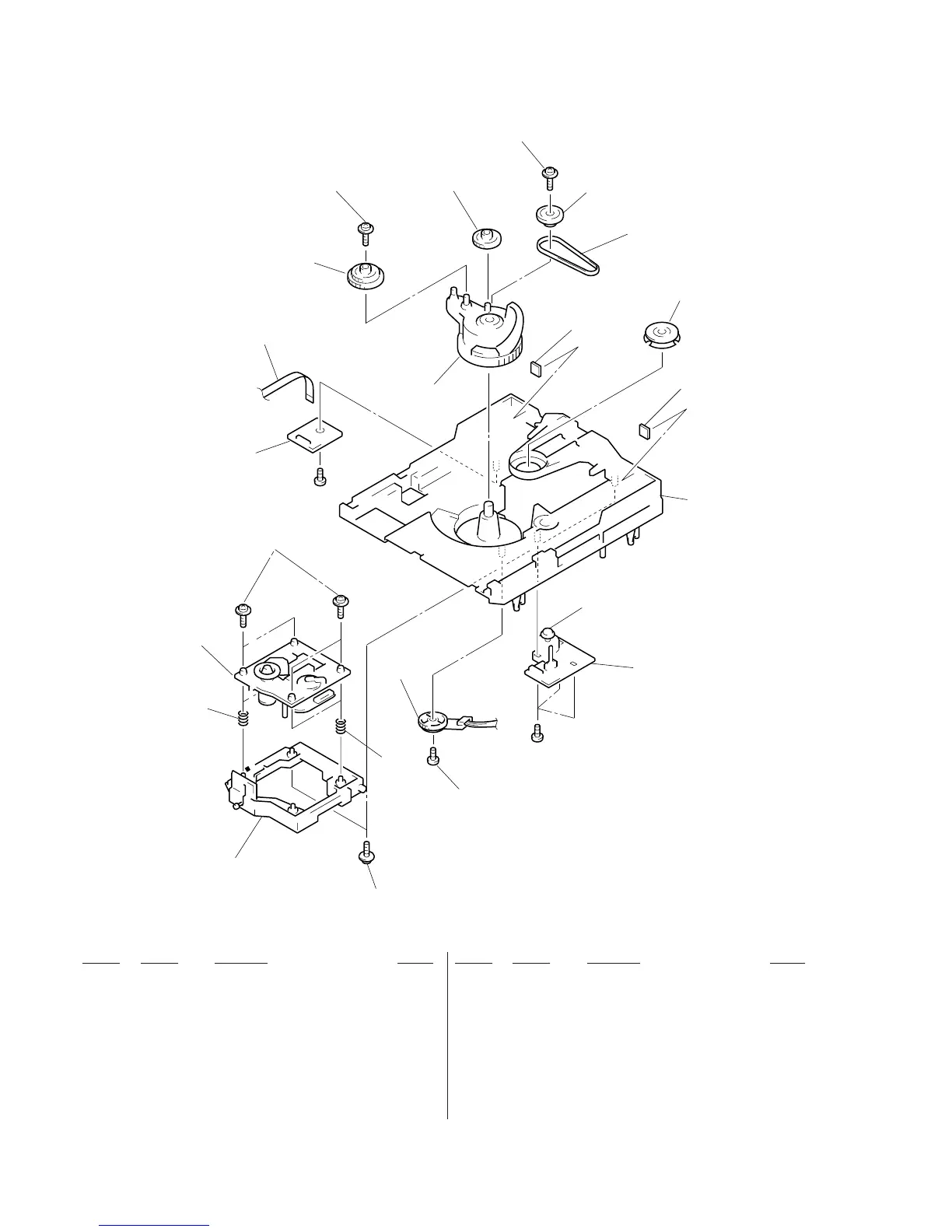

7-6. CD MECHANISM SECTION 2 (CDM38-5BD19)
252
257
256
not supplied
not supplied
260
261
BU-5BD19
263
265
S811
#1
251
253
251
254
258
259
#1
255
M801
251
263
264
262
251 4-917-583-71 BRACKET, YOKE
252 4-977-954-01 PULLEY (SL)
253 4-977-953-01 GEAR (SL-A)
254 4-977-955-01 GEAR (SL-B)
255 4-977-942-01 BELT (SL) (1.4)
256 X-4946-667-1 CAM ASSY, BU
257 1-452-538-11 MAGNET
258 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)
* 259 1-658-575-11 CONNECTOR BOARD
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 260 X-4946-668-1 CHASSIS (CDM) ASSY
261 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
* 262 1-658-578-11 MOTOR (SLIDE) BOARD
263 4-982-447-01 SPRING (BU), COMPRESSION
264 4-951-620-41 SCREW (2.6), +BVTP
* 265 X-4946-666-1 HOLDER (BU) ASSY
M801 A-4672-004-A MOTOR ASSY (SLIDE)
S811 1-473-335-11 ENCODER, ROTARY (BU, TRAY ADDRESS DET)
