Sony HCD-GT22 - Disassembly - Case and Lid Removal; Removing Side and Top Cases

HCD-GT22/GT44/GT55
8
Note: Follow the disassembly procedure in the numerical order given.

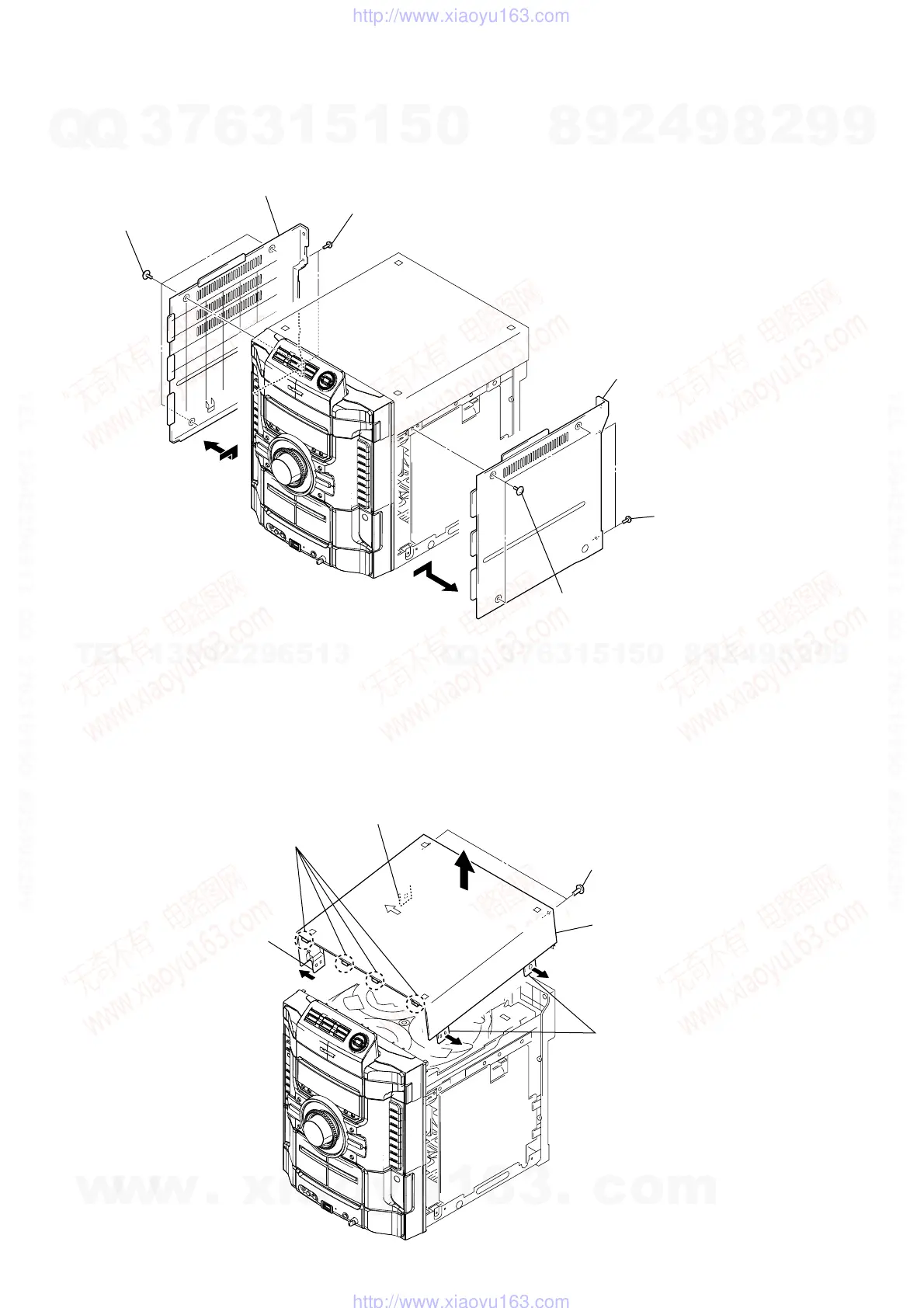

3-2. CASE (SIDE-L), CASE (SIDE-R)
4 three screws
(case 3 TP2)
1 three screws
(case 3 TP2)
5 two screws
(BVTP3
× 10)
2 two screws
(BVTP3
× 10)
3 case (side-L)
6 case (side-R)
3-3. CASE (TOP)
1 two screws
(BVTP3
× 10)
3
2 Open the case (top).
2 Open the case (top).
2 Open the case (top).
5 case (top)
4 four claws
