63
HCD-GT111/GT222/GT444/GT555
1
1
2
3
#2
#2
#2
top panel section
loading panel section
#2
#2

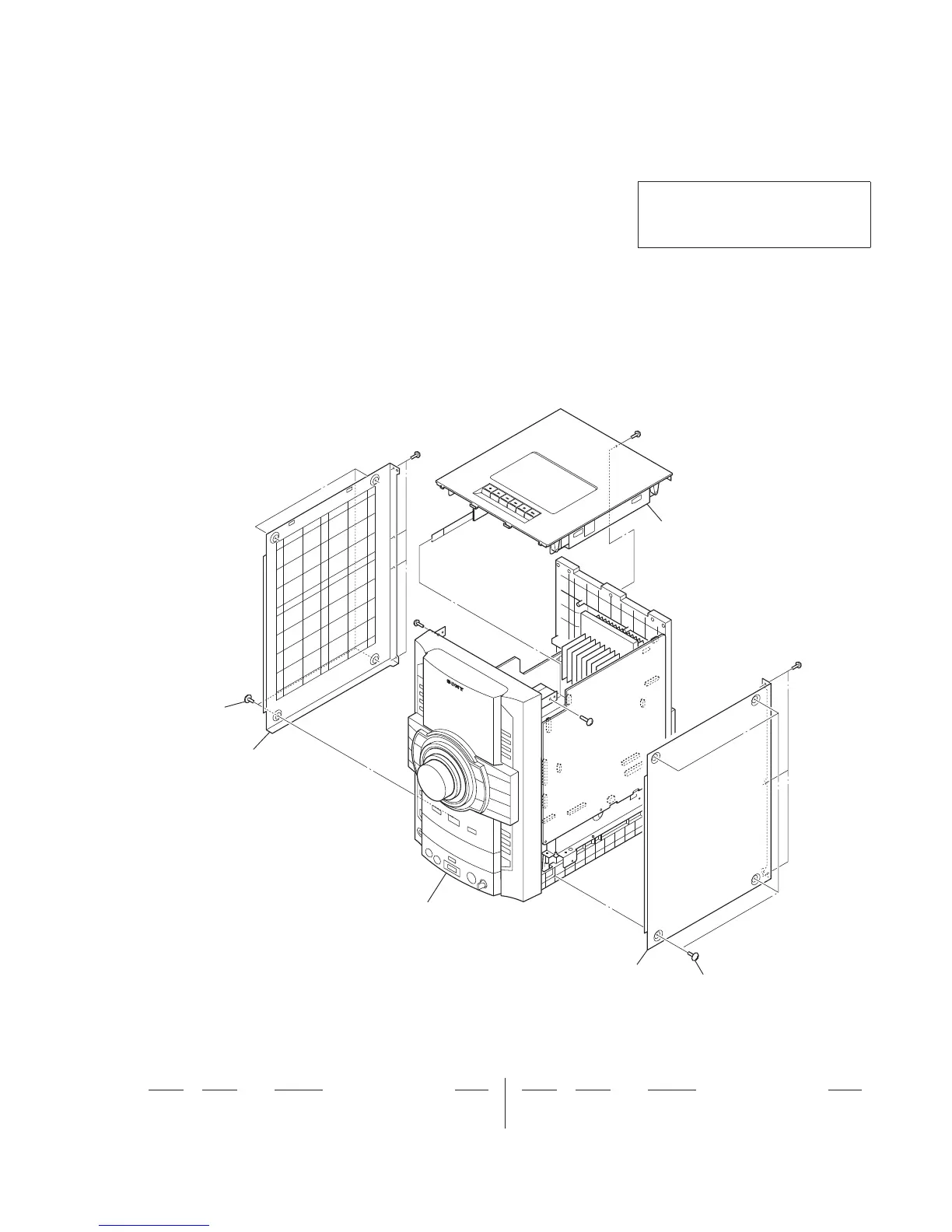

SECTION 8
EXPLODED VIEWS
1 3-363-099-32 SCREW (CASE 3 TP2)
2 3-283-219-01 CASE, SIDE-R
3 3-283-218-01 CASE, SIDE-L
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts of Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
8-1. CASE SECTION
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
To Next Page
