– 65 –
Ref. No. Part No. Description Remark
1 3-363-099-01 SCREW (CASE 3 TP2)
* 2 4-941-548-01 LABEL, CLASS (1) (EXCEPT UK, MX)
3 3-703-244-11 BUSHING (2104), CORD
(AEP, G, IT, UK, MY, SP, AUS)
3 3-703-571-00 BUSHING (S) (4516), CORD (E,MX,EA,HK,AR)
* 4 1-660-718-11 TRANS BOARD
5 4-977-370-41 PLATE, TOP
6 1-773-052-11 WIRE (FLAT TYPE) (17 CORE)
* 7 A-4390-033-A AMP BOARD, COMPLETE (AEP, G, IT)
* 7 A-4390-041-A AMP BOARD, COMPLETE (UK)
* 7 A-4390-047-A AMP BOARD, COMPLETE (E, EA, HK, AR, AUS)
* 7 A-4390-054-A AMP BOARD, COMPLETE (MY, SP)
* 7 A-4390-059-A AMP BOARD, COMPLETE (MX)
* 8 A-4390-034-A PS BOARD, COMPLETE (AEP, G, IT)
* 8 A-4390-042-A PS BOARD, COMPLETE (UK)
* 8 A-4390-048-A PS BOARD, COMPLETE (E, EA, HK, AR, AUS)
* 8 A-4390-055-A PS BOARD, COMPLETE (MY, SP)
Ref. No. Part No. Description Remark
* 8 A-4390-060-A PS BOARD, COMPLETE (MX)
9 4-979-267-01 SCREW (3X16) (P) (TIGHT), +BV
10 4-977-369-61 CASE (AEP, G, IT, UK, AUS)
10 4-977-369-71 CASE (E, MY, SP, MX, EA, HK, AR)
11 4-985-131-01 FOOT (FELT)
! 12 1-569-007-11 ADAPTOR, CONVERSION 2P (E3)
! 13 1-569-008-11 ADAPTOR, CONVERSION 2P (MY, SP, EA)
! 14 1-770-019-12 ADAPTOR, CONVERSION PLUG 3P (HK)
! CNP801 1-558-943-41 CORD, POWER (E, MX)
! CNP801 1-575-651-21 CORD, POWER (AEP,G,IT,MY,SP,EA,HK,AR)
! CNP801 1-696-845-11 CORD, POWER (AUS)
! CNP801 1-751-522-11 CORD, POWER (UK)
Q805 8-729-141-83 TRANSISTOR 2SB1375
! T801 1-429-900-11 TRANSFORMER, POWER
(EXCEPT AEP, G, IT, UK)
! T801 1-429-901-11 TRANSFORMER, POWER (AEP, G, IT, UK)
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearrance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list are given in the last of
the electrical parts list.
SECTION 7

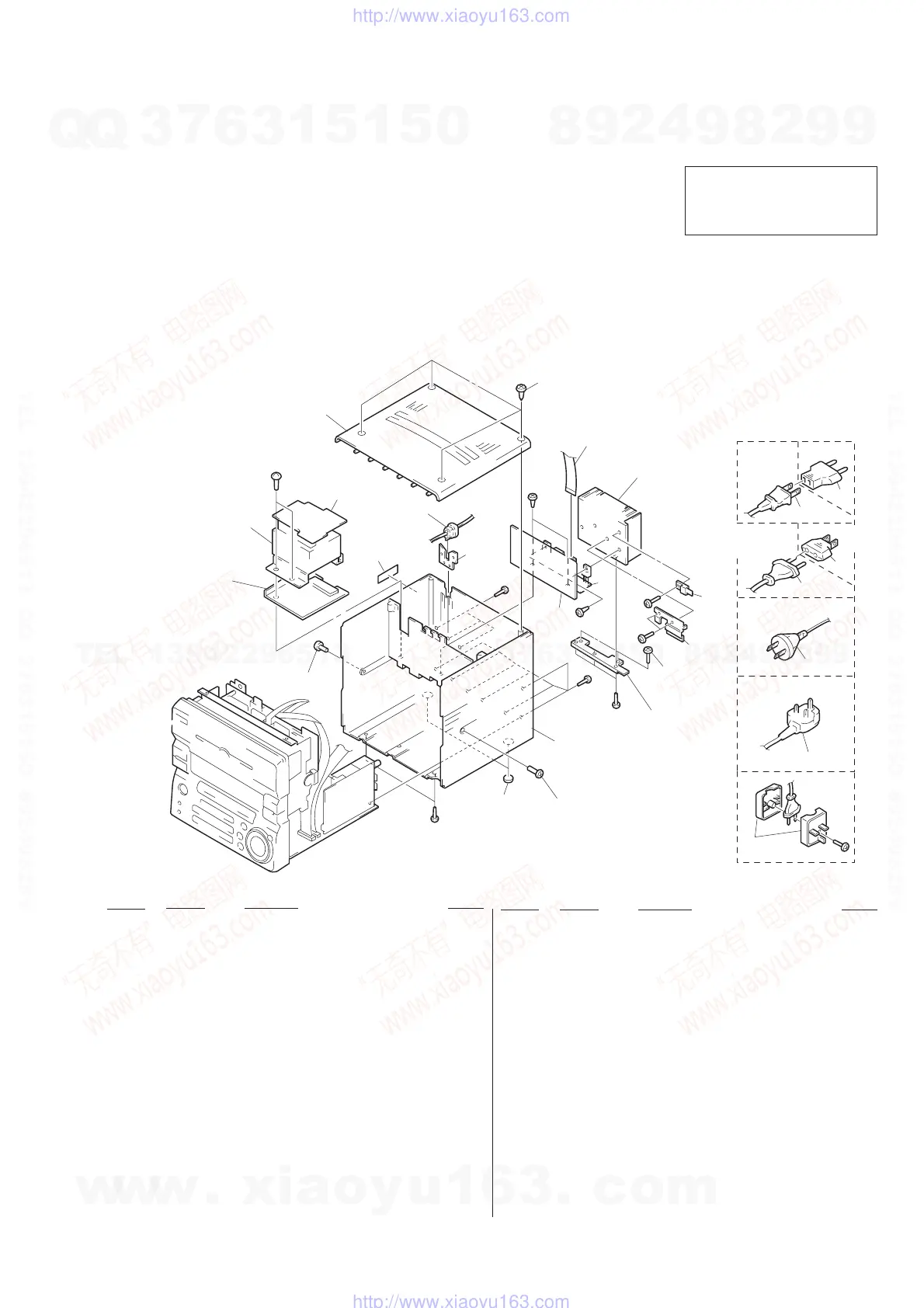

EXPLODED VIEWS
• Abbreviation
G : German IT : Italian MY: Malaysia
SP : Singapore MX : Mexican EA : Sausi Arabia
HK : Hong KongAR : Argentine
AUS
: Australian
E2 : Tuner Section SW BAND do not exist.
E3 : Tuner Section SW BAND exist.
6
not supplied
1
E, MX
E3
CNP801
AEP, G, IT, MY,
SP, EA, HK, AR
12
MY, SP, EA
13
CNP801
AUS
CNP801
UK
CNP801
HK
14
Q805
not
supplied
not
supplied
9
#3
#1
#3
#3
#3
7
8
#3
#1
not
supplied
10
11
1
#1
1
2
4
#2
T801
not supplied
5
3
