– 7 –
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

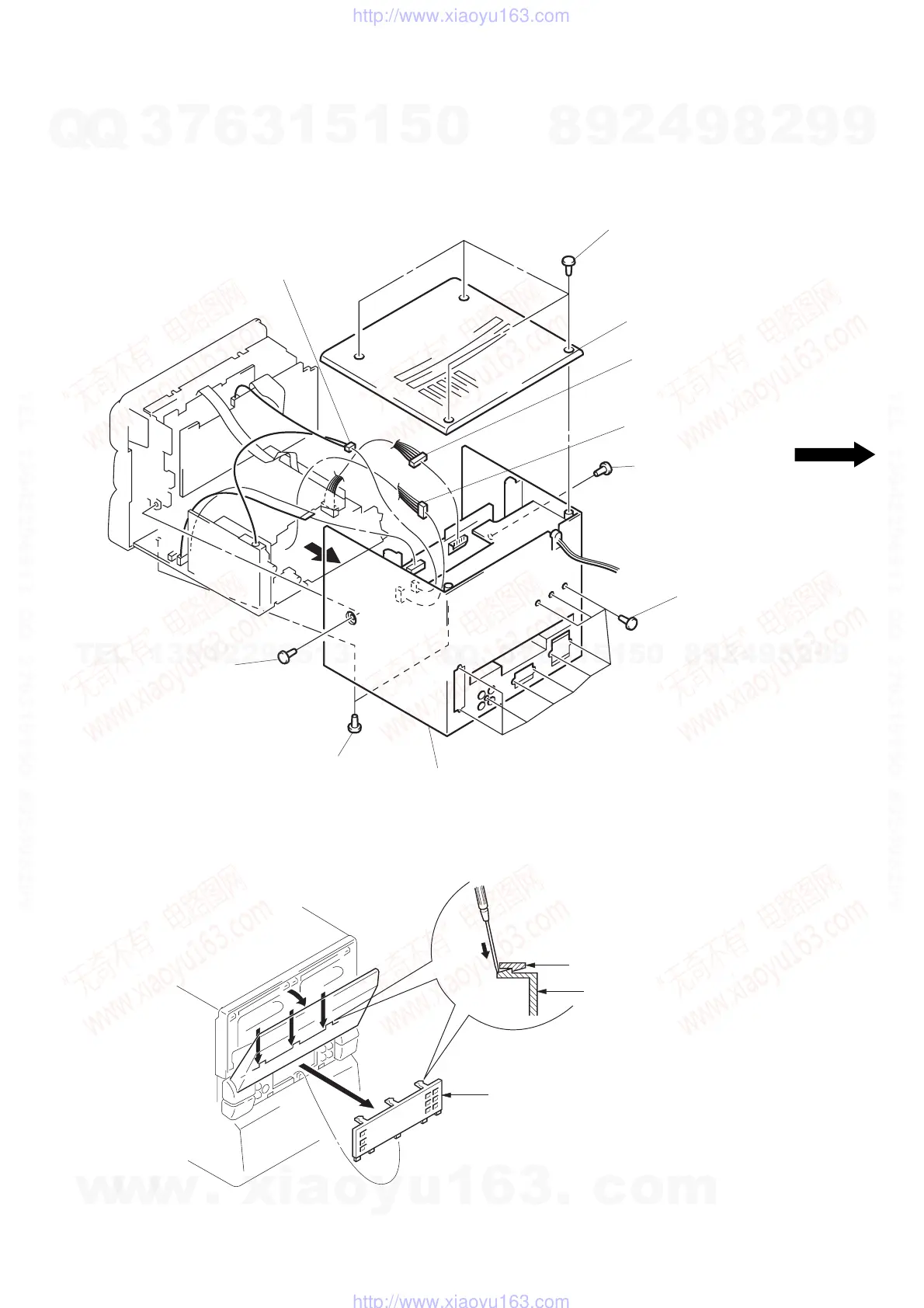

CASE SECTION
• TO ADJUST THE AZIMUTH
2
Front Panel
Window (DIS)
Window (DIS)
1 Open the cassette lid.
2 Press on the window (DIS) clips (3 locations)
with a tool such as a thin screwdriver and
remove the window (DIS).
1 four screws
(case 3 TP2)
2 top plate
3 connector
(CN803)
3 connector
(CN801)
4 screw
(case 3 TP 2)
6 ten screws
(BVTP3
× 10)
7 case section
5 two screws
(BVTP 3
× 10)
4 screw
(case 3 TP2)
3 connector
(CN805)
1
