– 71 –
The components identified by mark ! or
dotted line with mark ! are critical for
safety.
Replace only with part number specified.

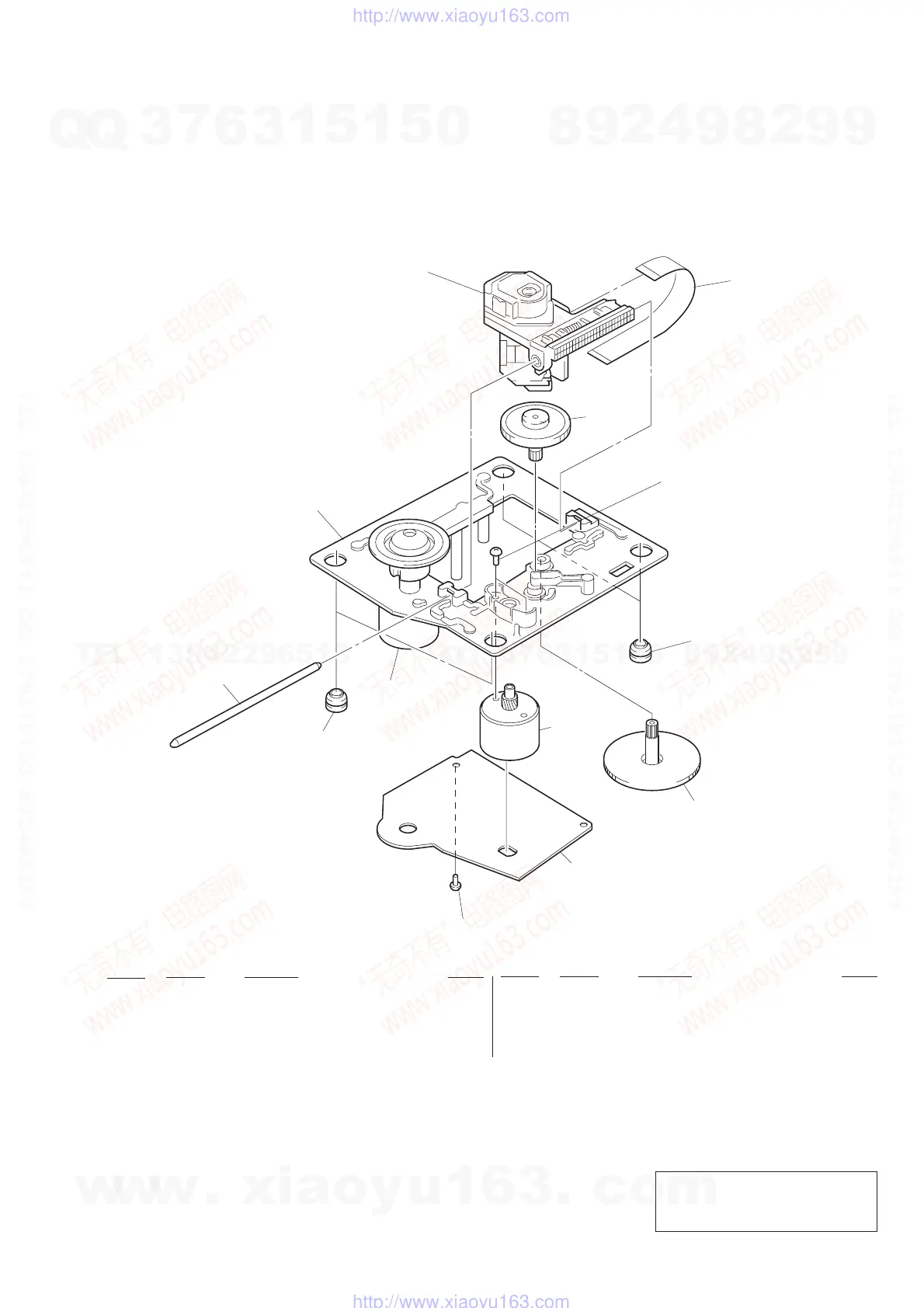

(7) OPTICAL PICK-UP SECTION
(BU-5BD19)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 4-951-940-01 INSULATOR (BU)
302 4-917-565-01 SHAFT, SLED
303 4-917-567-01 GEAR (M)
! 304 8-848-387-01 OPTICAL PICK-UP KSS-213BA/S-N
305 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
306 4-917-564-01 GEAR (P), FLATNESS
* 307 A-4673-402-A BD BOARD, COMPLETE
308 4-951-620-01 SCREW (2.6X8), +BVTP
M101 X-4917-504-1 MOTOR ASSY (SLED)
M102 X-4917-523-4 MOTOR ASSY (SPINDLE)
