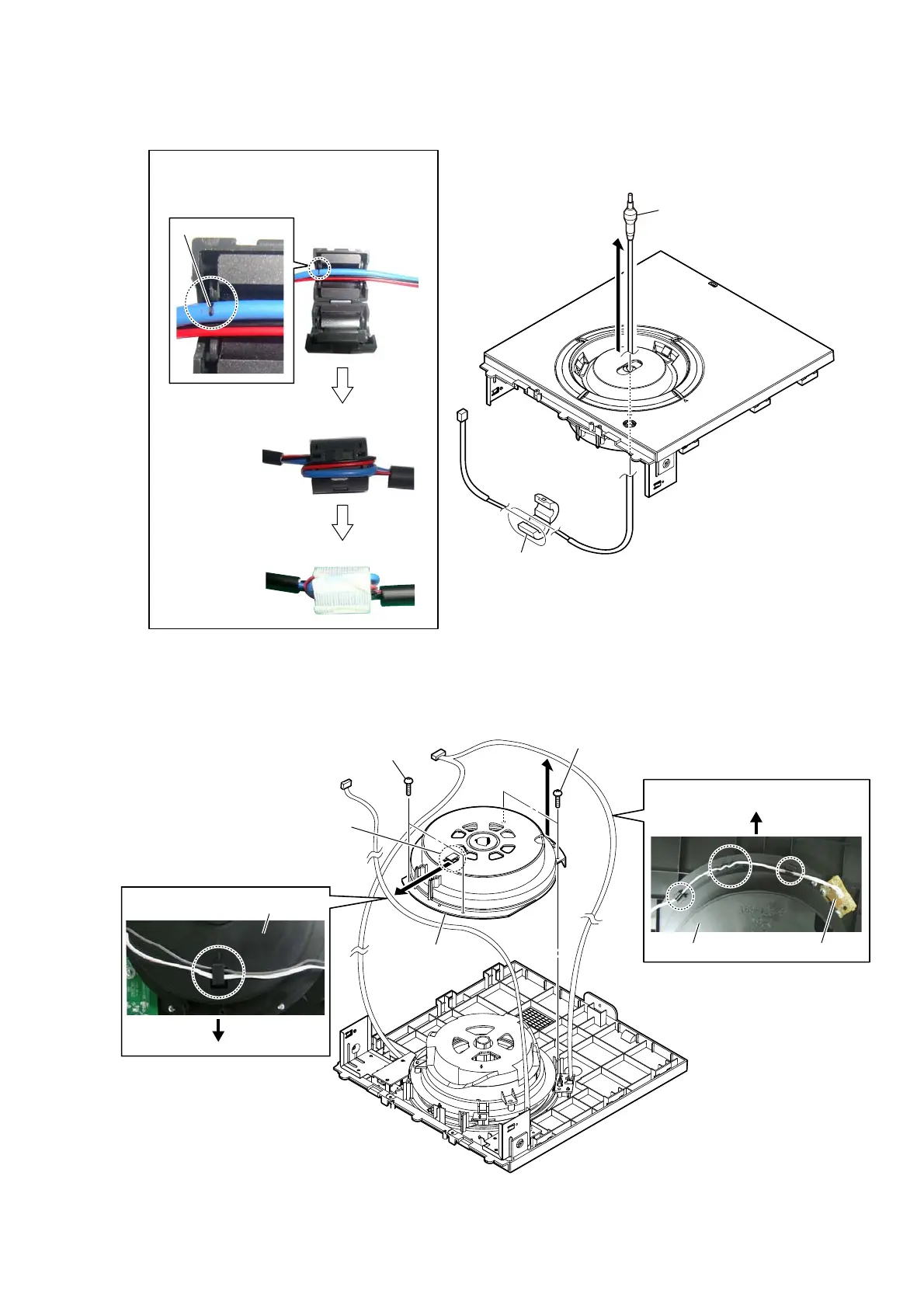

2-4. CORD (WITH PLUG) (J1)
2-5. BASE PLATE
1 clamp filter
1 Set marking of the cord (with plug) (J1)
to the position of figure.
2 Roll the code (with plug) (J1) once at
filter clamp.
3 Paste the tape as shown in figure.
marking
3 cord (with plug) (J1)
2
&ODPSILOWHUVHWWLQJ
– Bottom view –
1
1
2 two screws
(BVTP 2.6 (3CR))
2 two screws
(BVTP 2.6 (3CR))
3 base plate
base plate
rear side
 :iUe VettiQJ
 :iUe VettiQJ
base plate JUNC board
Note:
When you install the base plate, install it
so that the hook may become front side.
front side
