HCD-PZ1D
27

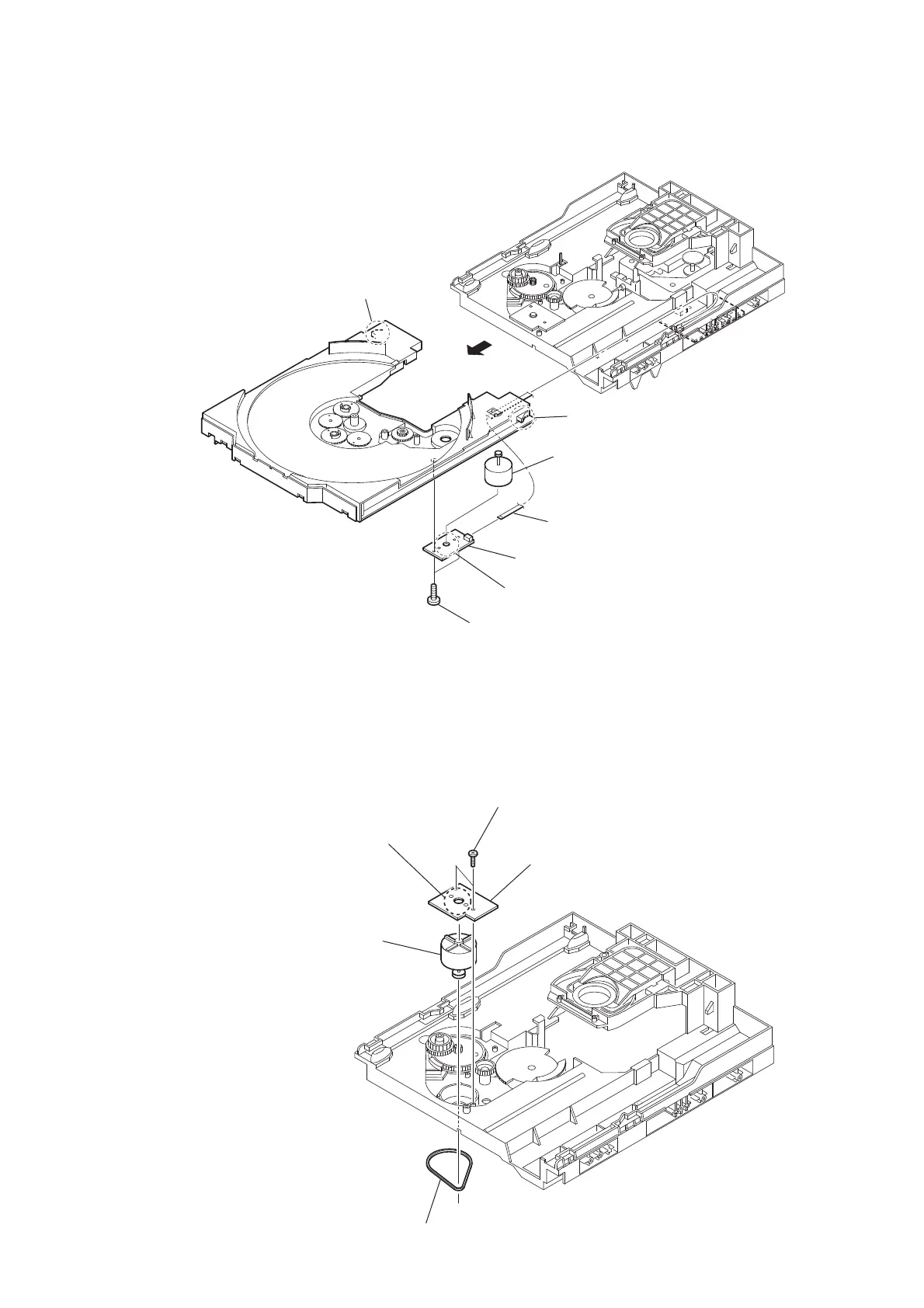

2-29. MOTOR (TB) BOARD
2-30. MOTOR (LD) BOARD
6 Remove the two solderings of motor.
8 MOTOR (TB) board
7 t able motor assy (M741)
5 two screws
(BTTP (M2.6))
4
3
wire (flat type) (5 core) (CN742)
1 stopper
2 stopper
3 Remove the two solderings of motor.
5 MOTOR (LD) board
1 b elt (loading)
4 l oading motor assy (M751)
2 two screws
(BTTP (M2.6))
