Sony HCD-PZ1D - LCD Section

84
HCD-PZ1D

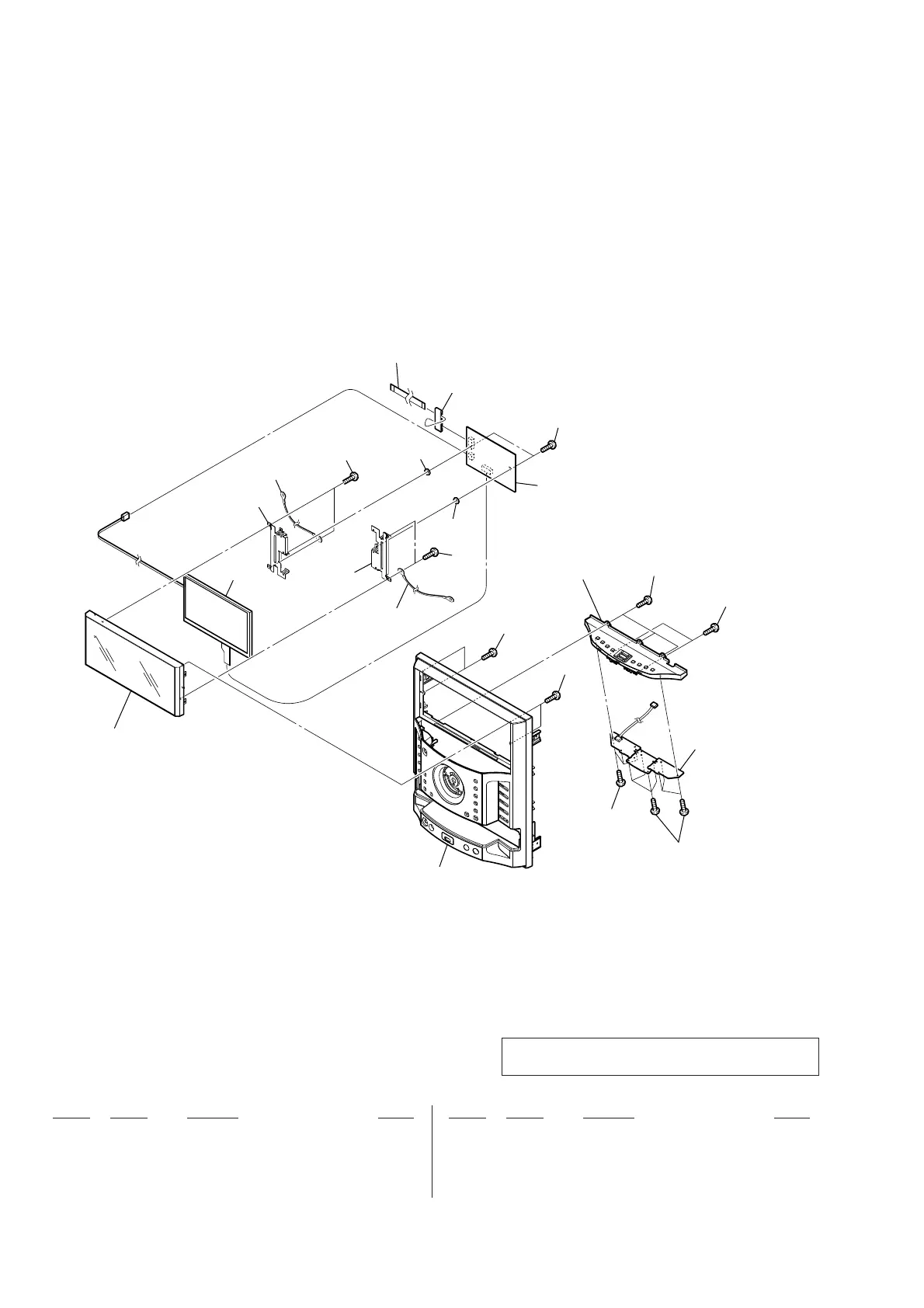

6-5. LCD SECTION
201 A-1814-062-A FRONT PANEL ASSY SERVICE
202 A-1821-349-A PANEL LCD, SUB ASSY
203 4-949-302-51 WASHER
204 3-087-053-01 +BVTP2.6 (3CR)
205 1-828-950-51 WIRE (FLAT TYPE) (7 CORE)
206 1-457-413-11 CORE, FERRITE
207 A-1814-057-A LCD CTRL BOARD, COMPLETE
208 X-2581-064-1 CURSOR STAGE ASSY
LCD101 1-489-676-11 LCD MODULE
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
201
202
204
204
204
204
203
204
204
204
204
204
205
206
207
208
not supplied
not supplied
not
supplied
not supplied
(CENTER board)
LCD101
203
not supplied
