Sony HCD-PZ1D - FRONT Board; LCD CTRL Board

HCD-PZ1D
17

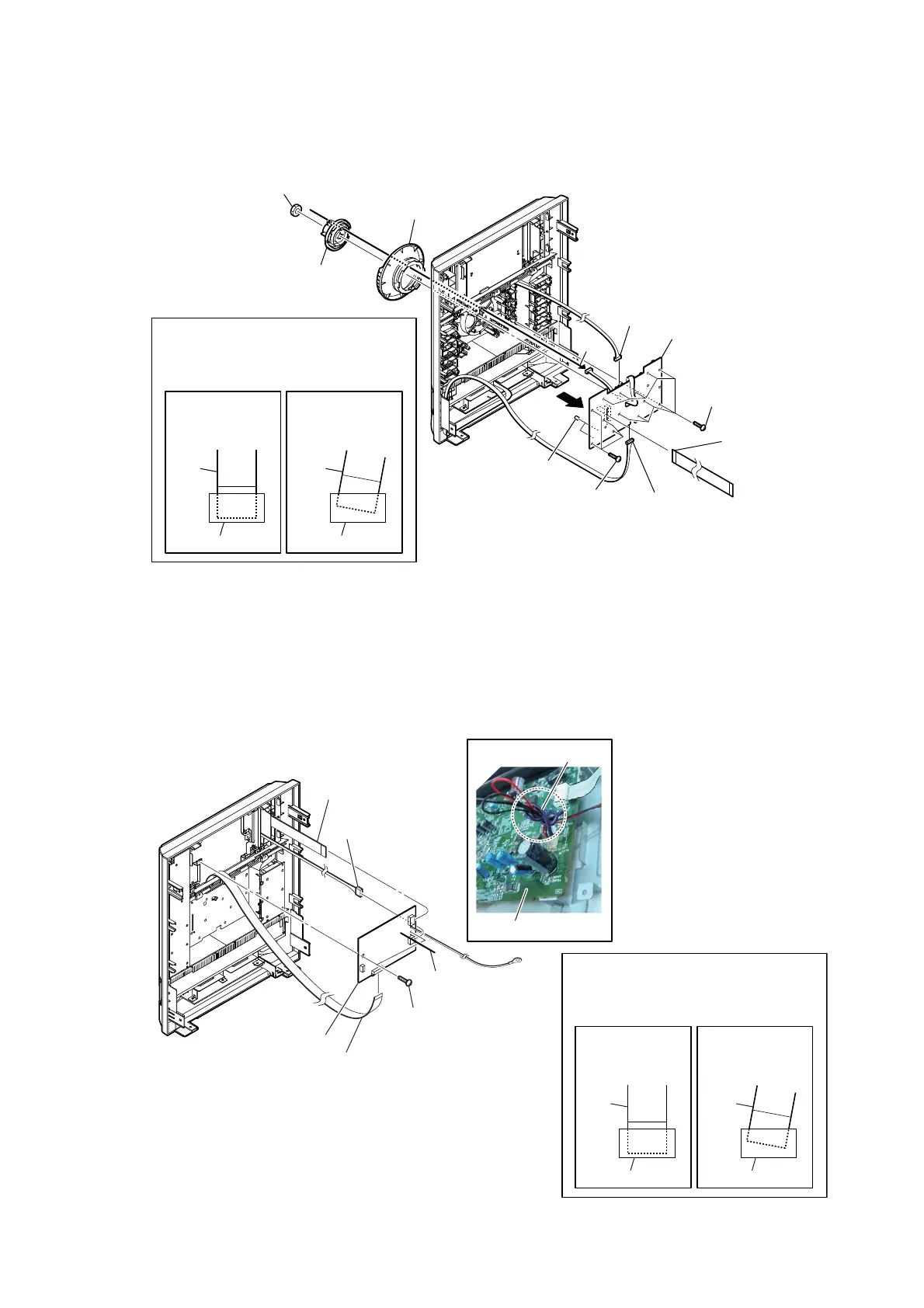

2-14. FRONT BOARD
2-15. LCD CTRL BOARD
qa FRONT board
1 nut
6 connector
(CN806)
7 connector
(CN803)
9 flexible flat cable
(21 core)
(CN801)
3 knob (JOG)
2 holder (knob) with
spring (knob)
4 four screws
(BVTP 2.6 (3CR))
0 two caps (LED)
4 nine screws
(BVTP 2.6 (3CR))
5
8
– Inner view –
Insert is straight
to the interior.
connector
Insert is incline
flexible
cable
connector
flexible
cable
OK NG
Note:
When you install the flat cable, please
install them correctly.
There is a possibility that this machine
damages when not correctly installing it.
1 Lift up the lead pin.
4 LCD flexible board
(CN003)
6 LCD CTRL board
LCD CTRL board
2 connector
(CN004)
3 wire (flat type) (7 core)
(CN005)
5 two screws
(BVTP 2.6 (3CR))
:LUHVHWWLQJ
Insert is straight
to the interior.
connector
Insert is incline
flexible
cable
connector
flexible
cable
OK NG
Note:
When you install the flat cable, please
install them correctly.
There is a possibility that this machine
damages when not correctly installing it.
–,QQHUYLHZ–
lead pin
