Sony HCD-RV2 - Key Board

13
HCD-RV2/RV5/RV6

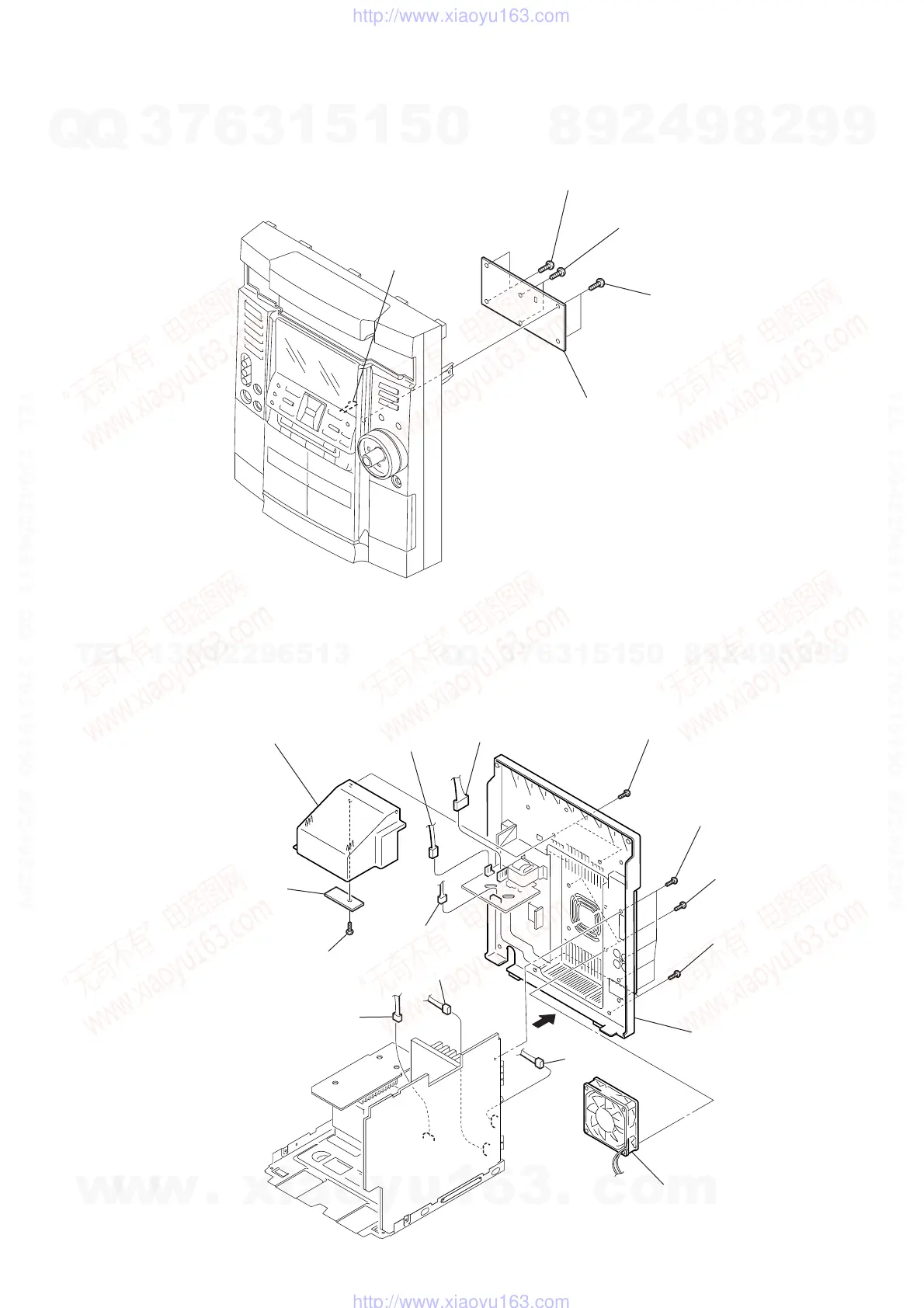

3-7. KEY BOARD
3-8. SENSOR BOARD, DC FAN (FAN961)
1 two screws
(+BVTP 2.6
× 8)
2 two screws
(+BVTP 2.6
× 8)
3 two screws
(+BVTP 2.6
× 8)
4 KEY board
claw
qs six screws
(+BVTP 3 × 10)
qa two screws
(+BVTT 3 × 6)
qf panel back
qd
qg
two screws
(+BVTP 3 × 16)
7 two screws
(+BVTP 3 × 10)
9 screw
(+BVTP 2.6 × 8)
8 cover (duct)
0 SENSOR board
2 CN2
1 CN901
3 CN903
4 CN504
5 CN304
6 CN305
qh DC fan (FAN961)
