HCD-RV22/R
V55

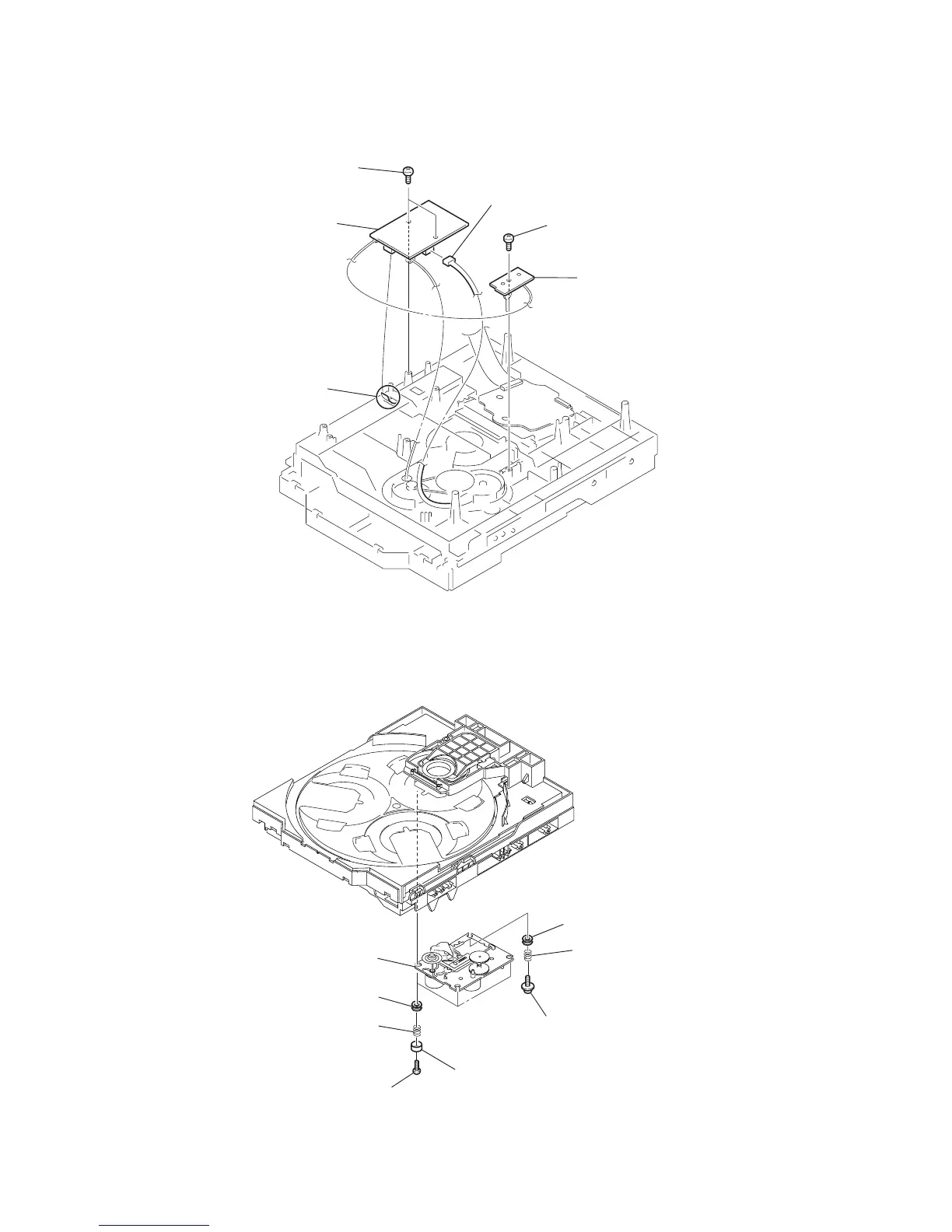

3-13. DRIVER BOARD, SW BOARD
3-14. OPTICAL PICK-UP
1
two
screws
(+BTTP (M2.6))
5
screw
(+BTTP (M2.6))
4
DRIVER
board
3
CN703 (4P)
6
SW board
2
CN702 (5P)
2
coil spring
(insulator)
6
three
coil springs
(insulator)
3
insulator
7
three
insulators
4
three
screws
(BVTT M2.6)
5
three
stoppers (BU)
8
optical pick-up
(BU-K4BD49)
1
floating
screw
(+PTPWH M2.6)
15
17
Table of Contents
Default Chapter
5
Table of Contents
5
1 Service Note
6
Service Position of CD Mechanism Deck
6
Service Position of Amp Board
6
2 General
7
3 Disassembly
9
Case (Top)
9
CD Door
9
Front Panel Section
9
CD Mechanism Deck
9
Tape Mechanism Deck, MIC Board
9
Panel Board
12
Back Panel Section, Sub Trans Board
13
Trans Board
13
Main Board
14
Amp Board
14
BD49 Board
15
VCD Connect Board, VMP43GY Board
15
Driver Board, SW Board
16
Optical Pick-Up
16
Sensor Board
17
Motor (TB) Board
17
Motor (LD) Board
18
4 Test Mode
19
5 Electrical Adjustments
23
6 Diagrams
25
Circuit Boards Location
25
Printed Wiring Board –CD Mechanism Section (1/2)
28
Schematic Diagram -CD Mechanism Section (1/2)
29
Printed Wiring Boards –CD Mechanism Section (2/2)
30
Schematic Diagram -CD Mechanism Section (2/2)
31
Printed Wiring Board -VCD Connect Section
32
Schematic Diagram -VCD Connect Section
32
Printed Wiring Board –VMP Section
33
Schematic Diagram -VMP Section (1/2)
34
Schematic Diagram -VMP Section (2/2)
35
Schematic Diagram -Main Section (1/2)
36
Schematic Diagram -Main Section (2/2)
37
Printed Wiring Board -Main Section
38
Printed Wiring Boards –Panel Section
39
Schematic Diagram -Panel Section (1/2)
40
Schematic Diagram -Panel Section (2/2)
40
Schematic Diagram –Panel Section (2/2)
41
Printed Wiring Boards –Jack Section
42
Schematic Diagram -Jack Section
43
Printed Wiring Board Power Section (1/2) (HCD-RV22)
44
Printed Wiring Boards Power Section (2/2) (HCD-RV22)
45
Schematic Diagram -Power Section (HCD-RV22)
46
Schematic Diagram -Power Section (HCD-RV55)
47
Printed Wiring Board Power Section (1/2) (HCD-RV55)
48
Printed Wiring Boards -Power Section (2/2) (HCD-RV55)
49
IC Block Diagrams
50
7 Exploded Views
60
Main Section
60
Front Panel Section (1)
61
Front Panel Section (2)
62
Front Panel Section (3)
63
Main Board Section
64
CD Mechanism Deck Section (1)
65
CD Mechanism Deck Section -2
65
CD Mechanism Deck Section -3
66
CD Mechanism Deck Section (3)
67
Base Unit Section
68
8 Electrical Parts List
69
Block Diagram -CD Servo Section
87
Block Diagram -Audio/Video CD Section
88
Block Diagram -Main Section
89
Block Diagram -Panel/Power Supply Section
90
