6
HCD-RV22/RV55

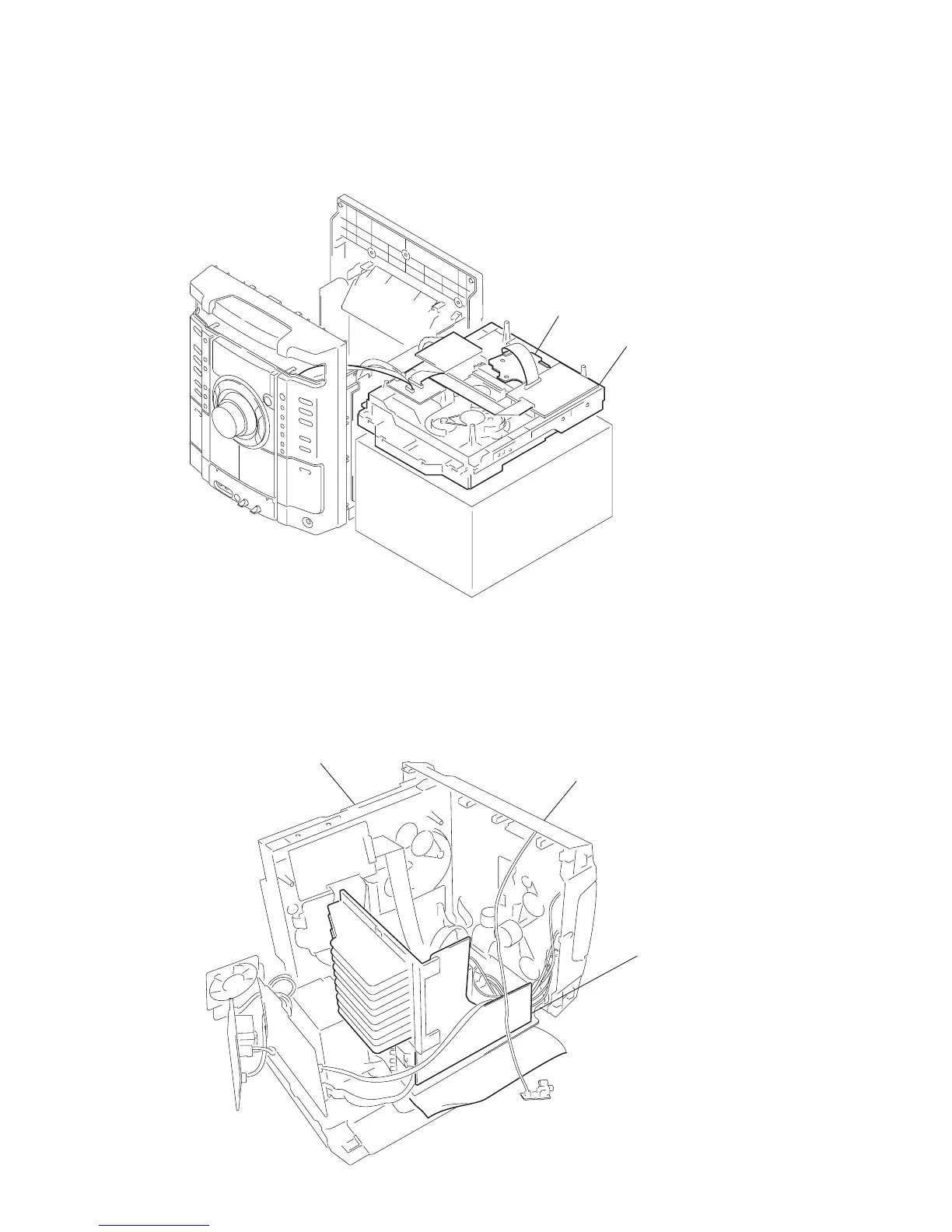

1-2. SERVICE POSITION OF AMP BOARD
1-1. SERVICE POSITION OF CD MECHANISM DECK
SECTION 1
SERVICE NOTE
front panel
CD mechanism deck
AMP boar
d
To inspect the AMP board, turn both of the front panel
and the CD mechanism deck so that the left side of the product faces down.
BD49 board
CD mechanism dec
k
Remove the CD mechanism deck and place it on top of the pedestal as shown.
Inspect the BD49 board in this set up.
