61
HCD-RV660D/RV990D
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
256 A-4733-296-A FRONT AMP BOARD, COMPLETE
(RV990D:EXCEPT TH)
256 A-4733-297-A FRONT AMP BOARD, COMPLETE
(RV660D:EXCEPT TH)
256 A-4747-995-A FRONT AMP BOARD, COMPLETE (RV990D:TH)
256 A-4748-003-A FRONT AMP BOARD, COMPLETE (RV660D:TH)
257 A-4733-299-A SURROUND AMP BOARD, COMPLETE
(RV990D:EXCEPT TH)
257 A-4747-996-A SURROUND AMP BOARD, COMPLETE
(RV990D:TH)
258 3-703-244-00 BUSHING (2104), CORD (EXCEPT E3,E15,MX)
* 258 3-703-571-12 BUSHING (S) (4516), CORD (E3,E15,MX)
0 259 1-690-608-11 CORD, POWER (AUS)
0 259 1-777-071-83 CORD, POWER (E51,EA,PH,SP,MY)
0 259 1-824-818-11 CORD, POWER (WITH CONNECTOR)
(RV990D:TH)
0 259 1-824-828-11 CORD (WITH PLUG) (RV660D:TH)
0 259 1-827-226-11 CORD, POWER (E3,E15,MX)
0 F914 1-533-473-11 FUSE, GLASS TUBE (DIA.5) (T6.3AL/250V)
0 F915 1-533-473-11 FUSE, GLASS TUBE (DIA.5) (T6.3AL/250V)
0 F916 1-533-473-11 FUSE, GLASS TUBE (DIA.5) (T6.3AL/250V)
(RV990D)
0 F917 1-533-473-11 FUSE, GLASS TUBE (DIA.5) (T6.3AL/250V)
(RV990D)
0 F918 1-533-471-11 FUSE, GLASS TUBE (DIA.5) (T4AL/250V)
(RV660D:EXCEPT E15,PH)
0 F918 1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)
(RV660D:E15,PH/RV990D)
0 F919 1-533-471-11 FUSE, GLASS TUBE (DIA.5) (T4AL/250V)
IC201 6-704-107-01 IC STK403-100
IC301 6-600-173-01 IC STK403-240 (RV990D)
IC921 8-759-518-68 IC PQ12RF21
IC922 8-759-701-59 IC NJM78M09FA
IC923 8-759-701-59 IC NJM78M09FA
IC932 6-703-546-01 IC TA7804LS
IC934 8-759-231-53 IC TA7805S
0 T911 1-437-790-12 TRANSFORMER, POWER (RV660D:EA)
0 T911 1-437-797-12 TRANSFORMER, POWER
(RV660D:EXCEPT EA,TH)
0 T911 1-443-089-11 TRANSFORMER, POWER
(RV660D:TH/RV990D:EXCEPT EA,MX)
0 T911 1-443-090-11 TRANSFORMER, POWER (RV990D:EA,MX)
#1 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B)
#6 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT (B)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

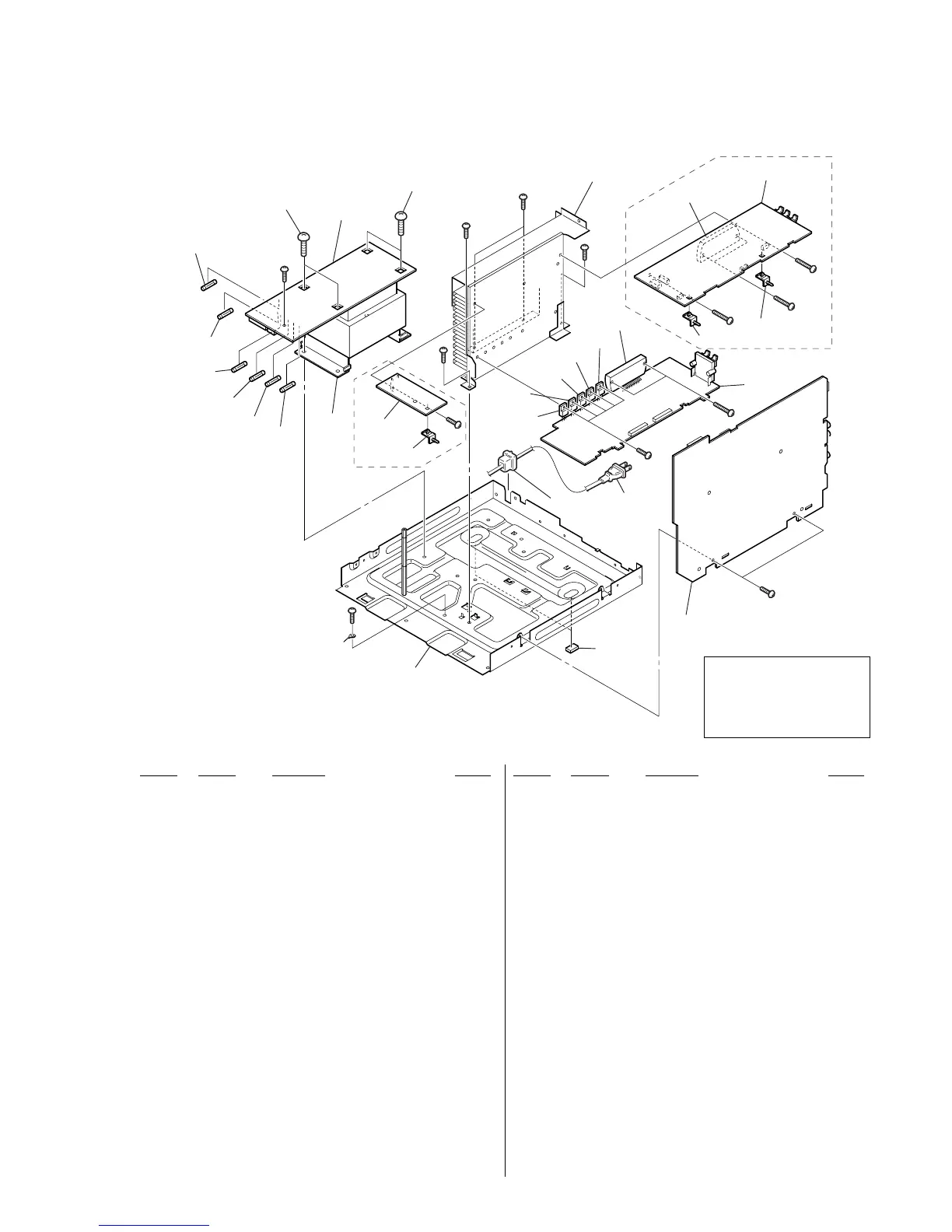

4-7. MAIN BOARD SECTION (2/2)
251
252
253
254
256
255
255
258
257
259
F917
T911
F916
HCD-RV660D
HCD-RV990D
F914
F915
F918
F919
#3
#3
#2
#6
#2
#3
#2
#1
#1
#1
#1
IC201
IC301
IC932
IC934
IC923
IC922
IC921
#2
#2
not supplied
not supplied
not supplied
not supplied
not supplied
Ver 1.1
