HCD-S500/S800
6. TRAY

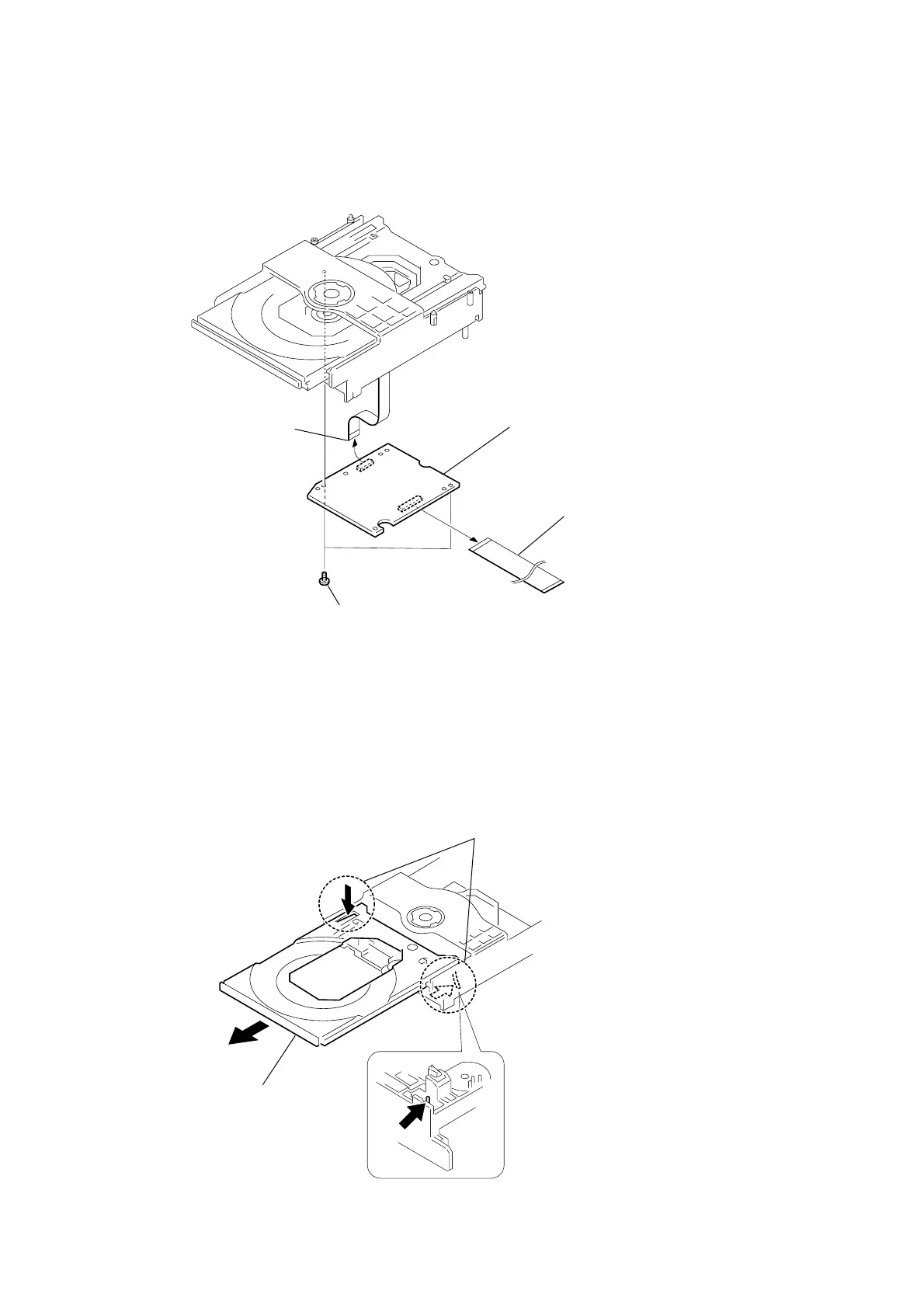

5. RF-240 BOARD
3 Two screws
(+BTP 2.6 × 6)
4 RF-240 board
1 Flexible flat cable (25 core
)
(CN002)
2 Flexible flat cable (26P)
(CN001)
1 While pushing the two protrusions, release the two claws fixing the tray
and pull out the tray in the direction of the arrow
A . (Be carefull of the two claws.
)
2 Tray
A
