Sony HCD-S500 - Printed Wiring Board - Power Section

5353
HCD-S500/S800

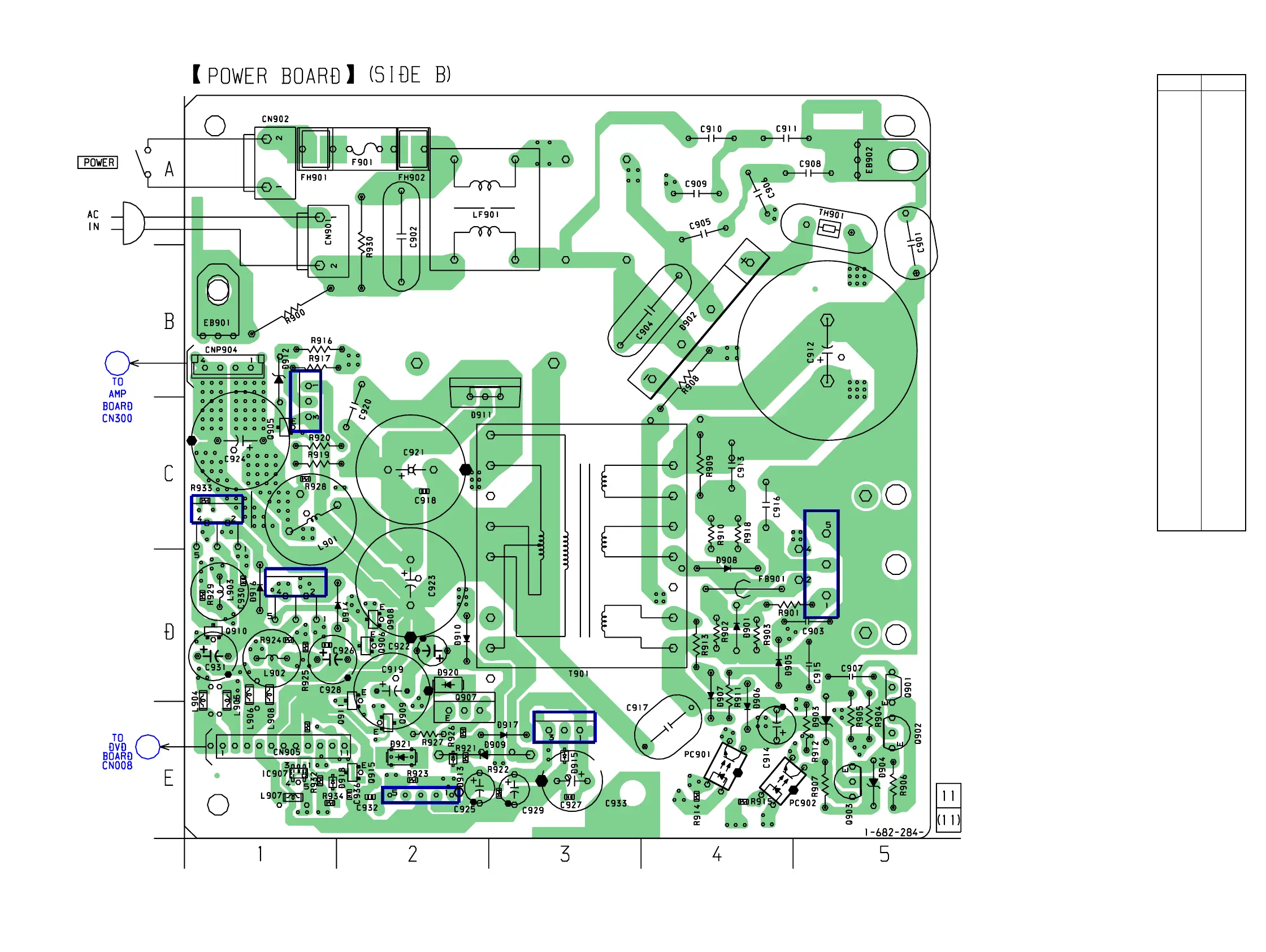

6-26. PRINTED WIRING BOARD – POWER SECTION (2/2) –
IC902
IC901
IC905
IC904
IC903
IC906
J
(Page 42)
H
(Page 31)
S901
E
Ref. No. Location
D901 D-4
D902 B-4
D903 E-5
D904 E-5
D905 D-4
D906 D-4
D907 D-4
D908 D-4
D909 E-2
D910 D-2
D911 B-2
D912 B-1
D913 E-2
D914 D-2
D915 E-3
D916 D-1
D917 E-3
D918 E-1
D920 D-2
D921 E-2
IC901 D-5
IC902 B-1
IC903 D-1
IC904 E-2
IC905 E-3
IC906 C-1
IC907 E-1
Q901 D-5
Q902 E-5
Q903 E-5
Q905 C-1
Q906 D-2
Q907 E-2
Q908 D-2
Q909 E-2
Q910 D-1
Q911 D-2
Q915 E-2
• Semiconductor
Location
