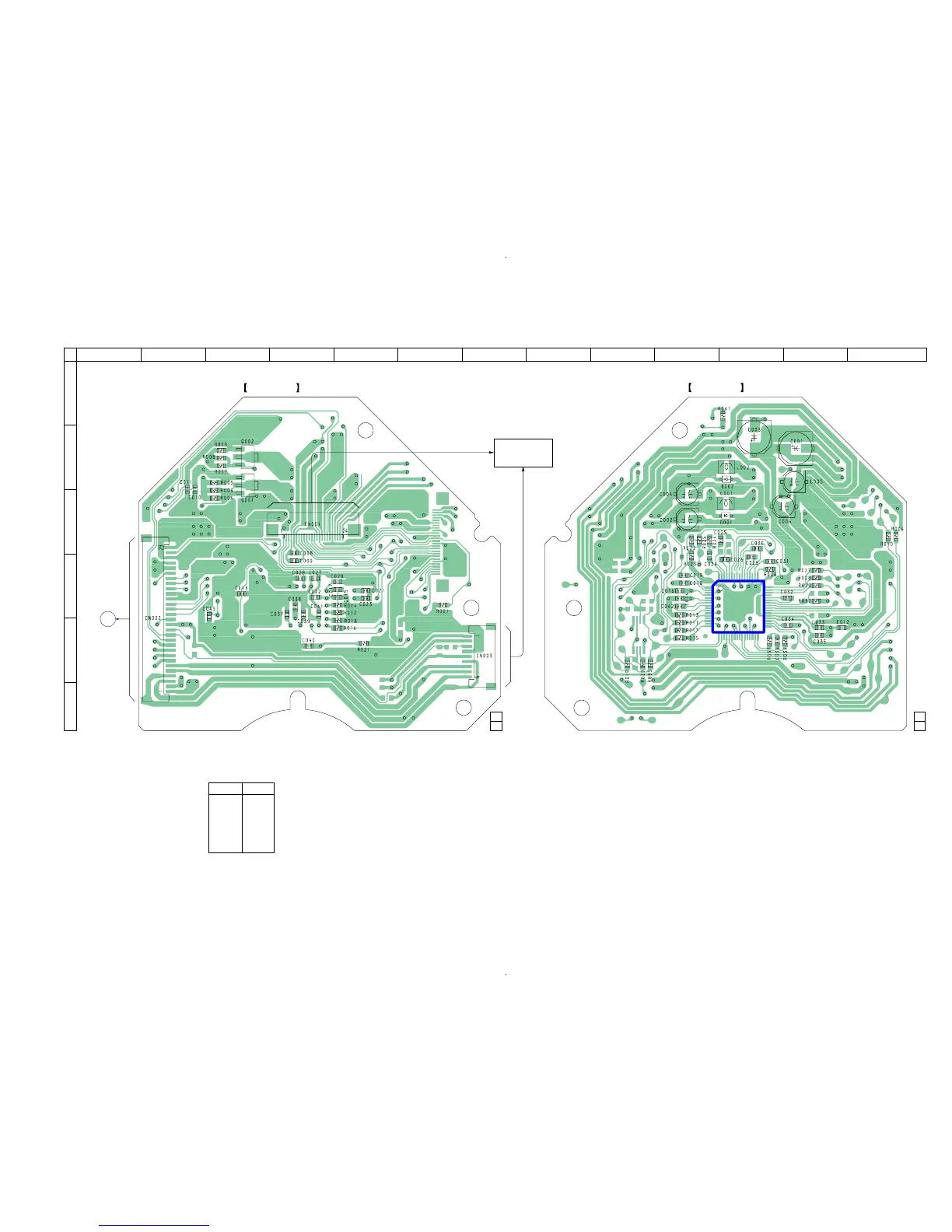

6-3. Printed Wiring Boards – RF Section – • See page 32 for Circuit Boards Location.
(COMPONENT SIDE)
RF BOARD
(CONDUCTOR SIDE)
RF BOARD
IC001
DVD BOARD
CN401
A
E
E
OPTICAL PICK-UP
BLOCK
(DVBU16)
1-684-822-
11
(11)
1-684-822-
11
(11)
1
16
17 32
48
33
64 49
1 2 3 4 5 6 7 8 9 10 11 12 13
A
B
C
D
E
F
(Page 37)
• Semiconductor
Location
Ref. No. Location
D001 C-11
D002 B-11
IC001 D-11
Q001 B-3
Q002 B-3
