Sony HCD-S888 - Front Panel Section, Side Panel (L);(R); I;O Board

HCD-S888
9
Note: Follow the disassembly procedure in the numerical order given.

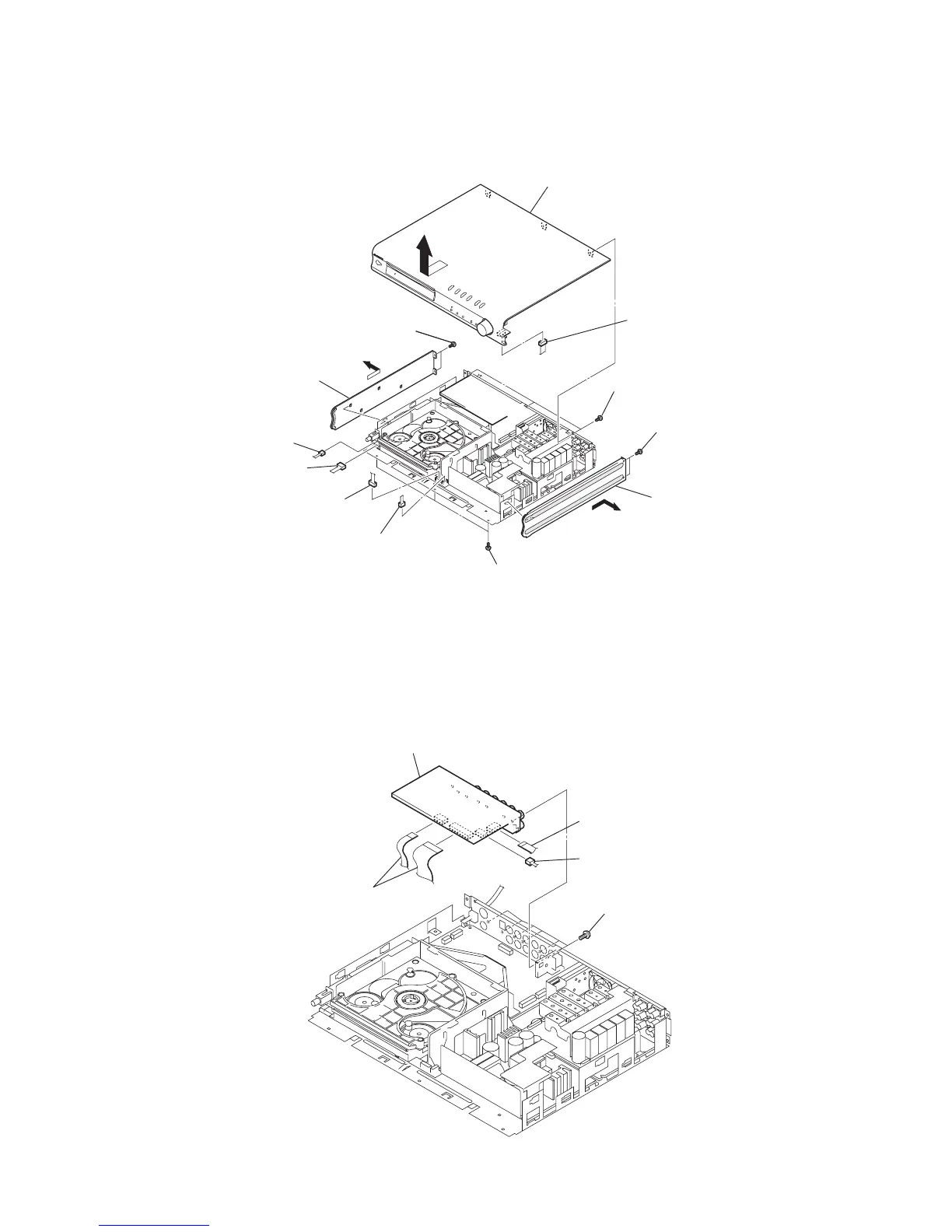

3-2. Front Panel Section, Side Panel (L)/(R)
3-3. I/O Board
9 front panel section
0 two screws
(BVTP3
× 8)
qa side panel (L)
8 connector
(CN803)
7 connector
(CN802)
6 connector
(CN804)
5 connector
(CN805)
3
2 three screws
(BVTP3
× 8)
qd side panel (R)
qs two screws
(BVTP3
× 8)
1 three screws
(BVTP3
× 8)
4 connector (CN900)
1 flexible flat cable
(CN201)
2 connector (CN205
)
5 I/O board
3 two flexible flat cables
(CN202, 203)
4 six screws
(BVTP3 × 8)
