53
HCD-TZ100/TZ200/TZ300
SECTION 6
EXPLODED VIEWS
1 4-121-419-01 CASE (KY)
2 3-363-099-22 SCREW (CASE 3 TP2)
3 3-077-331-21 +BV3 (3-CR)
4 1-828-955-11 WIRE (FLAT TYPE) (9 CORE)
5 3-703-244-00 BUSHING, CORD (2104) (EXCEPT MX,TH)
5 3-703-571-11 BUSHING, CORD (4516) (MX)
5 4-916-783-01 BUSHING, CORD (TH)
0 6 1-829-387-11 CORD, POWER (AR)
0 6 1-834-288-11 CORD, POWER (TH)
0 6 1-834-966-41 POWER-SUPPLY CORD
(EXCEPT MX,AUS,AR,TH)
0 6 1-835-068-21 CORD, POWER (AUS)
0 6 1-835-080-21 CORD, POWER (MX)
0 7 1-569-008-33 ADAPTOR, CONVERSION (E32,AR)
0 8 1-770-019-71 ADAPTOR, CONVERSION PLUG 3P (EA)
9 4-113-420-11 PANEL, LOADING (DSY)
TU4001 1-693-771-22 TUNER (FM) (ANTENNA) (SAF)
TU4001 1-693-780-21 TUNER (FM) (ANTENNA) (EXCEPT SAF)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-682-547-04 SCREW +B 3X6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
AR : Argentina model
AUS : Australian model
E3 : 240V AC area in E model
E12 : 220 – 240V AC area in E model
E32 : 110 – 240V AC area in E model
EA : Saudi Arabia model
MX : Mexican model
PH : Philippines model
SAF : South African model
SP : Singapore model
TH : Thai model

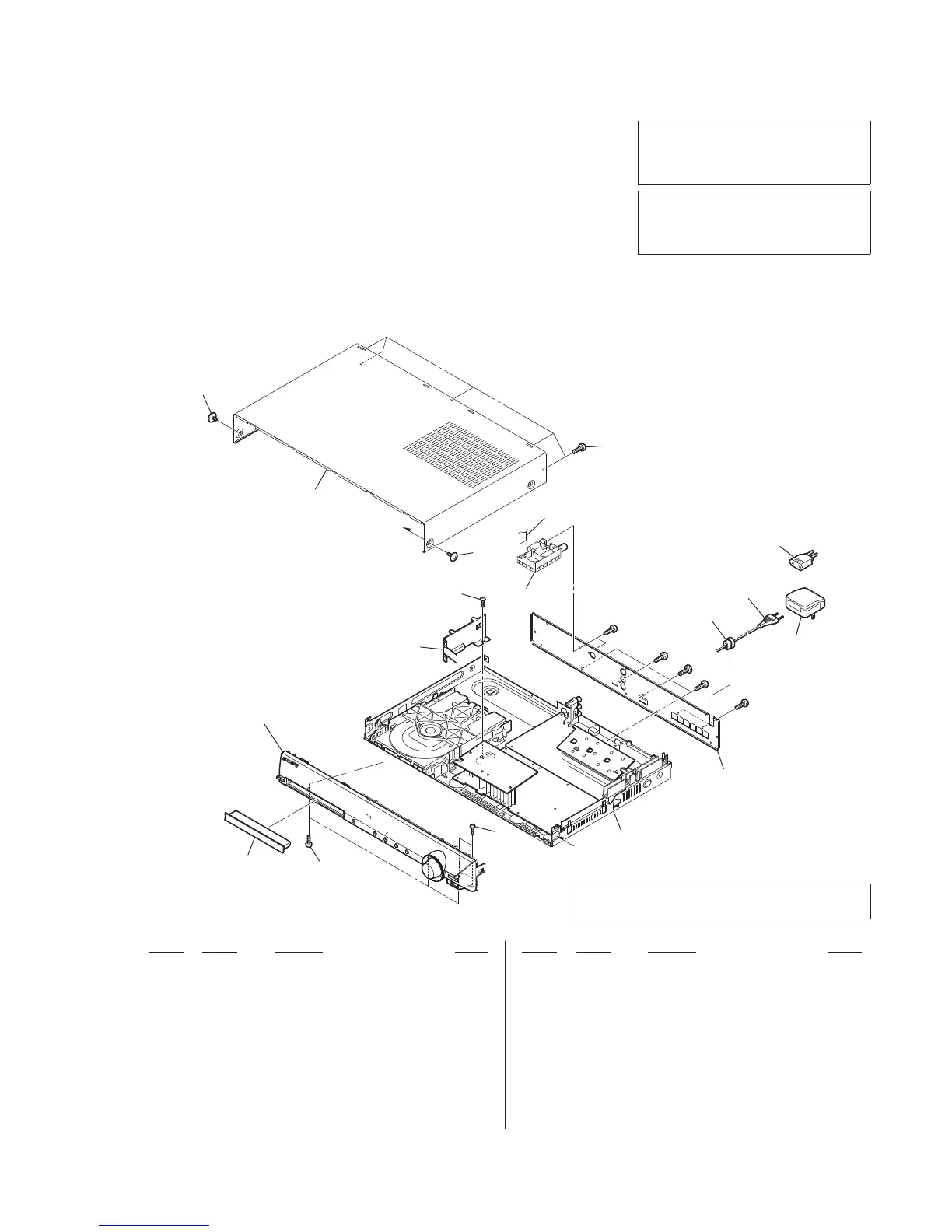

6-1. OVERALL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Note: If the wire (fl at type) was replaced, fold it some as
the wire (fl at type) before replacement.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
2
3
4
5
6
7
8
9
3
3
3
2
1
A
front panel section
#2
#1
#1
#1
#3
not supplied
not supplied
TU4001
A
chassis section
Ver. 1.1
